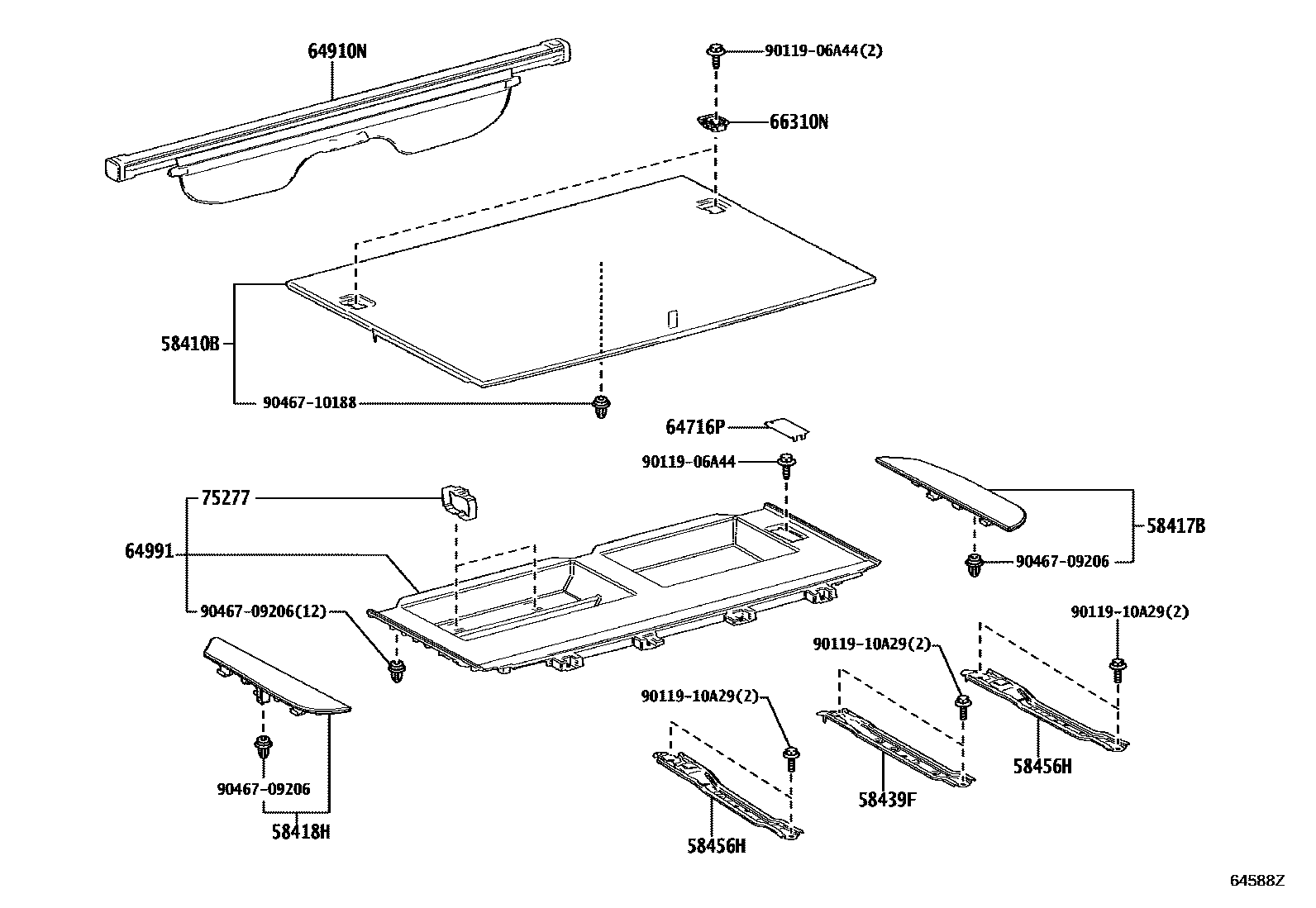

DECK BOARD & DECK TRIM COVER

0001 1W/O(REAR NO.2 SEAT) 0002 1W(REAR NO.2 SEAT)

58410BBOARD ASSY, DECK

main58410-60050-C2iVJA252202402

BLACK,TRIM1#,2#,4#

main58410-60060-C2iVJA252202402

"OVERTRAIL" PACKAGE,BLACK,TRIM1#,2#; "OVERTRAIL+" PACKAGE,BLACK,TRIM1#,2#

58417BBOARD, REAR FLOOR, REAR RH

main58417-60090-C3iVJA252202402

BLACK,TRIM1#,2#,4#

main58417-60100-C2iVJA252202402

"OVERTRAIL" PACKAGE,BLACK,TRIM1#,2#; "OVERTRAIL+" PACKAGE,BLACK,TRIM1#,2#

58418HBOARD, REAR FLOOR, REAR LH

main58418-60050-C3iVJA252202402

BLACK,TRIM1#,2#,4#

main58418-60060-C2iVJA252202402

"OVERTRAIL" PACKAGE,BLACK,TRIM1#,2#; "OVERTRAIL+" PACKAGE,BLACK,TRIM1#,2#

58439FREINFORCEMENT, DECK BOARD BRACKET

main58439-60030iVJA252202402

"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE

58456HBRACKET, DECK FLOOR NO.2

main58456-60030×2iVJA252202402

"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE

64716PCOVER, DECK TRIM, REAR

main64716-60090iVJA252202402

"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE

64910NCOVER ASSY, TONNEAU

main64910-60290iVJA252202402

PACKAGE TRAY TRIM & TONEAU COVER-WITH(TONNEAU COVER)

64991BOX, DECK FLOOR, FRONT

main64991-60030iVJA252202402

"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE

66310NHOOK ASSY, ROPE

main66310-30011-C1×2iVJA252202402

"OVERTRAIL" PACKAGE,BLACK,TRIM1#,2#; "OVERTRAIL+" PACKAGE,BLACK,TRIM1#,2#

75277BAND, TOOL, NO.1

main64279-60030×2iVJA252202402

9011906A44

main90119-06A44

9011910A29

main90119-10A29

9046709206

main90467-09206

9046710188

main90467-10188

14 parts on this diagram · 2 diagrams in section
