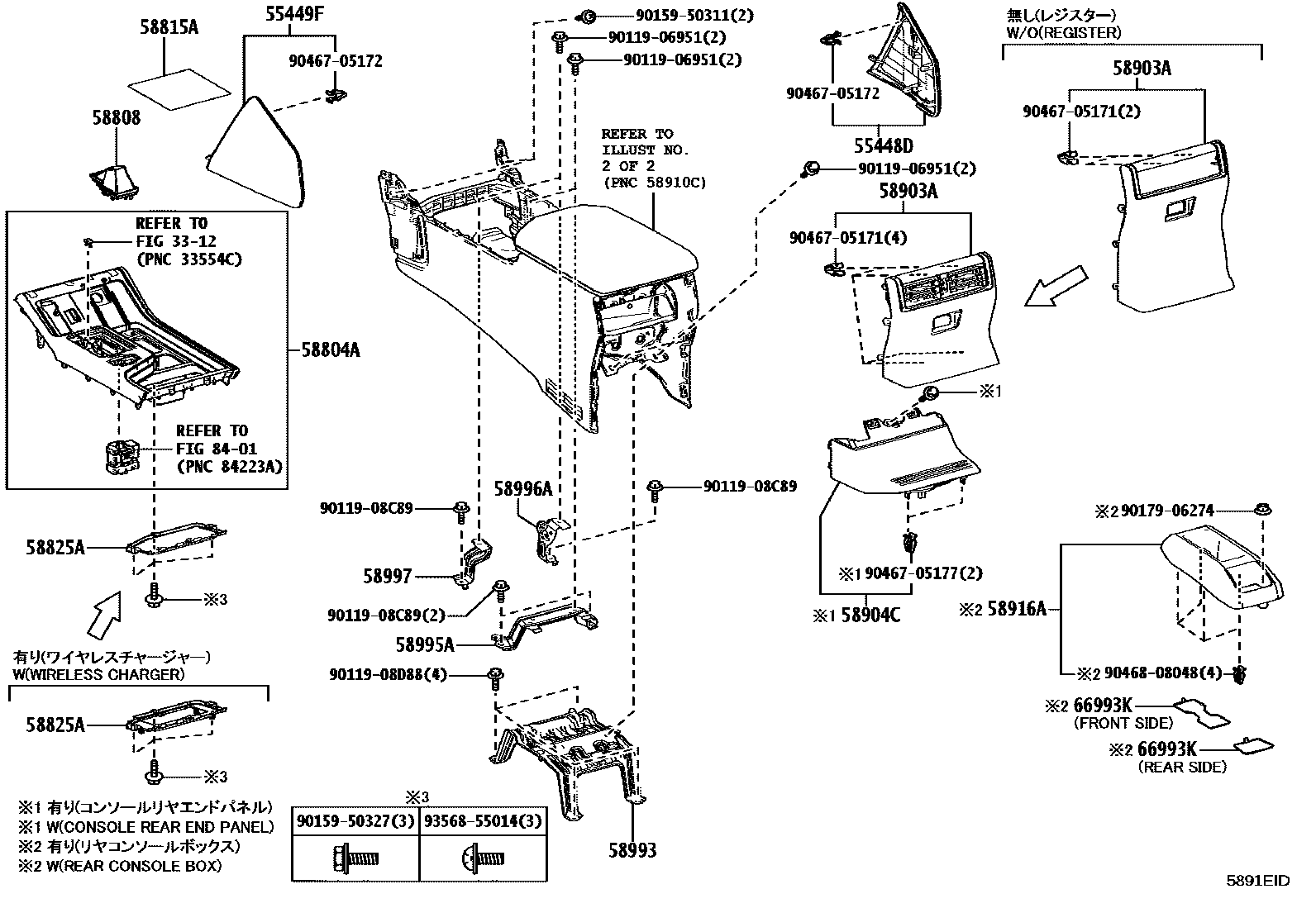

CONSOLE BOX & BRACKET

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

55448DCUSHION, INSTRUMENT PANEL FINISH PANEL, NO.1

main55448-60230-C0i202402

BLACK,TRIM1#,2#,4#

55449FCUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2

main55449-60190-C0i202402

BLACK,TRIM1#,2#,4#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-60P60-C0i202402

"OVERTRAIL" PACKAGE,BLACK/TSUYASUMI,TRIM12,20

main58804-60P60-C1i202402

"OVERTRAIL" PACKAGE,BLACK/OAK DK.BROWN,TRIM13,21

main58804-60P70-C0supersedes 58804-60P50-C0i202402

LUXURY PACKAGE,BLACK/TSUYASUMI,TRIM10,20,40; LUXURY+ PACKAGE,BLACK/TSUYASUMI,TRIM10,20,40; PREMIUM+ PACKAGE,BLACK/TSUYASUMI,TRIM10,20,40

main58804-60P70-C1supersedes 58804-60P50-C1i202402

LUXURY PACKAGE,BLACK/OAK DK.BROWN,TRIM11,21,41; LUXURY+ PACKAGE,BLACK/OAK DK.BROWN,TRIM11,21,41; PREMIUM+ PACKAGE,BLACK/OAK DK.BROWN,TRIM11,21,41

main58804-60P80-C0i202402

"OVERTRAIL+" PACKAGE,BLACK/TSUYASUMI,TRIM12,20

main58804-60P80-C1i202402

"OVERTRAIL+" PACKAGE,BLACK/OAK DK.BROWN,TRIM13,21

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-60640-C0i202402

BLACK,TRIM1#,2#,4#

58815ACARPET, CONSOLE BOX

main58815-60190i202402

58825APOCKET, CONSOLE BOX

main58825-60170supersedes 58825-60160i202402

WIRELESS CHARGER-WITH

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-60A40-C0i202402

"OVERTRAIL" PACKAGE,BLACK,TRIM1#,2#

main58903-60B90-C0i202402

"OVERTRAIL" PACKAGE&REAR CONSOLE BOX-W(COOL BOX),BLACK,TRIM1#,2#

main58903-60C00-C0i202402

"OVERTRAIL+" PACKAGE,BLACK,TRIM1#,2#

main58903-60C70-C0i202402

"OVERTRAIL+" PACKAGE&REAR CONSOLE BOX-W(COOL BOX),BLACK,TRIM1#,2#

main58903-60D20-C0supersedes 58903-60C80-C0i202402

LUXURY PACKAGE,BLACK,TRIM1#,2#,4#; PREMIUM+ PACKAGE,BLACK,TRIM1#,2#,4#

main58903-60D30-C0supersedes 58903-60C80-C0i202402

LUXURY+ PACKAGE&REAR CONSOLE BOX-W(COOL BOX),BLACK,TRIM1#,2#,4#

58904CPANEL SUB-ASSY, CONSOLE REAR END, NO.2

main58904-60180-C0i202402

"OVERTRAIL" PACKAGE&REAR CONSOLE BOX-W(COOL BOX),BLACK,TRIM1#,2#; "OVERTRAIL+" PACKAGE&REAR CONSOLE BOX-W(COOL BOX),BLACK,TRIM1#,2#; LUXURY+ PACKAGE&REAR CONSOLE BOX-W(COOL BOX),BLACK,TRIM1#,2#,4#

58916AINSERT, CONSOLE BOX, REAR

main58916-60170i202402

US CAPTAIN SEAT&LUXURY PACKAGE; US CAPTAIN SEAT&LUXURY+ PACKAGE; US CAPTAIN SEAT&PREMIUM+ PACKAGE

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58993-60110i202402

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-60120i202402

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-60140i202402

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-60120i202402

66993KTRAY, CUP HOLDER

main66993-60020i202402

US CAPTAIN SEAT&LUXURY PACKAGE,FRONT SIDE; US CAPTAIN SEAT&LUXURY+ PACKAGE,FRONT SIDE; US CAPTAIN SEAT&PREMIUM+ PACKAGE,FRONT SIDE

main66993-60030i202402

US CAPTAIN SEAT&LUXURY PACKAGE,REAR SIDE; US CAPTAIN SEAT&LUXURY+ PACKAGE,REAR SIDE; US CAPTAIN SEAT&PREMIUM+ PACKAGE,REAR SIDE

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906951

main90119-06951

9011908C89

main90119-08C89

9011908D88

main90119-08D88

9015950311

main90159-50311

9015950327

main90159-50327

9017906274

main90179-06274

9046705171

main90467-05171

9046705172

main90467-05172

9046705177

main90467-05177

9046808048

main90468-08048

9356855014

main93568-55014

27 parts on this diagram · 4 diagrams in section
