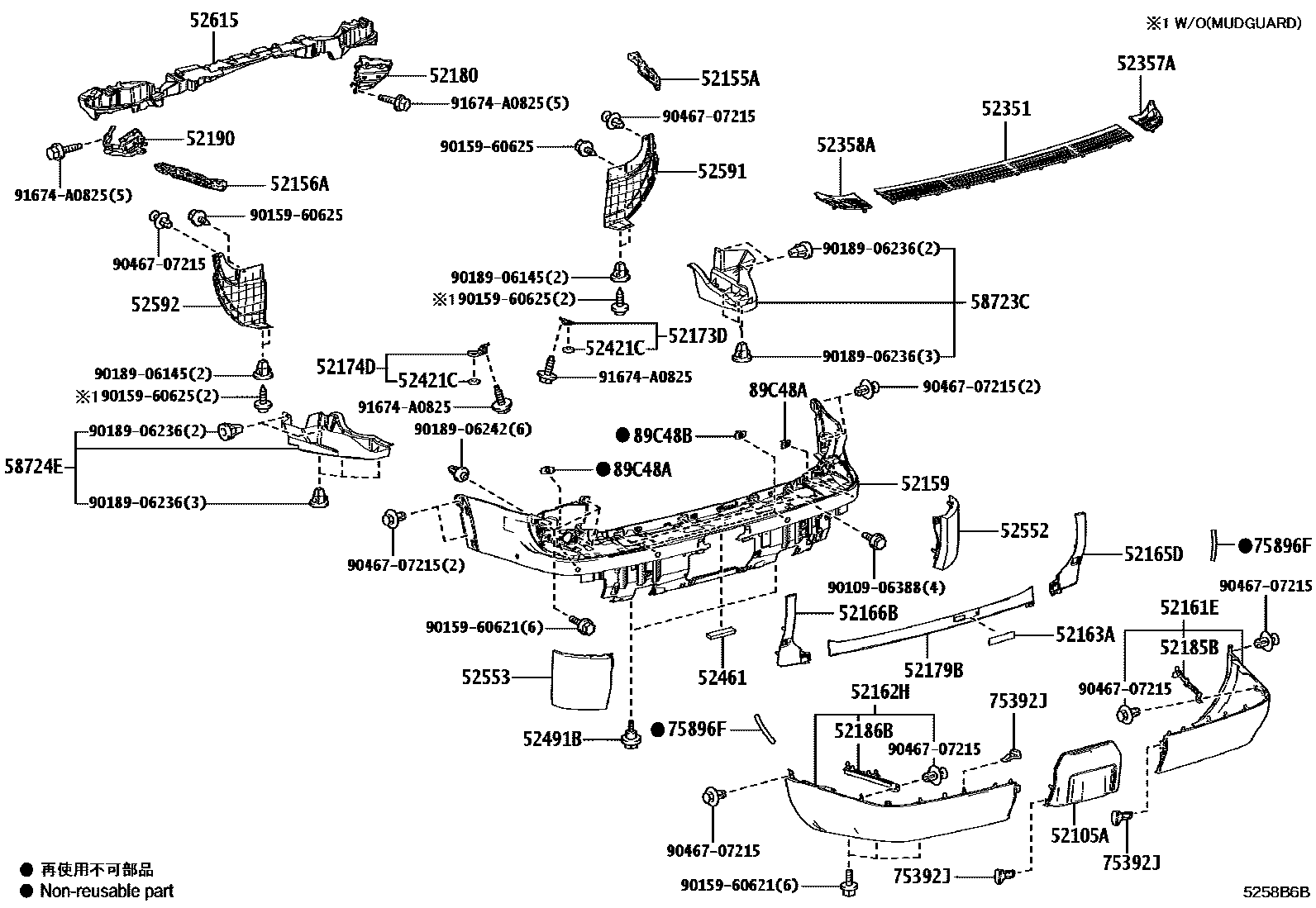

REAR BUMPER & BUMPER STAY
52105ABUMPER SUB-ASSY, REAR CENTER
"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
PAINT REQ.
52161EEXTENSION, REAR BUMPER SIDE, RH
LUXURY PACKAGE; LUXURY+ PACKAGE; PREMIUM+ PACKAGE
"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE
52162HEXTENSION, REAR BUMPER SIDE, LH
LUXURY PACKAGE; LUXURY+ PACKAGE; PREMIUM+ PACKAGE
"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE
52163APLATE, REAR BUMPER, RH
52165DEXTENSION, REAR BUMPER CORNER, RH
52166BEXTENSION, REAR BUMPER CORNER, LH
52173DREINFORCEMENT, REAR BUMPER BAR, RH
52174DREINFORCEMENT, REAR BUMPER BAR, LH
52179BPLATE, REAR BUMPER BAR
52180BRACKET ASSY, REAR BUMPER SIDE MOUNTING, RH
52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH
52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH
"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE
52190BRACKET ASSY, REAR BUMPER SIDE MOUNTING, LH
52351STEP, REAR BUMPER
52357APLATE, BACK STEP, RH
52358APLATE, BACK STEP, LH
52421CPAD, REAR BUMPER
52461PAD, REAR BUMPER, CENTER
52491BBOLT, BUMPER PAD
52552FILLER, REAR BUMPER, RH
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7 ,M06
TITANIUM CARBIDE GRAY,1L8 ,M07
GRAPHITE BLACK GF.,223
MOON DESERT,M08
TERRANE KHAKI M.M.,6X4 ,M09
DEEP BLUE MC.,8X5
52553FILLER, REAR BUMPER, LH
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7 ,M06
TITANIUM CARBIDE GRAY,1L8 ,M07
GRAPHITE BLACK GF.,223
MOON DESERT,M08
TERRANE KHAKI M.M.,6X4 ,M09
DEEP BLUE MC.,8X5
52591SEAL, REAR BUMPER SIDE, RH
CANADA SPEC
CANADA SPEC&"OVERTRAIL" PACKAGE; CANADA SPEC&"OVERTRAIL+" PACKAGE
"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE
52592SEAL, REAR BUMPER SIDE, LH
CANADA SPEC
CANADA SPEC&"OVERTRAIL" PACKAGE; CANADA SPEC&"OVERTRAIL+" PACKAGE
"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE
52615ABSORBER, REAR BUMPER ENERGY
58723CPROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1
"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE
58724EPROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2
"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE
75392JRETAINER, OUTSIDE MOULDING
75896FTAPE, MOULDING
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
SONIC QUARTZ,085
SONIC TITANIUM,1J7 ,M06
MERCURY GRAY MC.,1H9
TITANIUM CARBIDE GRAY,1L8 ,M07
GRAPHITE BLACK GF.,223
MOON DESERT,M08
TERRANE KHAKI M.M.,6X4 ,M09
DEEP BLUE MC.,8X5
9010906388
main90109-06388
9015960621
main90159-60621
9015960625
main90159-60625
9018906145
main90189-06145
9018906236
main90189-06236
9018906242
main90189-06242
9046707215
main90467-07215
91674A0825
main91674-A0825
41 parts on this diagram · 2 diagrams in section
