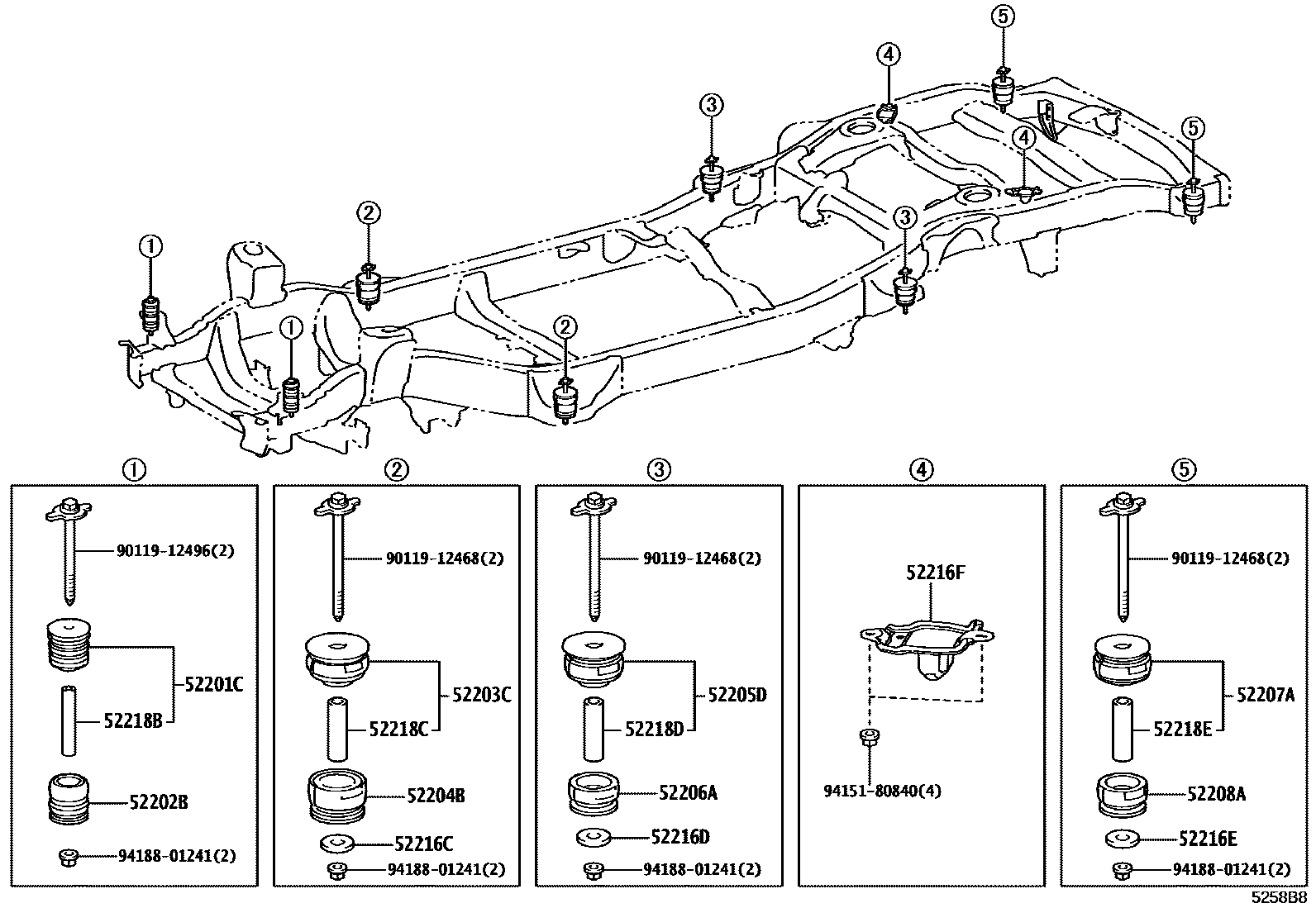

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-60140×2iVJA252202402

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-60120×2iVJA252202402

52203CCUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER

main52203-60140×2iVJA252202402

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-60100×2iVJA252202402

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-60090×2iVJA252202402

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-60080×2iVJA252202402

52207ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER

main52207-60130×2iVJA252202402

52208ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 LOWER

main52208-60070×2iVJA252202402

52216CSTOPPER, CAB MOUNTING CUSHION

main52216-60130×2iVJA252202402

52216DSTOPPER, CAB MOUNTING CUSHION

main52216-60130×2iVJA252202402

52216ESTOPPER, CAB MOUNTING CUSHION

main52216-60130×2iVJA252202402

52216FSTOPPER, CAB MOUNTING CUSHION

main52216-60120×2iVJA252202402

52218BHOLDER, CAB MOUNT CUSHION, NO.1

main52218-60010×2iVJA252202402

52218CHOLDER, CAB MOUNT CUSHION, NO.2

main52218-60030×2iVJA252202402

52218DHOLDER, CAB MOUNT CUSHION, NO.3

main52218-60060×2iVJA252202402

52218EHOLDER, CAB MOUNT CUSHION, NO.4

main52218-60050×2iVJA252202402

9011912468

main90119-12468

9011912496

main90119-12496

9415180840

main94151-80840

9418801241

main94188-01241

20 parts on this diagram · 1 diagram in section
