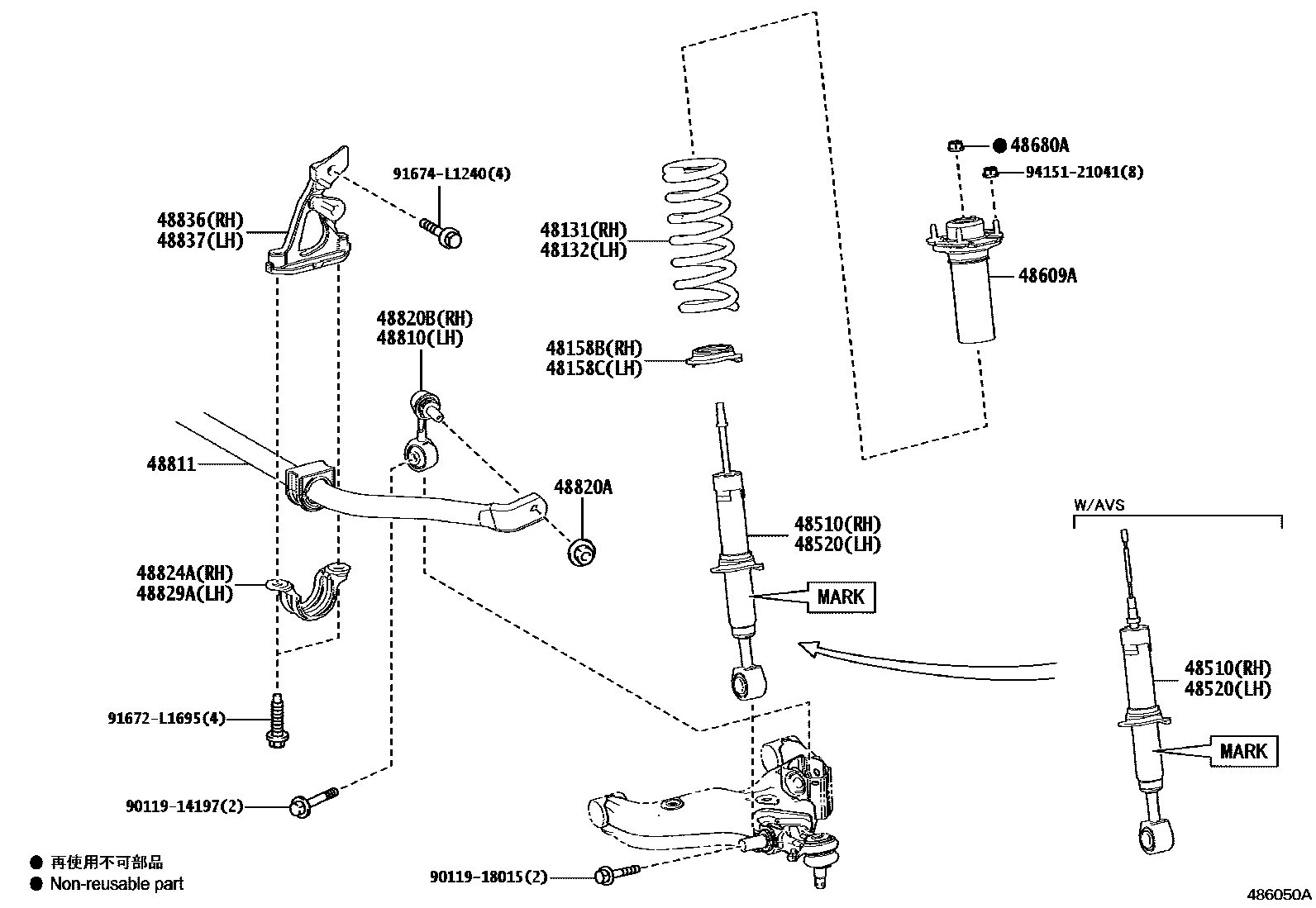

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
LUXURY PACKAGE; LUXURY+ PACKAGE
"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE
"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE
"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE
48132SPRING, FRONT COIL, LH
LUXURY PACKAGE; LUXURY+ PACKAGE
"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE
"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE
"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-60550,LUXURY+ PACKAGE&INTEGRATED SPORT DRIVING-5MODE(DIAL & CUSTOMIZE)
MARK 48510-60610,"OVERTRAIL" PACKAGE&INTEGRATED SPORT DRIVING-5MODE(DIAL & CUSTOMIZE); MARK 48510-60610,"OVERTRAIL+" PACKAGE&INTEGRATED SPORT DRIVING-5MODE(DIAL & CUSTOMIZE)
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48510-60550,LUXURY+ PACKAGE&INTEGRATED SPORT DRIVING-5MODE(DIAL & CUSTOMIZE)
MARK 48510-60610,"OVERTRAIL" PACKAGE&INTEGRATED SPORT DRIVING-5MODE(DIAL & CUSTOMIZE); MARK 48510-60610,"OVERTRAIL+" PACKAGE&INTEGRATED SPORT DRIVING-5MODE(DIAL & CUSTOMIZE)
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
48836BRACKET, FRONT STABILIZER END, RH
48837BRACKET, FRONT STABILIZER END, LH
9011914197
main90119-14197
9011918015
main90119-18015
91672L1695
main91672-L1695
91674L1240
main91674-L1240
9415121041
main94151-21041
21 parts on this diagram · 2 diagrams in section
