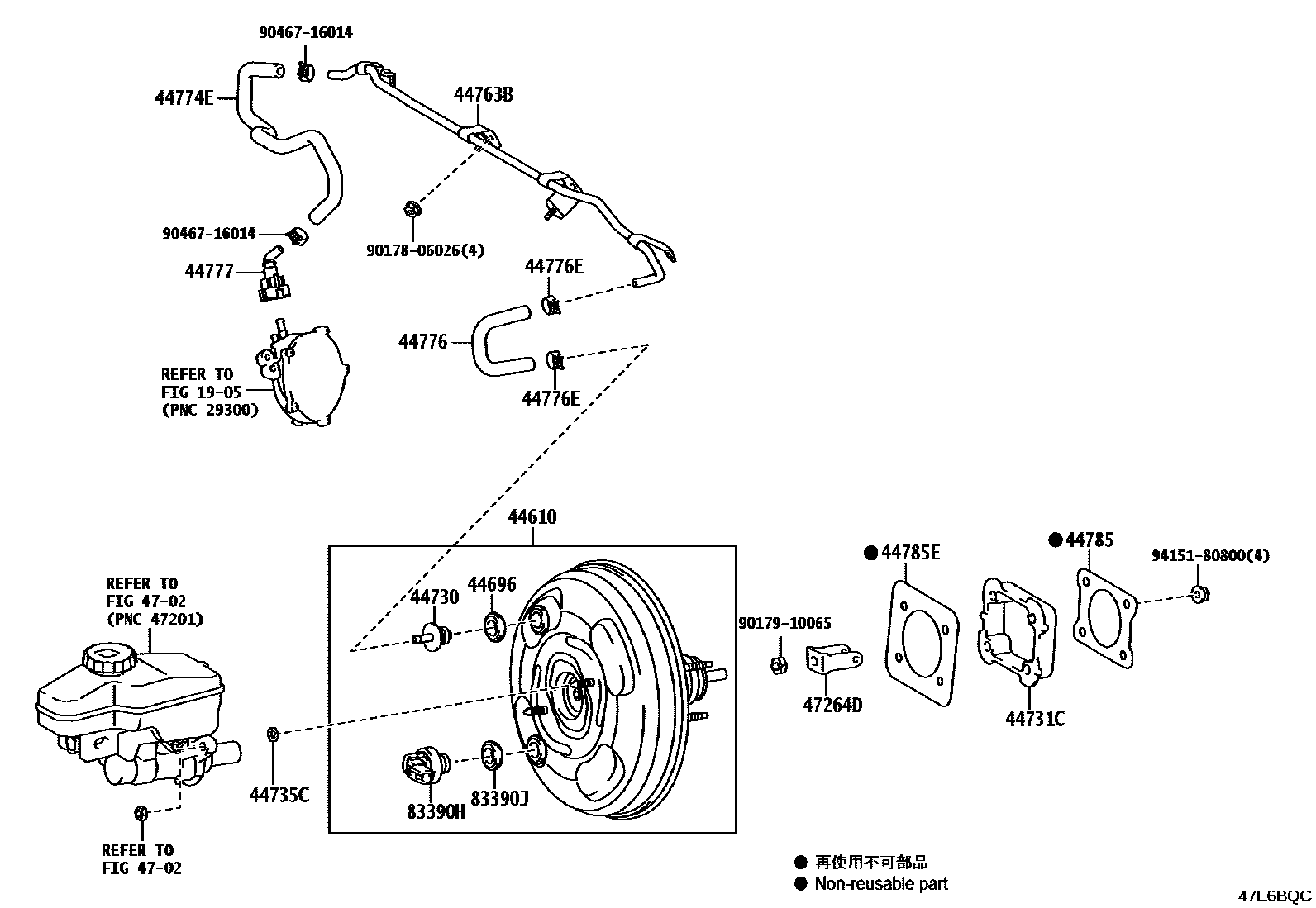

BRAKE BOOSTER & VACUUM TUBE

1905VACUUM PUMP

→ Go to FIG 19-05

44610BOOSTER ASSY, BRAKE

main44610-60B40iVJA252202402

44696GROMMET, CHECK VALVE

main90480-24439iVJA252202402

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-30060iVJA252202402

44731CBRACKET, BRAKE BOOSTER

main44731-60060iVJA252202402

44735CRING, BOOSTER BRACKET STOPPER

main44735-30020×2iVJA252202402

44763BTUBE, TUBE CONNECTOR TO TUBE CONNECTOR

main44763-60260iVJA252202402

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-60400iVJA252202402

44776HOSE, BRAKE BOOSTER

main44776-60070iVJA252202402

44776ECLIP(FOR BRAKE BOOSTER HOSE)

main90467-16014×2iVJA252202402

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-42020iVJA252202402

44785GASKET, BRAKE BOOSTER

main44785-12040iVJA252202402

44785EGASKET, BRAKE BOOSTER, NO.2

main44785-47010iVJA252202402

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-48020iVJA252202402

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iVJA252202402

83390JGROMMET, VACUUM WARNING SWITCH

main90480-24439iVJA252202402

9017806026

main90178-06026

9017910065

main90179-10065

9046716014

main90467-16014

9415180800

main94151-80800

21 parts on this diagram · 1 diagram in section
