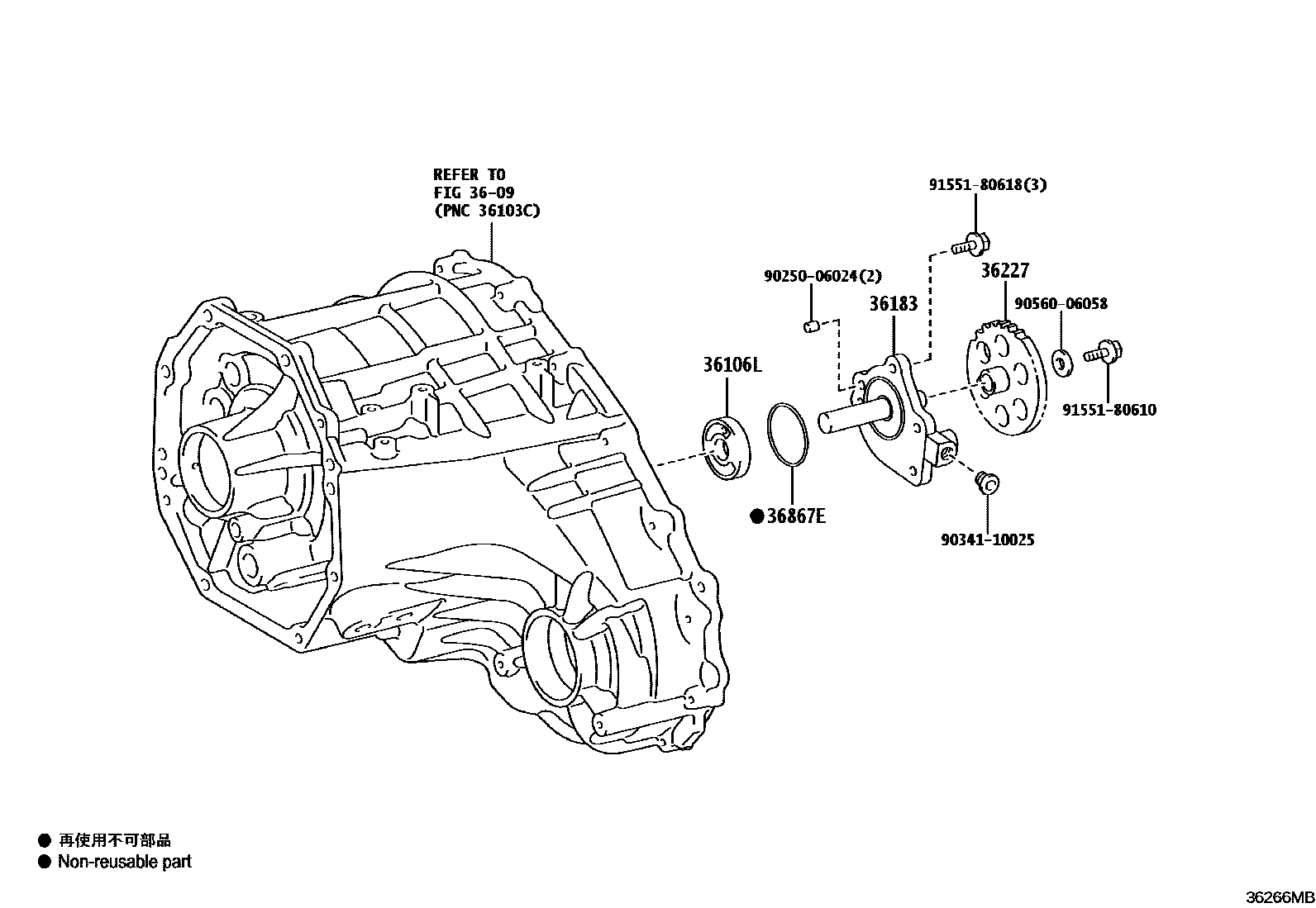

TRANSFER OIL PUMP

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

36106LROTOR SET, TRANSFER OIL PUMP

main36106-60010iVJA252202402

36183PLATE, TRANSFER OIL PUMP

main36183-60020iVJA252202402

36227GEAR, TRANSFER OIL PUMP

main36227-60010iVJA252202402

36867ESEAL, PACKING

main36867-60100iVJA252202402

9025006024

main90250-06024

9034110025

main90341-10025

9056006058

main90560-06058

9155180610

main91551-80610

9155180618

main91551-80618

10 parts on this diagram · 1 diagram in section
