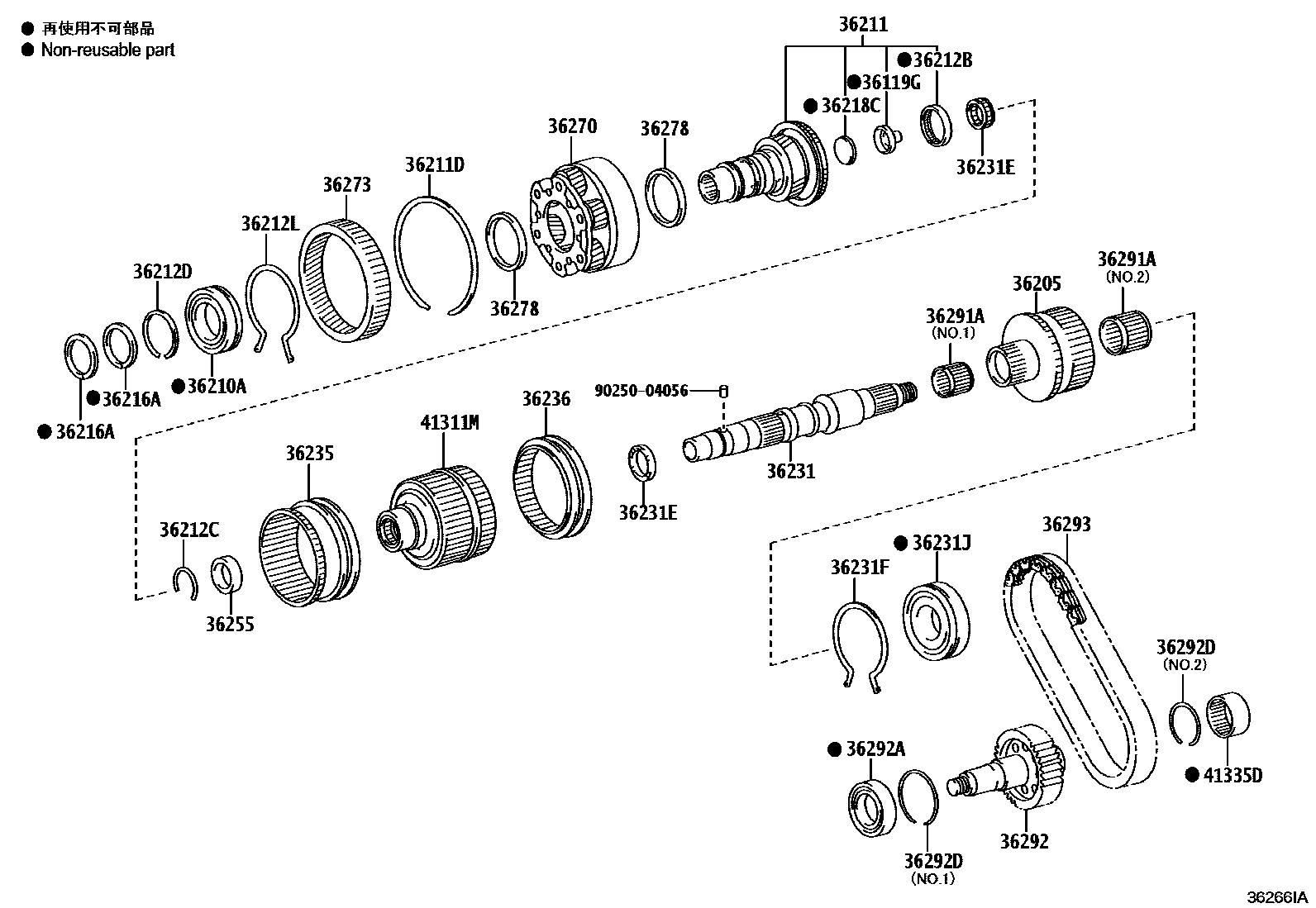

TRANSFER GEAR
36119GRECEIVER, TRANSFER OIL
36205SPROCKET SUB-ASSY, TRANSFER DRIVE
36210ABEARING (FOR TRANSFER INPUT SHAFT)
36211SHAFT, TRANSFER INPUT
36211DRING, HOLE SNAP (FOR TRANSFER INPUT SHAFT)
T=2.0
36212BBEARING, NEEDLE ROLLER (FOR TRANSFER INPUT GEAR)
36212CRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR)
T=2.47,MARK A
T=2.52,MARK B
T=2.57,MARK C
T=2.62,MARK D
T=2.67,MARK E
T=2.72,MARK F
T=2.77,MARK G
T=2.82,MARK H
T=2.87,MARK J
T=2.92,MARK K
T=2.97,MARK L
T=3.02,MARK M
T=3.07,MARK N
36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)
T=2.13,MARK K
T=2.18,MARK L
T=2.23,MARK M
T=2.28,MARK N
T=2.33,MARK P
T=2.38,MARK Q
T=2.43,MARK R
36212LRING, SHAFT SNAP
T=2.2
36216ARING, TRANSFER INPUT SHAFT SEAL, NO.1
36218CPLUG, TRANSFER INPUT SHAFT
36231SHAFT, TRANSFER OUTPUT, REAR
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
T=2.4
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
36236SLEEVE, FRONT DRIVE CLUTCH
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
36270GEAR ASSY, TRANSFER LOW PLANETARY
36273GEAR, TRANSFER LOW PLANETARY RING
36278WASHER, MANUAL TRANSFER PLANETARY CARRIER
T=2.62-2.78
36291ABEARING (FOR TRANSFER DRIVE SPROCKET)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
36292SPROCKET, TRANSFER DRIVEN
36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)
36292DRING SHAFT SNAP(FOR TRANSFER DRIVEN SPROCKET)
T=1.0
T=1.8,MARK B
36293CHAIN, TRANSFER FRONT DRIVE
41311MCASE, CENTER DIFFERENTIAL
41335DBEARING (FOR SIDE GEAR SHAFT HOLDER)
9025004056
main90250-04056
29 parts on this diagram · 1 diagram in section
