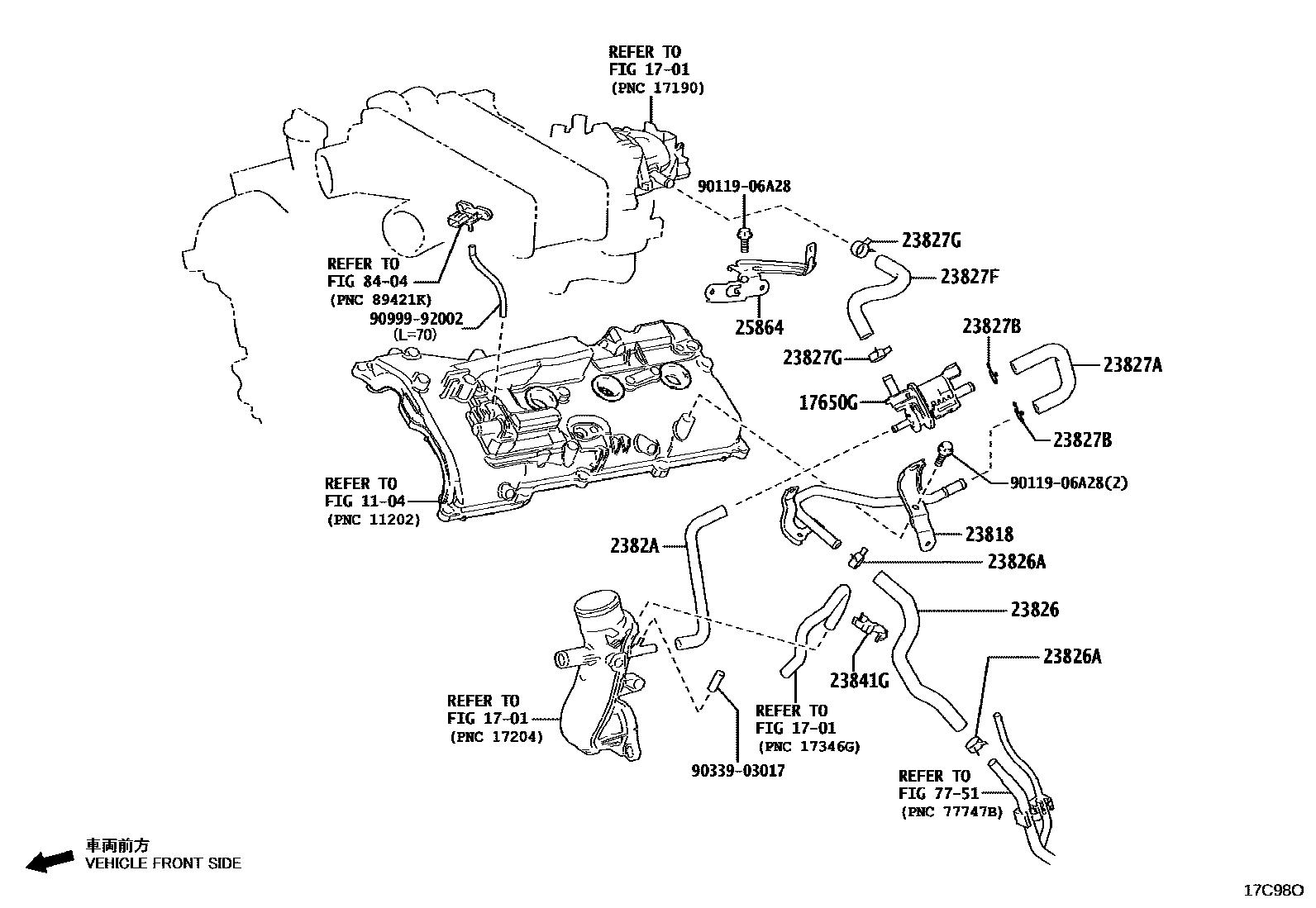

VACUUM PIPING

1104CYLINDER HEAD

→ Go to FIG 11-04

1701MANIFOLD

→ Go to FIG 17-01

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12284iV35AFTS..VJA252202402

23818PIPE, FUEL VAPOR FEED

main23818-70070iV35AFTS..VJA252202402

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-70130iV35AFTS..VJA252202402

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96138-41901×2iV35AFTS..VJA252202402

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-70080iV35AFTS..VJA252202402

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-17004×2iV35AFTS..VJA252202402

23827FHOSE, FUEL VAPOR FEED, NO.3

main23826-70120iV35AFTS..VJA252202402

23827GCLIP(FOR FUEL VAPOR FEED HOSE, NO.3)

main96137-41901×2iV35AFTS..VJA252202402

2382AHOSE, FUEL VAPOR FEED, NO.4

main23828-70020iV35AFTS..VJA252202402

23841GCLAMP, FUEL HOSE

main23841-70040iV35AFTS..VJA252202402

25864BRACKET, PURGE PRESSURE SENSOR

main25864-70010iV35AFTS..VJA252202402

7751FUEL TANK & TUBE

→ Go to FIG 77-51

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9011906A28

main90119-06A28

9033903017

main90339-03017

9099992002

main90999-92002

18 parts on this diagram · 1 diagram in section
