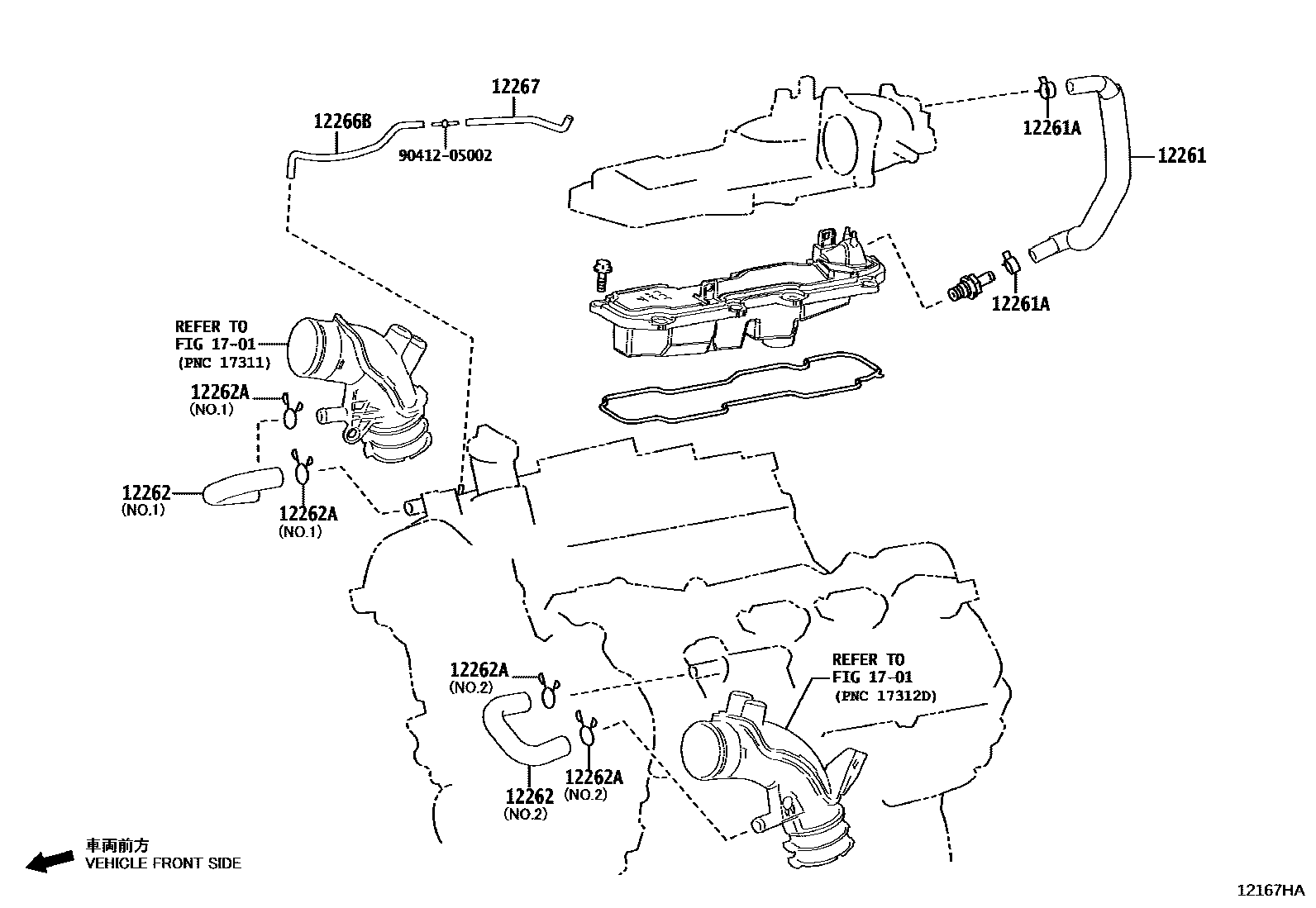

VENTILATION HOSE

12261HOSE, VENTILATION

main12261-70130iV35AFTS..VJA252202402

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-16004×2iV35AFTS..VJA252202402

12262HOSE, VENTILATION, NO.2

main12262-70090iV35AFTS..VJA252202402

NO.1,NO.2

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004×2iV35AFTS..VJA252202402

NO.2

main90467-21152×2iV35AFTS..VJA252202402

NO.1

12266BHOSE, VENTILATION PRESSURE SENSOR, NO.1

main12266-70010iV35AFTS..VJA252202402

12267HOSE, VENTILATION PRESSURE SENSOR, NO.2

main12267-70010iV35AFTS..VJA252202402

1701MANIFOLD

→ Go to FIG 17-01

9041205002

main90412-05002

8 parts on this diagram · 1 diagram in section
