TIMING GEAR COVER & REAR END PLATE

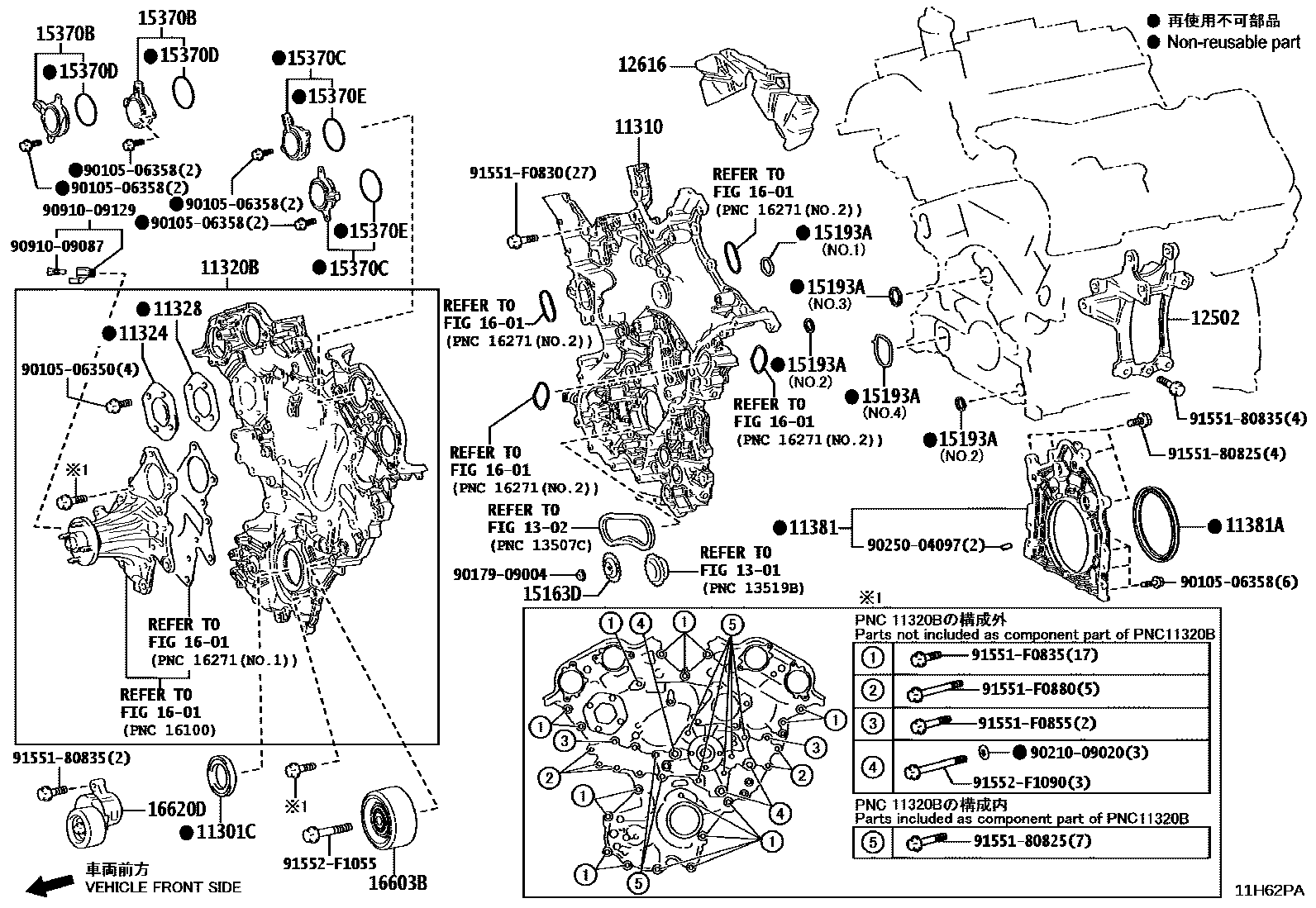

Parts diagram
11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
main90311-44010i202402
11310COVER ASSY, TIMING CHAIN
main11310-70020i202402
11320BCOVER ASSY, TIMING CHAIN, NO.2
main11320-70090i202402
11324PLATE, TIMING CHAIN COVER
main11324-70030i202402
11328GASKET, TIMING GEAR OR CHAIN COVER
main11328-70070i202402
11381RETAINER, ENGINE REAR OIL SEAL
main11381-70040i202402
11381ASEAL, ENGINE REAR OIL
main90311-99016i202402
12502BRACKET SUB-ASSY, CHAIN COVER & COMPRESSOR
main12502-70021i202402
12616COVER, ENGINE, NO.6
main12616-70010i202402
1301CRANKSHAFT & PISTON
→ Go to FIG 13-01
1302CAMSHAFT & VALVE
→ Go to FIG 13-02
15163DSPROCKET, OIL PUMP DRIVE SHAFT
main15163-70020i202402
15193AGASKET, OIL PUMP
main15197-36010i202402
NO.1:REFER ILLUST.
main15197-70010×2i202402
NO.2:REFER ILLUST.
main15197-70020i202402
NO.3:REFER ILLUST.
main15197-70030i202402
NO.4:REFER ILLUST.
15370BSOLENOID ASSY, CAM TIMING OIL CONTROL, RH
main15370-25020×2i202402
15370CSOLENOID ASSY, CAM TIMING OIL CONTROL, LH
main15370-25020×2i202402
15370DRING, O(FOR CAM TIMING OIL CONTROL SOLENOID RH)
main90301-44006×2i202402
15370ERING, O(FOR CAM TIMING OIL CONTROL SOLENOID LH)
main90301-44006×2i202402
1601WATER PUMP
→ Go to FIG 16-01
16603BPULLEY SUB-ASSY, IDLER
main16603-70030i202402
16620DTENSIONER ASSY, V-RIBBED BELT
main16620-70050i202402
9010506350
main90105-06350
9010506358
main90105-06358
9017909004
main90179-09004
9021009020
main90210-09020
9025004097
main90250-04097
9091009087
main90910-09087
9091009129
main90910-09129
9155180825
main91551-80825
9155180835
main91551-80835
91551F0830
main91551-F0830
91551F0835
main91551-F0835
91551F0855
main91551-F0855
91551F0880
main91551-F0880
91552F1055
main91552-F1055
91552F1090
main91552-F1090

35 parts on this diagram · 1 diagram in section
