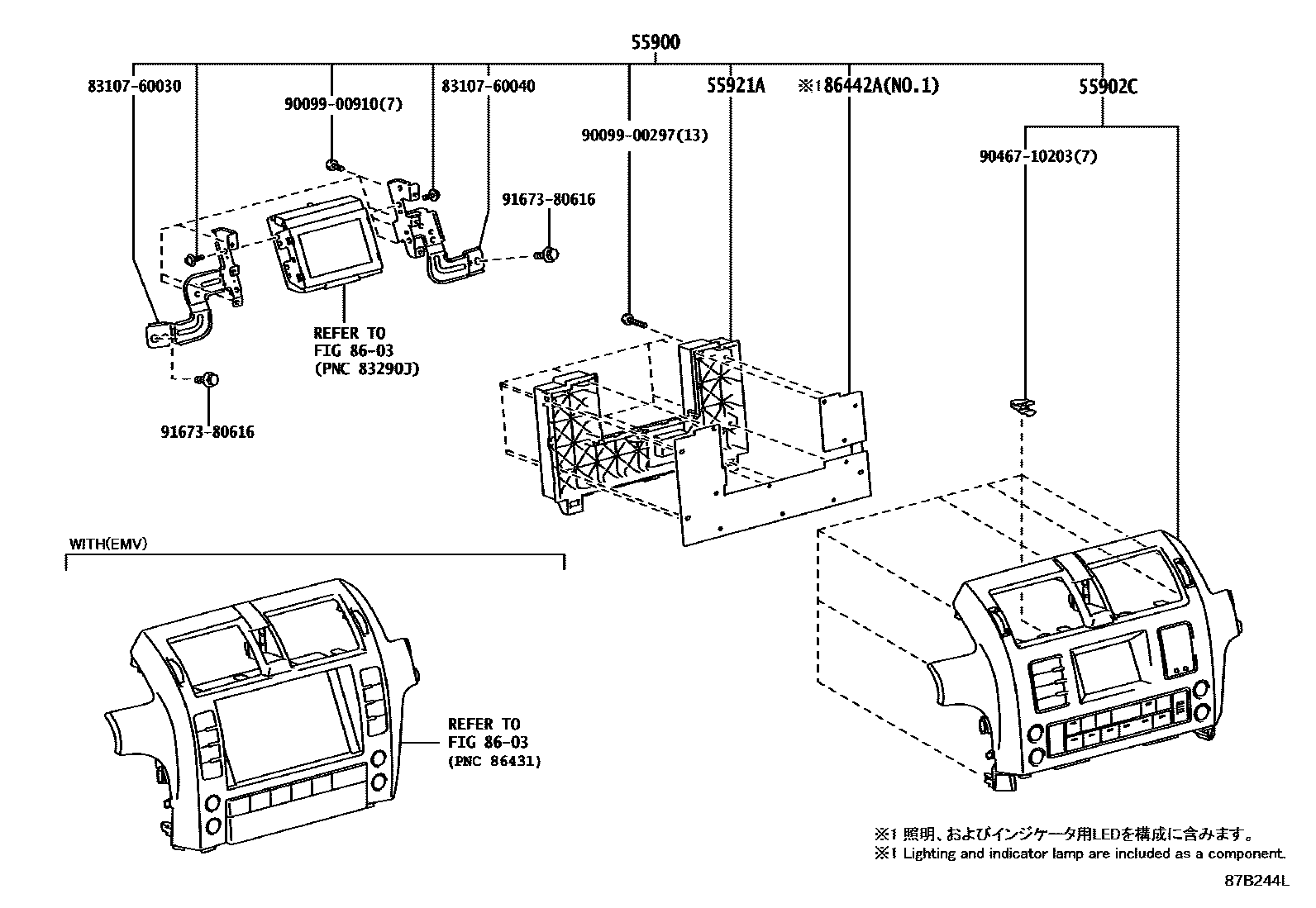

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
55900CONTROL ASSY, AIR CONDITIONER
AIR CONDITIONER-DUAL(AUTO)
AIR CONDITIONER-DUAL(AUTO)
AIR CONDITIONER-FRONT DUAL & REAR AUTO
OFF ROAD PKG&OUTSIDE REAR VIEW MIRROR-*57 WITH(CAMERA + *BSM INDICAROR)&AIR CONDITIONER-FRONT DUAL & REAR AUTO
55902CPANEL SUB-ASSY, AIR CONDITIONER
AIR CONDITIONER-DUAL(AUTO)
AIR CONDITIONER-DUAL(AUTO)
8603NAVIGATION & FRONT MONITOR DISPLAY
86442ABOARD, HEATER CONTROL SWITCH
AIR CONDITIONER-DUAL(AUTO),NO.1; NO.1
AIR CONDITIONER-DUAL(AUTO),NO.1; NO.1
AIR CONDITIONER-DUAL(AUTO)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,NO.2; NO.2
AIR CONDITIONER-DUAL(AUTO)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,NO.2; NO.2
AIR CONDITIONER-FRONT DUAL & REAR AUTO,NO.2; NO.2
AIR CONDITIONER-DUAL(AUTO),NO.2
AIR CONDITIONER-DUAL(AUTO),NO.2
8310760030BRACKET SUB-ASSY, METER
main83107-60030
8310760040BRACKET SUB-ASSY, METER
main83107-60040
9009900297
main90099-00297
9009900910
main90099-00910
9046710203
main90467-10203
9167380616
main91673-80616
11 parts on this diagram · 9 diagrams in section
