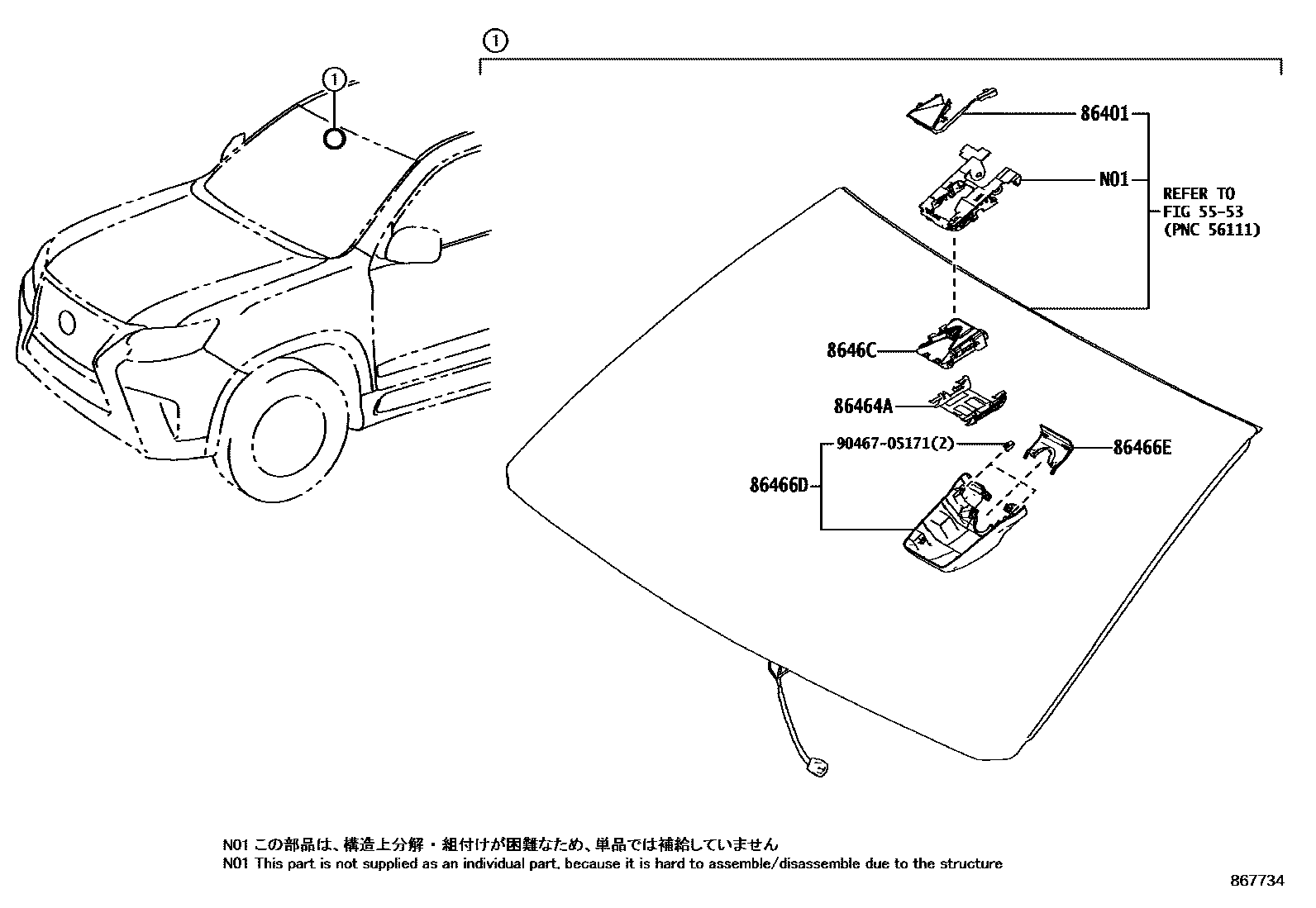

PRE-COLLISION SYSTEM

5553COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-53

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-60020iURJ150201908

86464ALATCH, FORWARD RECOGNITION

main86464-48011iURJ150201908

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-60050iURJ150201908

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-60060iURJ150201908

8646CCAMERA, FORWARD RECOGNITION

main8646C-60050iURJ150; URJ150..Z201908-202008

COSTA RICA SPEC

main8646C-60051iURJ150202008

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
