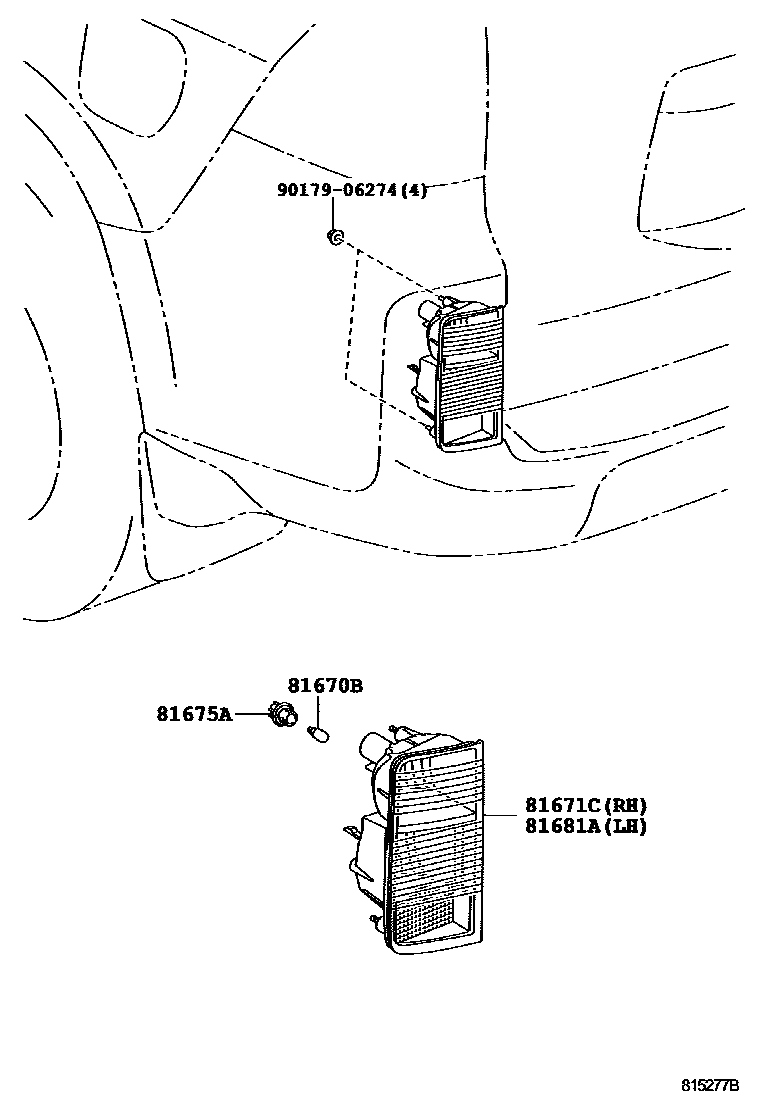

BACK UP LAMP

0001 1 0002 1

81670BBULB(FOR BACK-UP LAMP)

main90981-11059×2iURJ150200911-201308

12V 16W

81671CLENS & BODY, BACK-UP LAMP, RH

main81671-60120iURJ150200911-201308

main81671-60160iURJ150201308-201908

81675APLUG, SOCKET(FOR BACK-UP LAMP)

main81675-60120×2iURJ150200911-201308

81681ALENS & BODY, BACK-UP LAMP, LH

main81681-60080iURJ150200911-201308

main81681-60120iURJ150201308-201908

9017906274

main90179-06274

5 parts on this diagram · 2 diagrams in section
