ARMREST & VISOR

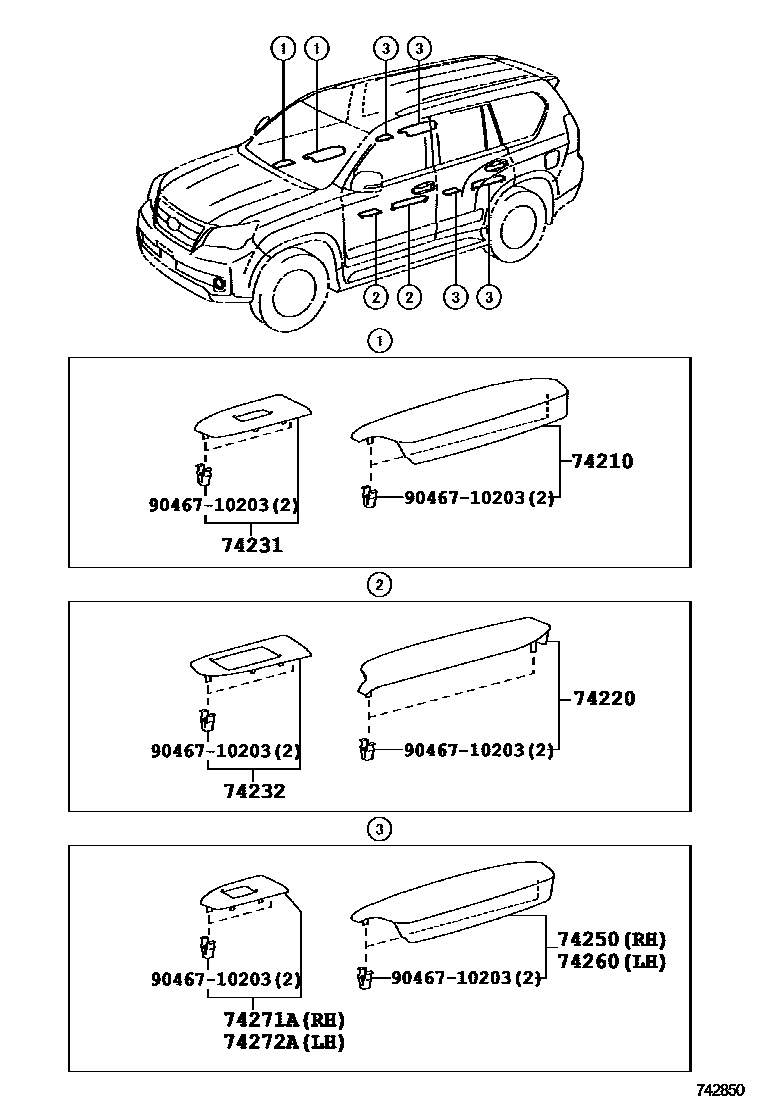

Parts diagram

74210ARMREST ASSY, FRONT, RH

main74210-60280-A1i201308-201908

ECRU,TRIM0#

main74210-60280-A2i201908

ECRU,TRIM0#

main74210-60280-C0i201308-201908

BLACK,TRIM2#

main74210-60280-C1i201908

BLACK,TRIM20

main74210-60280-C2i202108

BLACK/LT.GRAY,TRIM1#,22

main74210-60280-D1i201908

DK.ROSE,TRIM21

main74210-60280-E0i201308-201908

SEPIA,TRIM4#

main74210-60280-E1i201908

SEPIA,TRIM4#

74220ARMREST ASSY, FRONT, LH

main74220-60280-A1i201308-201908

ECRU,TRIM0#

main74220-60280-A2i201908

ECRU,TRIM0#

main74220-60280-C0i201308-201908

BLACK,TRIM2#

main74220-60280-C1i201908

BLACK,TRIM20

main74220-60280-C2i202108

BLACK/LT.GRAY,TRIM1#,22

main74220-60280-D1i201908

DK.ROSE,TRIM21

main74220-60280-E0i201308-201908

SEPIA,TRIM4#

main74220-60280-E1i201908

SEPIA,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-60600-E0i200911-201308

SEPIA,TRIM0#,2#,4#

main74231-60610i200911-201108

main74231-60800i201308-201908

main74231-60860i201908-202108

main74231-60B30i202108

main74231-60810i201308-201908

TOURING PACKAGE

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-60570-E0i200911-201308

SEPIA,TRIM0#,2#,4#

main74232-60580i200911-201108

main74232-60760i201308-201908

main74232-60830i201908-202108

main74232-60A60i202108

main74232-60770i201308-201908

TOURING PACKAGE

74250ARMREST ASSY, REAR RH

main74250-60220-A1i200911-201308

ECRU,TRIM0#

main74250-60220-A2i201908

ECRU,TRIM0#

main74250-60220-C0i201308-201908

BLACK,TRIM2#

main74250-60220-C1i201908

BLACK,TRIM20

main74250-60220-C2i202108

BLACK/LT.GRAY,TRIM1#,22

main74250-60220-D1i201908

DK.ROSE,TRIM21

main74250-60220-E0i201308-201908

SEPIA,TRIM4#

main74250-60220-E1i201908

SEPIA,TRIM4#

74260ARMREST ASSY, REAR LH

main74260-60220-A1i200911-201308

ECRU,TRIM0#

main74260-60220-A2i201908

ECRU,TRIM0#

main74260-60220-C0i200911-201308

BLACK,TRIM2#

main74260-60220-C1i201908

BLACK,TRIM20

main74260-60220-C2i202108

BLACK/LT.GRAY,TRIM1#,22

main74260-60220-D1i201908

DK.ROSE,TRIM21

main74260-60220-E0i201308-201908

SEPIA,TRIM4#

main74260-60220-E1i201908

SEPIA,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-60210-E0i200911-201308

SEPIA,TRIM0#,2#,4#

main74271-60220i200911-201108

main74271-60330i201308-201908

main74271-60400i201908-202108

main74271-60490i202108

main74271-60340i201308-201908

TOURING PACKAGE

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-60210-E0i200911-201308

SEPIA,TRIM0#,2#,4#

main74272-60220i200911-201108

main74272-60330i201308-201908

main74272-60400i201908-202108

main74272-60490i202108

main74272-60340i201308-201908

TOURING PACKAGE

9046710203

main90467-10203

9 parts on this diagram · 3 diagrams in section
