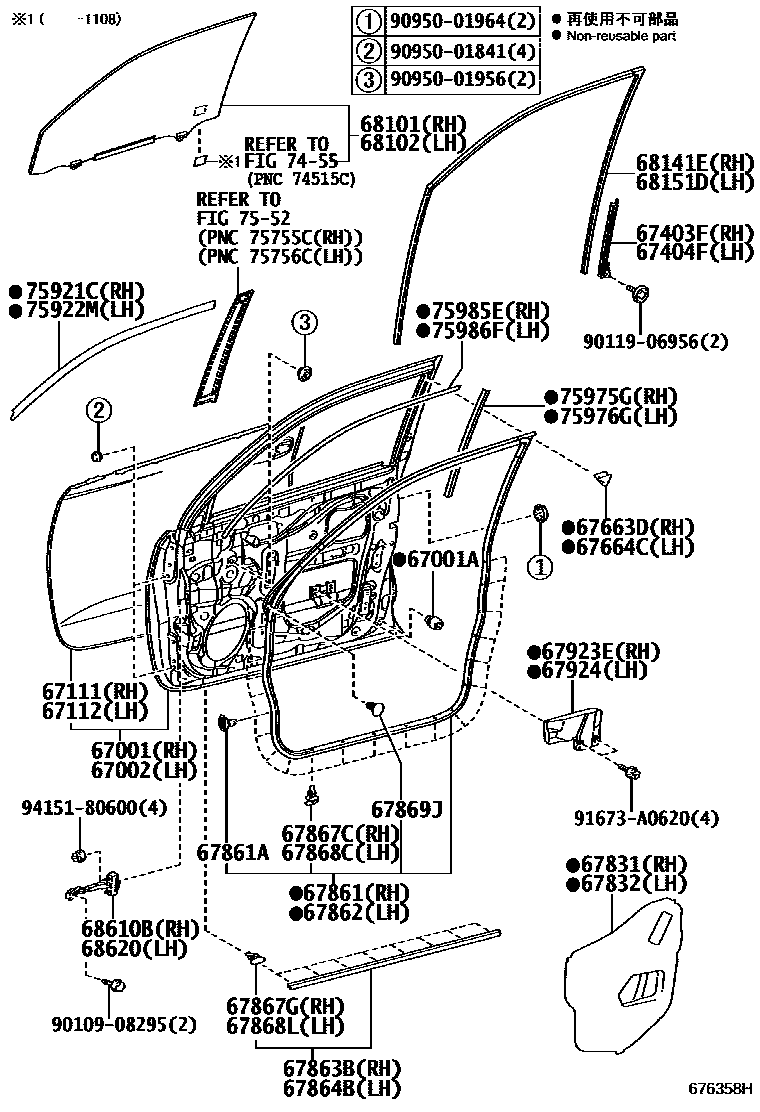

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-60720iURJ150..G200911-201108

main67001-60730iURJ150..Z200911-201308

main67001-60731iURJ150201501-201908

main67001-60890iURJ150201908

67001ACUSHION, FRONT DOOR PANEL

main90541-09069×2iURJ150200911-201308

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-60720iURJ150..G200911-201108

main67002-60730iURJ150..Z200911-201308

main67002-60731iURJ150201501-201908

main67002-60890iURJ150201908

67111PANEL, FRONT DOOR, OUTER RH

main67111-60370iURJ150..G200911-201108

main67111-60380iURJ150201308-201908

67112PANEL, FRONT DOOR, OUTER LH

main67112-60370iURJ150..G200911-201108

main67112-60380iURJ150201308-201908

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-60110iURJ150201308-201908

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-60120iURJ150200911-201308

67663DGARNISH, DOOR FRAME, RH

main67663-48010iURJ150200911-201308

67664CGARNISH, DOOR FRAME, LH

main67664-48010iURJ150201308-201908

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67801-60030iURJ150200911-201308

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67802-60030iURJ150200911-201308

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-60170iURJ150201308-201908

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-60010×2iURJ150200911-201308

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-60170iURJ150200911-201308

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-60030iURJ150200911-201308

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-60030iURJ150200911-201308

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×19iURJ150200911-201308

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-52010×8iURJ150200911-201308

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×19iURJ150200911-201308

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-52020×8iURJ150200911-201308

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-24010×2iURJ150200911-201308

67923ECUSHION, FRONT DOOR STIFFENER, NO.1

main67923-60030iURJ150201308-201908

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-60030iURJ150201908

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-60610supersedes 68101-60830iURJ150201108-201308

*UVCT,T=5.0,GREEN

main68101-60620iURJ150200911-201108

*UVCT,T=5.0,GREEN

main68101-60831iURJ150202101

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-60610supersedes 68102-60830iURJ150201108-201308

*UVCT,T=5.0,GREEN

main68102-60620iURJ150200911-201108

*UVCT,T=5.0,GREEN

main68102-60831iURJ150202101

68141ERUN, FRONT DOOR GLASS, RH

main68141-60080iURJ150200911-201308

main68141-60081iURJ150201706-201908

main68141-60082iURJ150202001-202006

main68141-60120iURJ150202006

68151DRUN, FRONT DOOR GLASS, LH

main68151-60070iURJ150200911-201308

main68151-60071iURJ150201908-201912

main68151-60072iURJ150202001-202006

main68151-60110iURJ150202006

68610BCHECK ASSY, FRONT DOOR, RH

main68610-60120iURJ150201308-201311

main68610-60121iURJ150201312-201612

main68610-60140iURJ150202005

main68610-60160iURJ150201912-202005

68620CHECK ASSY, FRONT DOOR, LH

main68610-60120iURJ150200911-201308

main68610-60121iURJ150201312-201612

main68620-60120iURJ150201612-201907

main68620-60140iURJ150201912-202005

7455CAUTION PLATE

→ Go to FIG 74-55

7552MOULDING

→ Go to FIG 75-52

75921CTAPE, BLACK OUT, NO.1 RH

main75921-60040iURJ150200911-201308

75922MTAPE, BLACK OUT, NO.1 LH

main75922-60040iURJ150200911-201308

75975GSTRIPE, FRONT DOOR, NO.2 RH

main75975-60120iURJ150200911-201308

75976GSTRIPE, FRONT DOOR, NO.2 LH

main75976-60100iURJ150200911-201308

75985ESTRIPE, FRONT DOOR OUTSIDE, RH

main75985-60780iURJ150200911-201011

main75985-60781iURJ150201012-201308

75986FSTRIPE, FRONT DOOR OUTSIDE, LH

main75986-60780iURJ150200911-201011

main75986-60781iURJ150201012-201308

9010908295

main90109-08295

9011906956

main90119-06956

9095001841

main90950-01841

9095001956

main90950-01956

9095001964

main90950-01964

91673A0620

main91673-A0620

9415180600

main94151-80600

44 parts on this diagram · 2 diagrams in section
