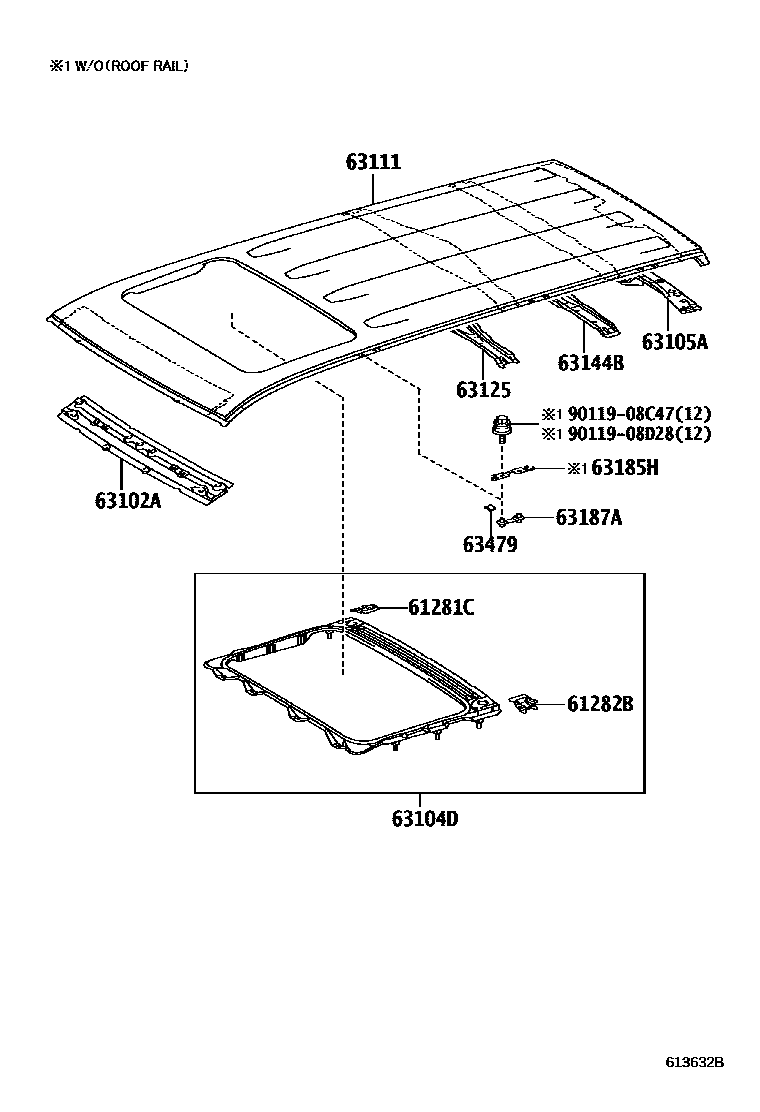

ROOF PANEL & BACK PANEL

61281CBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

61282BBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1 LH

main61282-60010i201308-201908

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-60140i201308-201611

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-60070i201308-201908

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60300i200911-201308

63111PANEL, ROOF

main63111-60650i201308-201508

main63111-60840i201508-201908

main63111-60630i201908-202108

HAWAII SPEC; HAWAII SPEC&AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER

63125REINFORCEMENT, ROOF PANEL, NO.2

main63125-60070i200911-201308

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-60070i200911-201308

63185HBRACKET, ROOF RACK

main63185-42020×6i200911-201308

63187ABRACKET, ROOF RACK, REAR

main63187-35020×6i200911-201308

63479RETAINER, ROOF INNER RACK

main63479-60020×6i200911-201308

9011908C47

9011908D28

13 parts on this diagram · 3 diagrams in section
