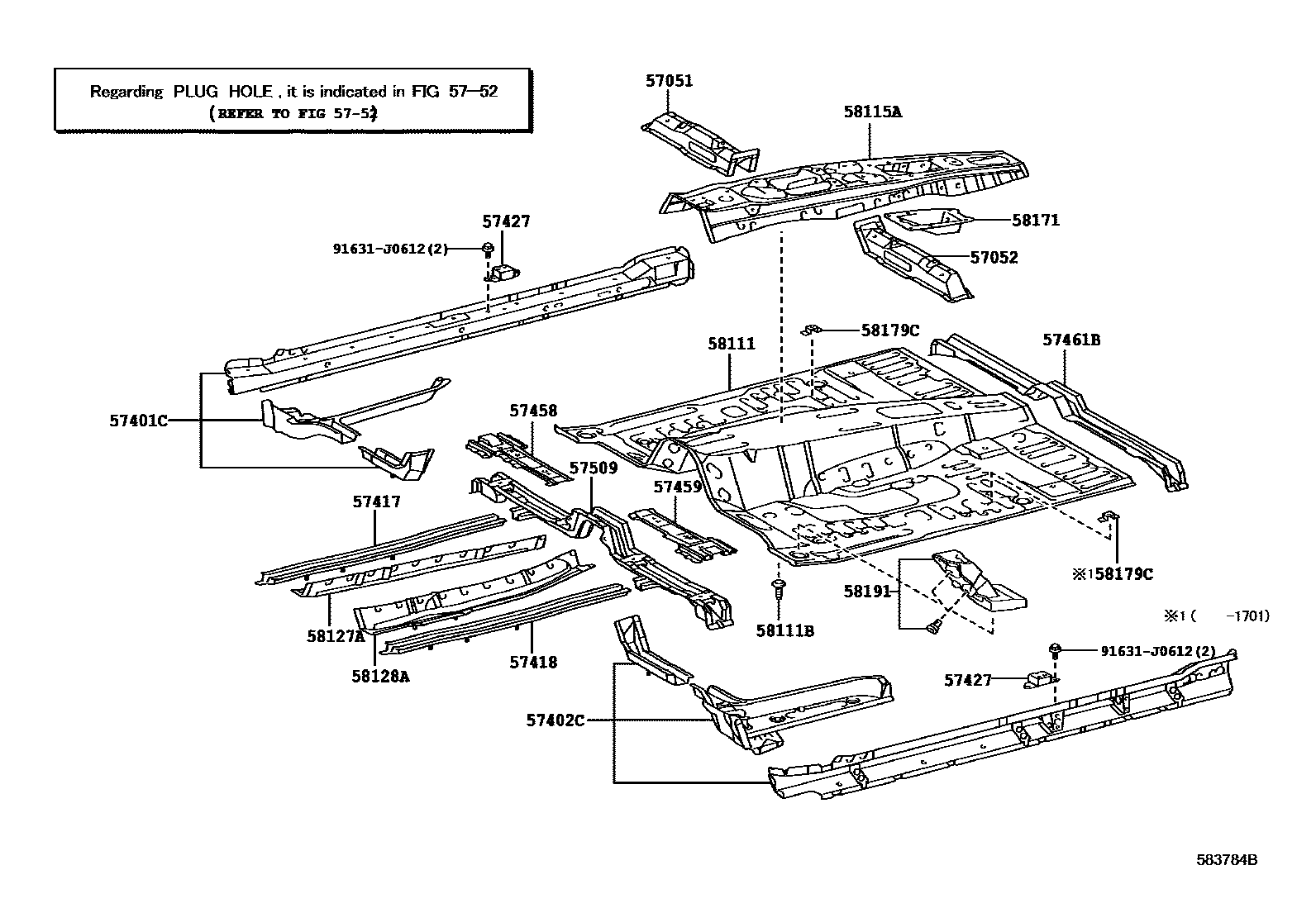

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1FLOOR PANEL 0002 1SIDE STEP

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-35051iURJ150200911-201308

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-35051iURJ150200911-201308

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-60901iURJ150200911-201012

main57401-60903iURJ150201110-201308

57402CMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-60901iURJ150200911-201012

main57402-60903iURJ150201110-201308

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-35051iURJ150200911-201308

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-35061iURJ150200911-201308

57427REINFORCEMENT, FRONT FLOOR TO BRACE

main57427-60020×2iURJ150200911-201308

57458MEMBER, FRONT FLOOR CROSS, NO.1

main57458-60020iURJ150200911-201308

57459MEMBER, FRONT FLOOR CROSS, NO.2

main57459-60070iURJ150200911-201308

57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57461-35020iURJ150200911-201308

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-60100iURJ150200911-201308

5752HOLE PLUG

→ Go to FIG 57-52

58111PAN, FRONT FLOOR

main58111-35431iURJ150201308-201908

main58111-60C20iURJ150..Z201308-201908

COOL & HOT BOX-WITH

58111BBOLT, WELD(FOR FRONT FLOOR PAN)

main90115-06166×6iURJ150; URJ150..G200911-201308

AIR CONDITIONER-DUAL(AUTO)

58115AREINFORCEMENT, FRONT FLOOR PANEL

main58115-60011iURJ150200911-201308

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-35010iURJ150200911-201308

58128AREINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-35011iURJ150200911-201308

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-60020iURJ150200911-201308

58179CBRACKET, CLAMP FLOOR

main58179-60010×2iURJ150200911-201308

58191FOOTREST, FRONT FLOOR

main58190-35050iURJ150200911-201107

main58190-35051iURJ150201108-201308

91631J0612

main91631-J0612

21 parts on this diagram · 2 diagrams in section
