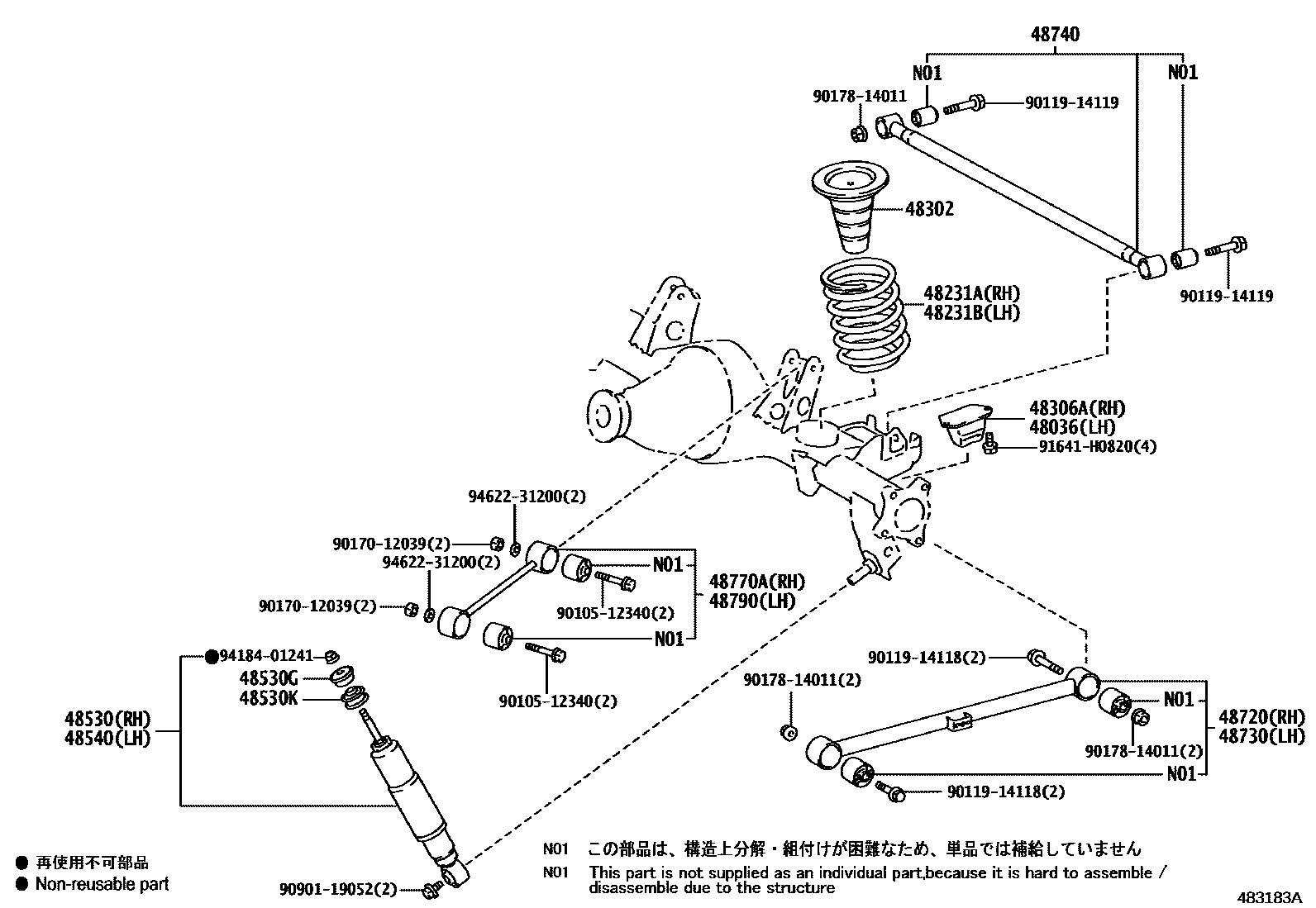

REAR SPRING & SHOCK ABSORBER
48036BUMPER SUB-ASSY, REAR SPRING, LH
MEXICO SPEC
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48302SPRING SUB-ASSY, HOLLOW
48306ABUMPER SUB-ASSY, REAR SPRING, RH
COSTA RICA SPEC
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-60250
MARK 48530-60260
MARK 48530-60350
MARK 48530-60210,MEXICO SPEC
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-60250
MARK 48530-60260
MARK 48530-60350
MARK 48530-60210,COSTA RICA SPEC
48720ARM ASSY, LOWER CONTROL, RH
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48770AARM ASSY, UPPER CONTROL, REAR RH
HEADLAMP-AFS & DISCHARGE
48790ARM ASSY, UPPER CONTROL, REAR LH
9010512340
main90105-12340
9011914118
main90119-14118
9011914119
main90119-14119
9017012039
main90170-12039
9017814011
main90178-14011
9090119052
main90901-19052
91641H0820
main91641-H0820
9418401241
main94184-01241
9462231200
main94622-31200
23 parts on this diagram · 3 diagrams in section
