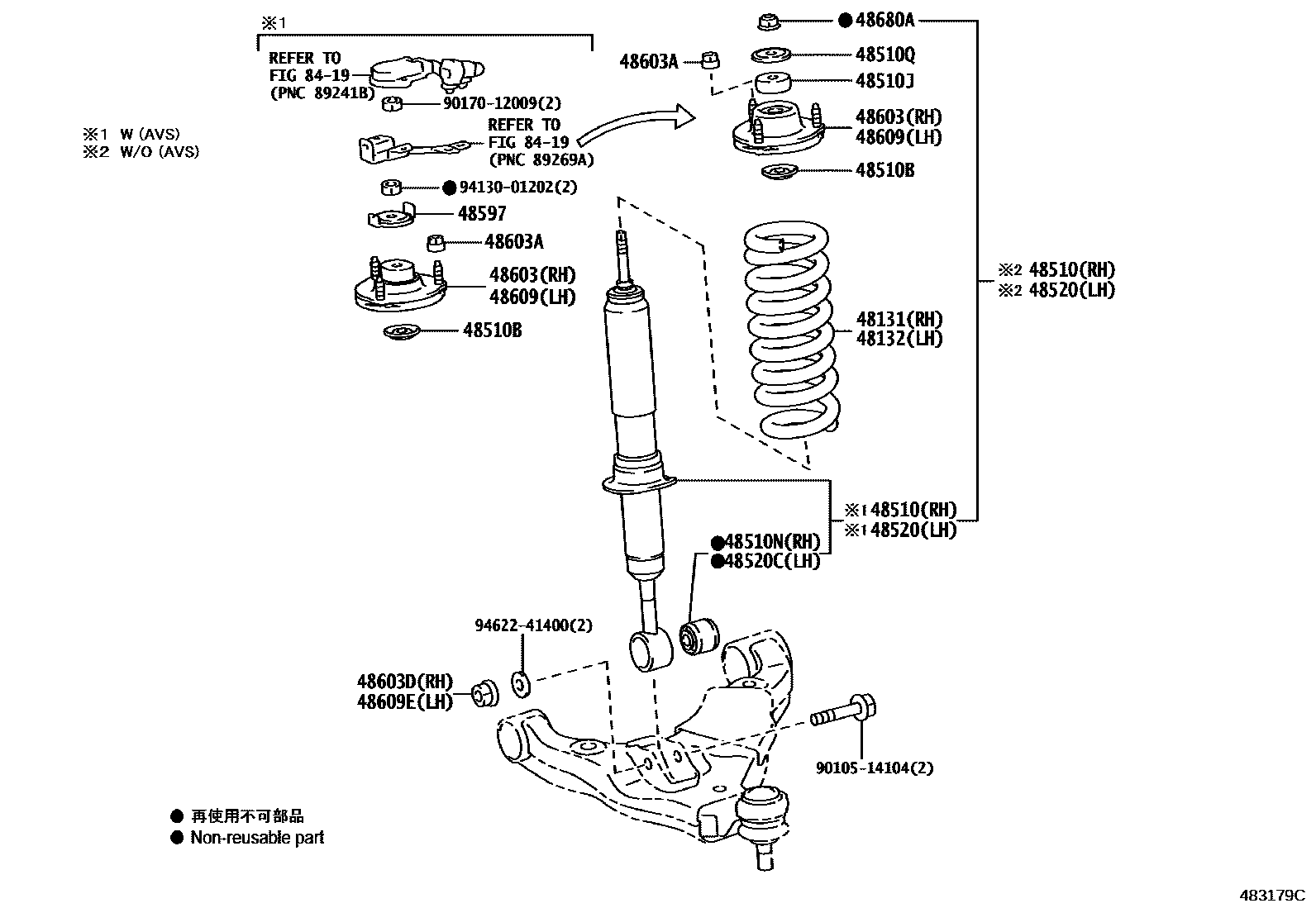

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-60G90i201908

main48131-60K30i201908

main48131-60J00i202008

COSTA RICA SPEC

48132SPRING, FRONT COIL, LH

main48131-60G80i201908

main48131-60K20i200911-201308

main48131-60G90i202008

COSTA RICA SPEC

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-60260i200911-201308

MARK 48510-60260

main48510-69485i200911-201203

MARK 48510-60290

main48510-69585i201308-201908

MARK 48510-60190

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02205×2i201908

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-01100×2i200911-201308

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main48536-60010i200911-201308

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-02161×2i201908

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-60260i201908

MARK 48510-60260

main48510-69485i200911-201203

MARK 48510-60290

main48510-69585i201908

MARK 48510-60190

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main48536-60010i200911-201308

48597RETAINER, SHOCK ABSORBER CUSHION

main48597-60140×2i200911-201308

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-60090i201308-201908

main48609-60100i201308-201908

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10014×6i201308-201908

main90178-10015×6i200911-201308

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90170-14032i200911-201308

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-60090i200911-201308

main48609-60100i200911-201308

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90170-14032i200911-201308

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94184-01241×2i200911-201308

8419ELECTRONIC MODULATED SUSPENSION

→ Go to FIG 84-19

9010514104

main90105-14104

9017012009

main90170-12009

9413001202

main94130-01202

9462241400

main94622-41400

21 parts on this diagram · 2 diagrams in section
