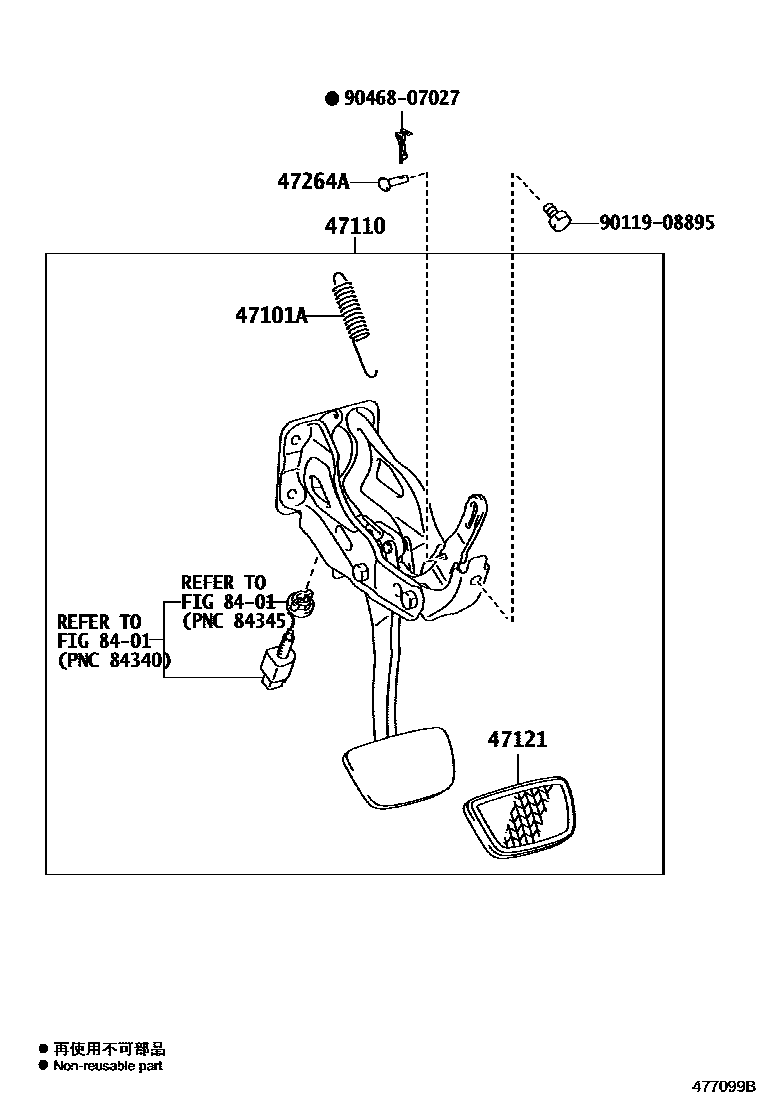

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-20034iURJ150200911-201308

47110SUPPORT ASSY, BRAKE PEDAL

main47110-60370iURJ150200911-201001

main47110-60371iURJ150201002-201308

main47110-60480iURJ150201308-201908

main47110-60700iURJ150201908

47121PAD, BRAKE PEDAL

main47121-50020iURJ150200911-201308

47264APIN(FOR PUSH ROD)

main90240-06027iURJ150200911-201308

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908895

main90119-08895

9046807027

main90468-07027

7 parts on this diagram · 1 diagram in section
