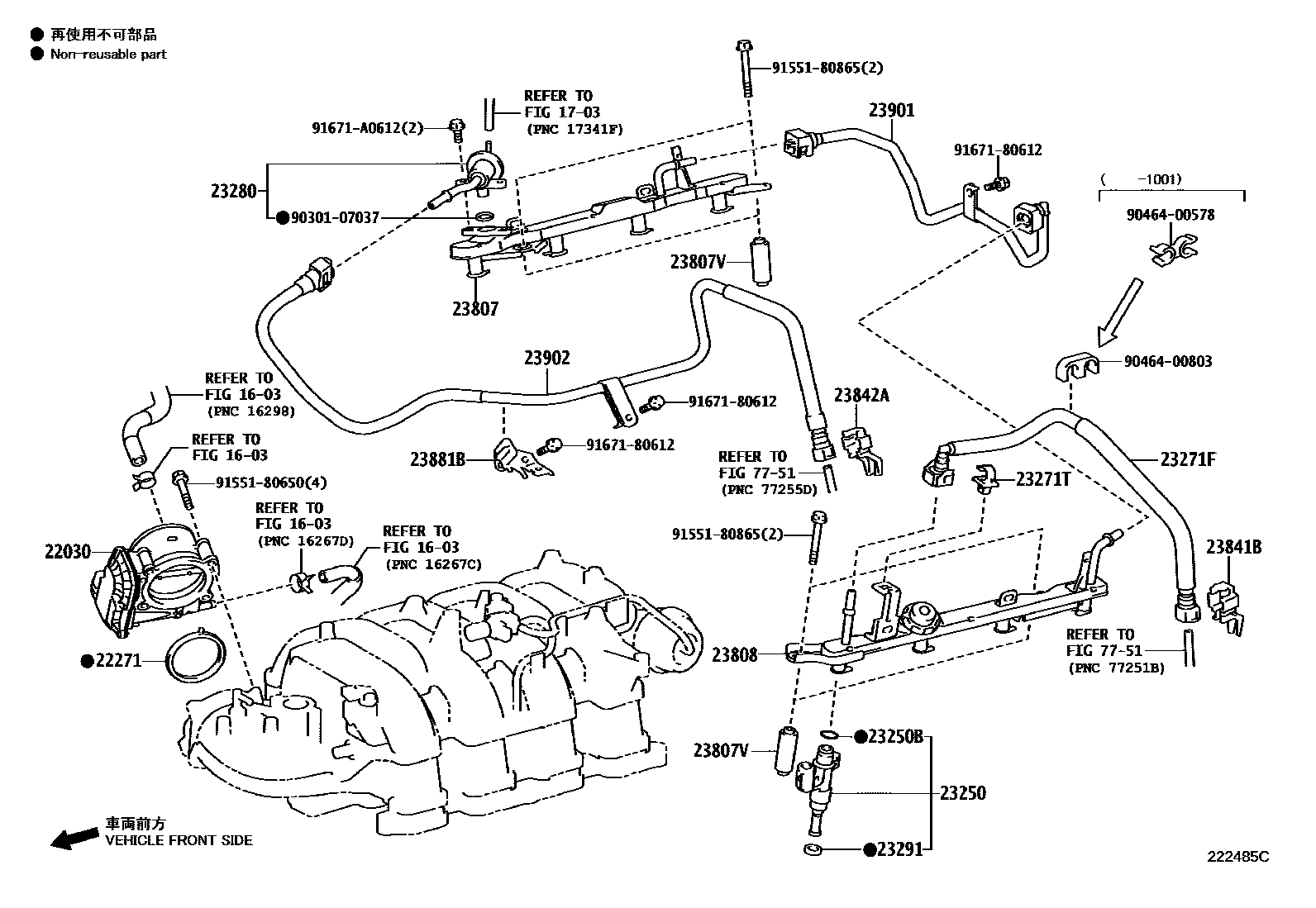

Toyota LEXUS GX460 — FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
1703AIR CLEANER
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23250BRING, O(FOR FUEL INJECTOR)
23271FHOSE, FUEL
23271TCLAMP OR CLIP(FOR FUEL HOSE)
23291INSULATOR, INJECTOR VIBRATION
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23881BBRACKET, FUEL HOSE
23901TUBE SUB-ASSY, FUEL
23902TUBE SUB-ASSY, FUEL
7751FUEL TANK & TUBE
9030107037
9046400578
9046400803
9155180650
9155180865
9167180612
91671A0612
26 parts on this diagram · 1 diagram in section
FUEL INJECTION SYSTEM for Toyota LEXUS GX460
This section contains 26 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota LEXUS GX460. Key components include: RADIATOR & WATER OUTLET, AIR CLEANER, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, GASKET, THROTTLE BODY, INJECTOR ASSY, FUEL.
