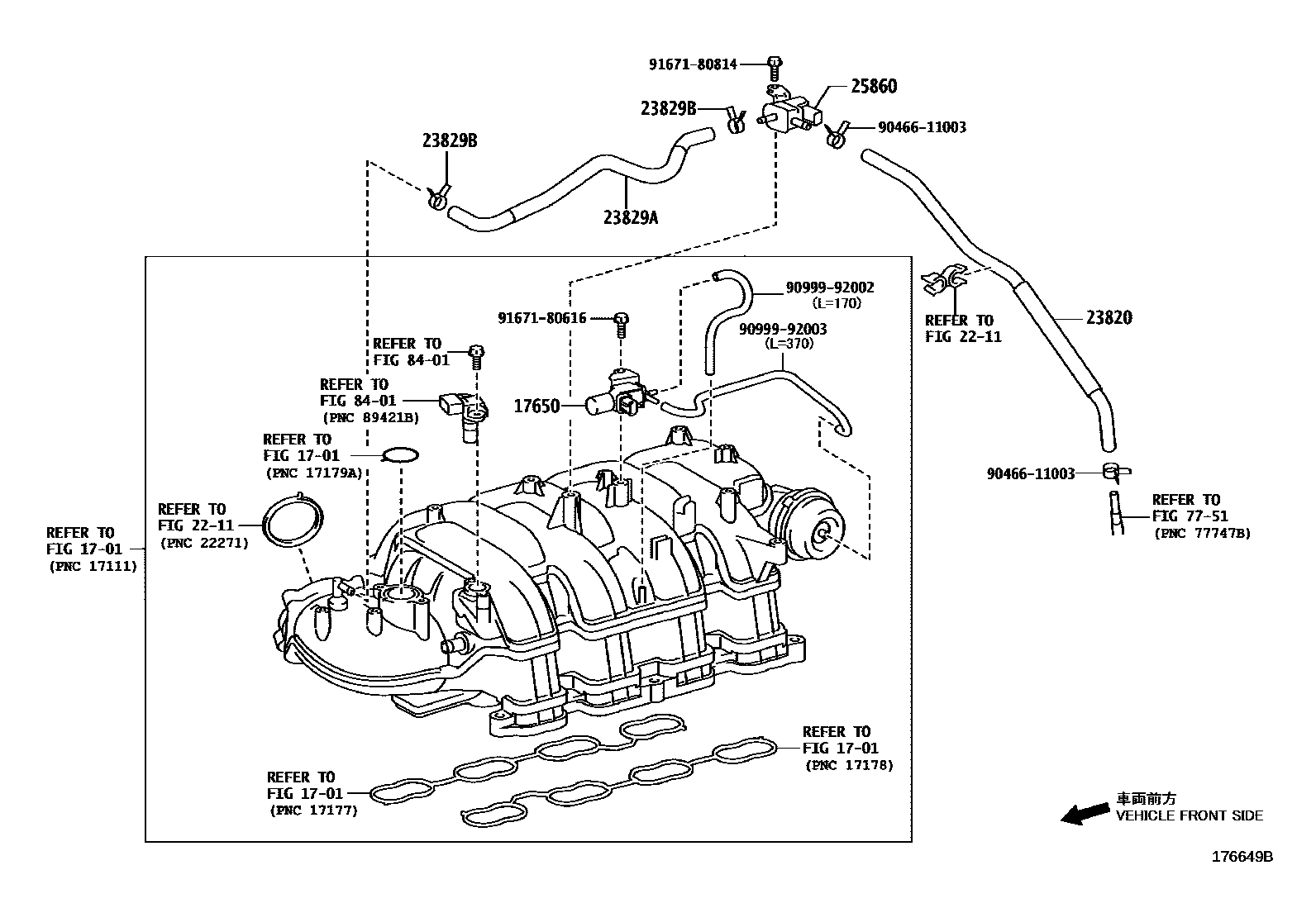

VACUUM PIPING

1701MANIFOLD

→ Go to FIG 17-01

17650VALVE ASSY, VACUUM SWITCHING

main25860-38010i1URFE..URJ150200911-201308

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

23820HOSE ASSY, FUEL VAPOR FEED

main23820-38010i1URFE..URJ150200911-201308

23829AHOSE, FUEL VAPOR FEED

main23829-38060i1URFE..URJ150200911-201308

main23829-38061i1URFE..URJ150202104

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96132-51300×2i1URFE..URJ150200911-201308

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31060i1URFE..URJ150200911-201308

7751FUEL TANK & TUBE

→ Go to FIG 77-51

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9046611003

main90466-11003

9099992002

main90999-92002

9099992003

main90999-92003

9167180616

main91671-80616

9167180814

main91671-80814

14 parts on this diagram · 1 diagram in section
