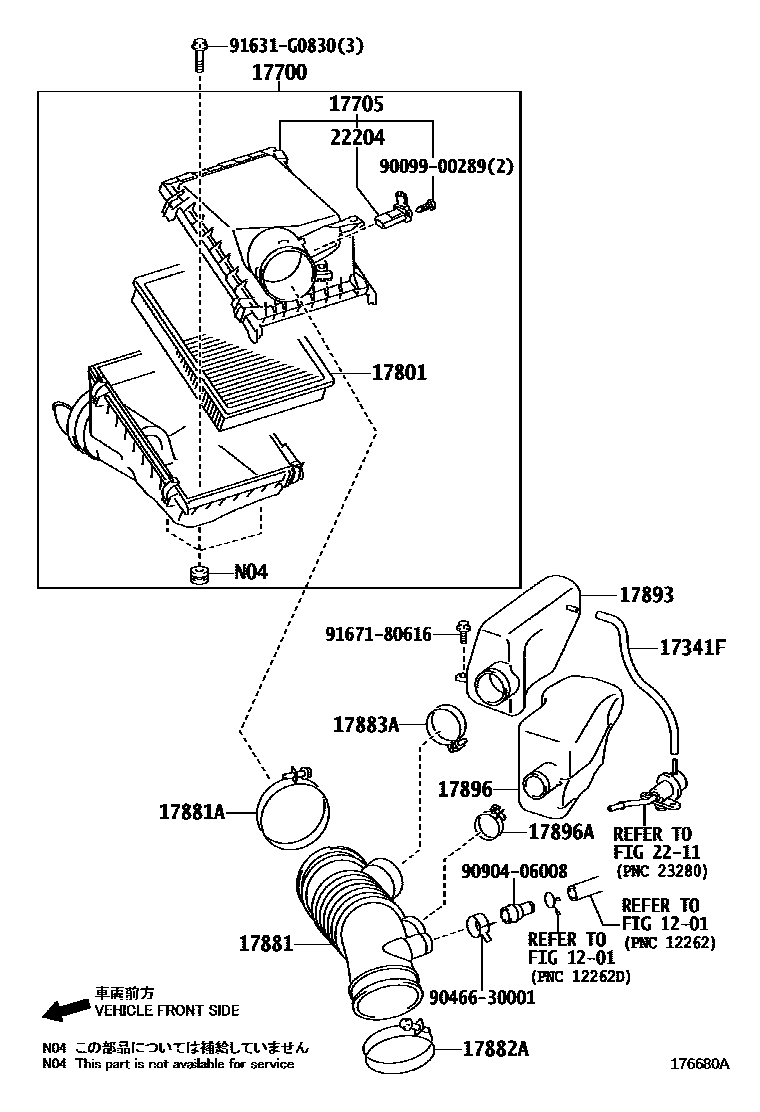

AIR CLEANER

1201VENTILATION HOSE

→ Go to FIG 12-01

17341FHOSE, AIR, NO.1

main17341-38060i1URFE..URJ150200911-201308

17700CLEANER ASSY, AIR

main17700-38210i1URFE..URJ150200911-201308

main17700-38211i1URFE..URJ150202208

17705CAP SUB-ASSY, AIR CLEANER

main17705-38150i1URFE..URJ150200911-201308

main17705-38240i1URFE..URJ150202208

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-38050i1URFE..URJ150200911-201106

main17801-38051i1URFE..URJ150201107-201308

17881HOSE, AIR CLEANER, NO.1

main17881-38050i1URFE..URJ150200911-201308

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-31060i1URFE..URJ150200911-201308

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-30980i1URFE..URJ150200911-201308

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main96111-10690i1URFE..URJ150200911-201308

17893RESONATOR, INTAKE AIR

main17893-38040i1URFE..URJ150200911-201308

17896RESONATOR, INTAKE AIR, NO.3

main17896-38010i1URFE..URJ150200911-201308

17896ACLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3)

main96111-10450i1URFE..URJ150200911-201308

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75030i1URFE..URJ150200911-201308

9009900289

main90099-00289

9046630001

main90466-30001

9090406008

main90904-06008

91631G0830

main91631-G0830

9167180616

main91671-80616

19 parts on this diagram · 1 diagram in section
