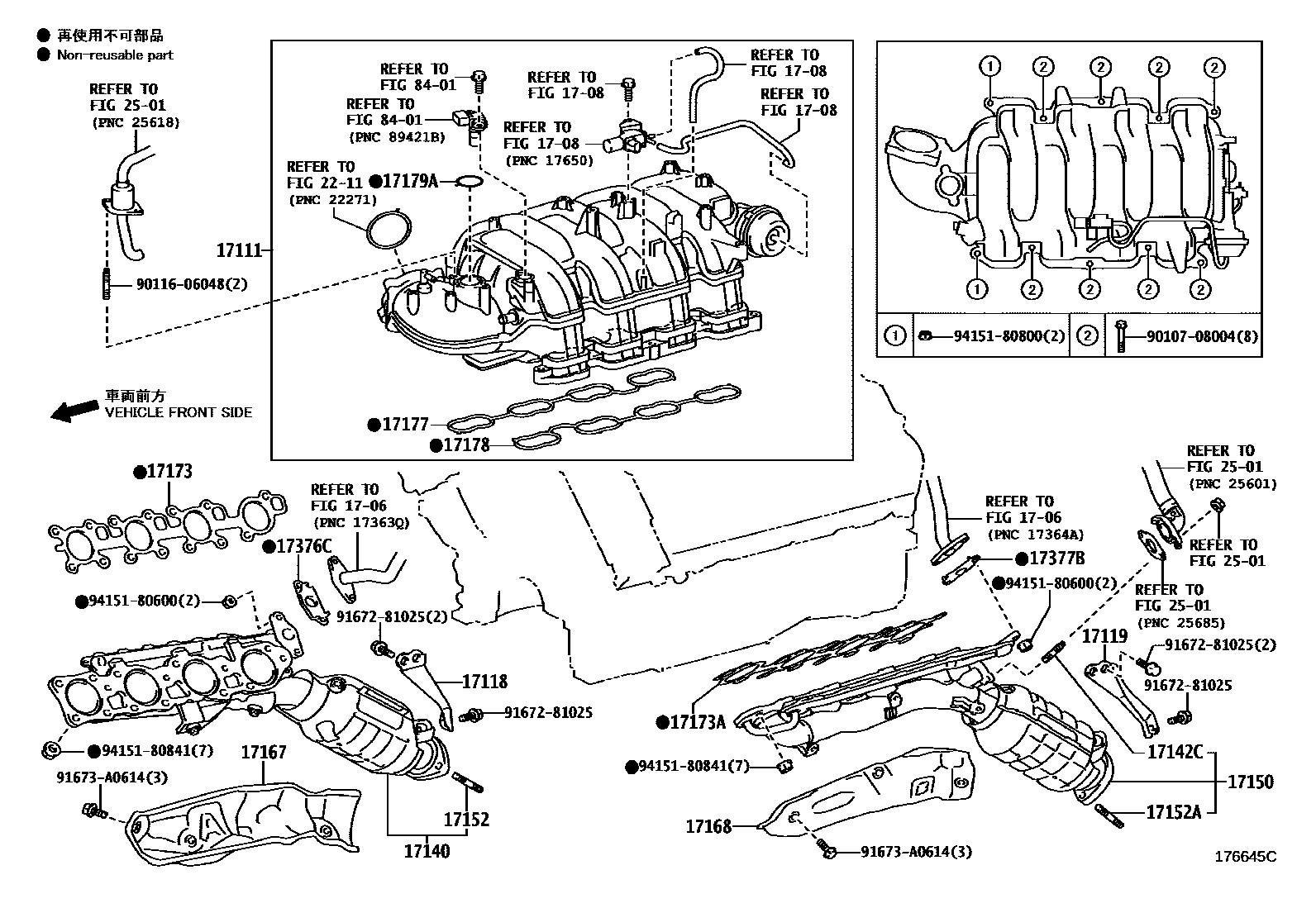

MANIFOLD
1706MANIFOLD AIR INJECTION SYSTEM
1708VACUUM PIPING
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17119STAY, MANIFOLD, NO.2
17140MANIFOLD ASSY, EXHAUST, RH
*114=TOYOTA/*248/Y
17142CBOLT, STUD(FOR EXHAUST MANIFOLD, LH)
17150MANIFOLD ASSY, EXHAUST, LH
*114=TOYOTA/*249/Y
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17152ABOLT,STUD(FOR MANIFOLD TO EXHAUST PIPE)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17179AGASKET, INTAKE MANIFOLD, NO.2
17376CGASKET, AIR TUBE
17377BGASKET, AIR TUBE, NO.2
2211FUEL INJECTION SYSTEM
2501EXHAUST GAS RECIRCULATION SYSTEM
8401SWITCH & RELAY & COMPUTER
9010708004
main90107-08004
9011606048
main90116-06048
9167281025
main91672-81025
91673A0614
main91673-A0614
9415180600
main94151-80600
9415180800
main94151-80800
9415180841
main94151-80841
29 parts on this diagram · 2 diagrams in section
