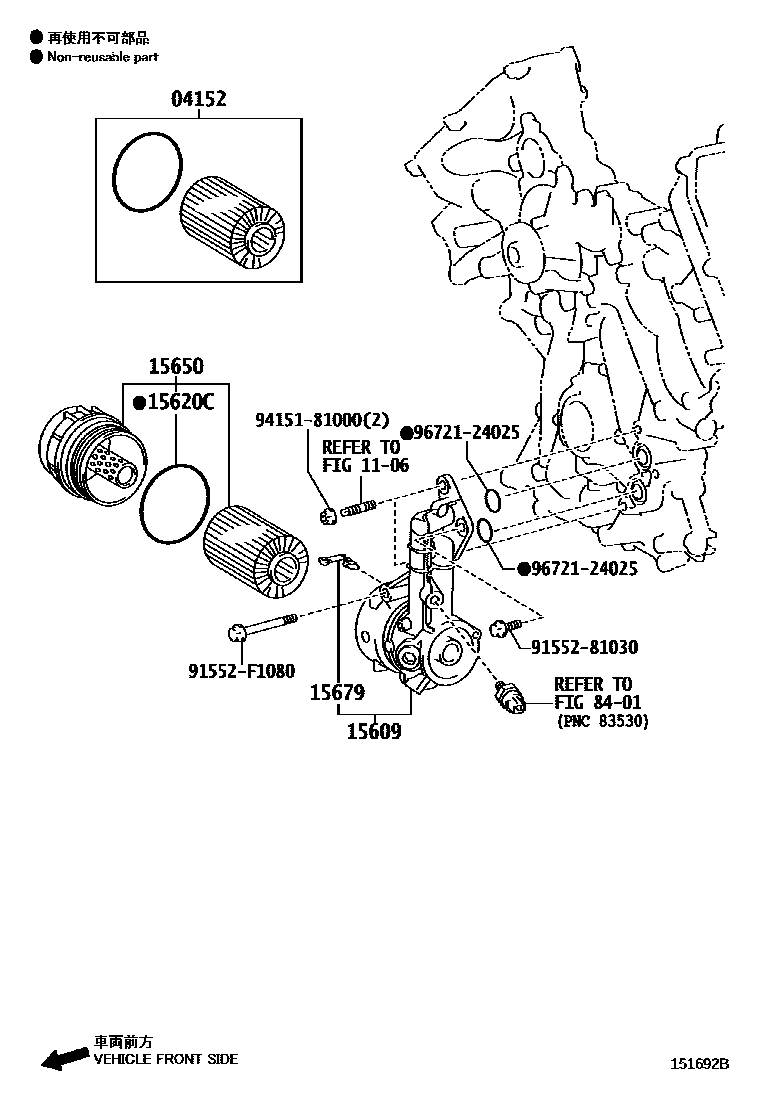

OIL FILTER

04152ELEMENT KIT, OIL FILTER

main04152-31080i1URFE..URJ150200911-201308

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15609BRACKET SUB-ASSY, OIL FILTER

main15609-38030i1URFE..URJ150200911-201308

15620CGASKET(FOR OIL FILTER CAP)

main90301-79006i1URFE..URJ150200911-201308

15650CAP ASSY, OIL FILTER W/ELEMEMT

main15650-38050i1URFE..URJ150200911-201308

15679CLIP, OIL FILTER BRACKET

main15679-37010i1URFE..URJ150200911-201308

main15679-37011i1URFE..URJ150201509-201908

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9155281030

main91552-81030

91552F1080

main91552-F1080

9415181000

main94151-81000

9672124025

main96721-24025

11 parts on this diagram · 1 diagram in section
