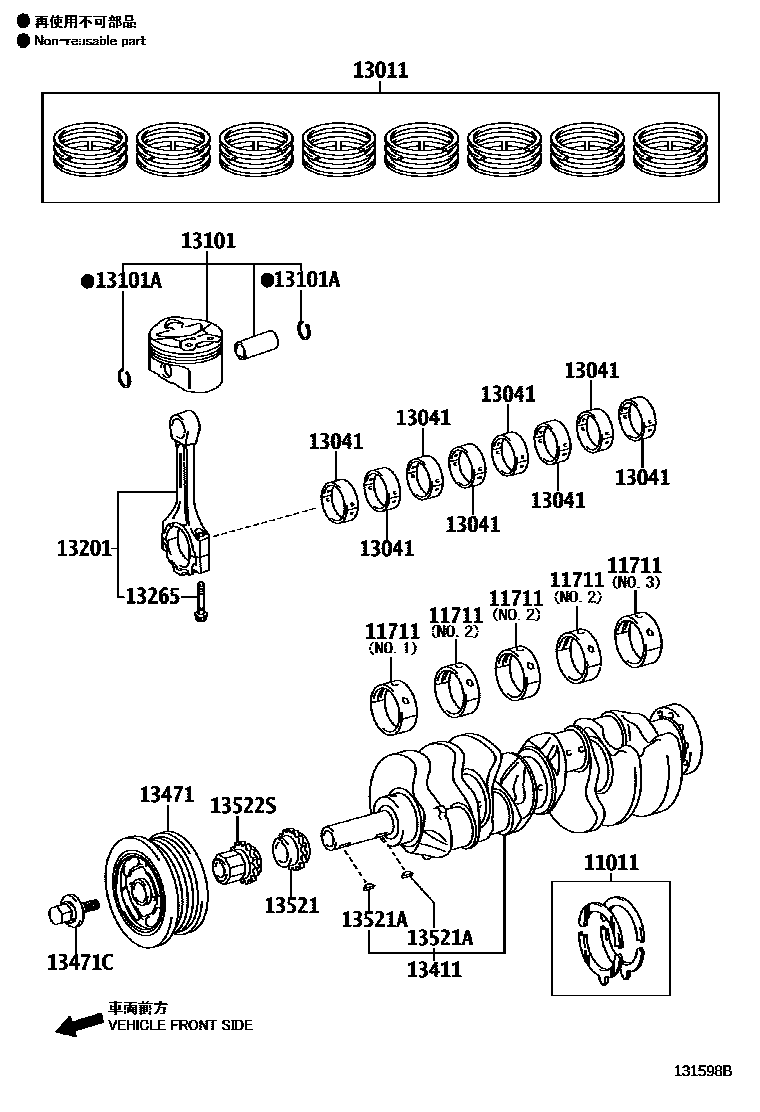

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
11711BEARING, CRANKSHAFT
MARKUPPER3LOWER4,NO.2,REFER R/M
MARKUPPER4LOWER4,NO.2,REFER R/M
MARKUPPER4LOWER5,NO.2,REFER R/M
MARKUPPER5LOWER5,NO.2,REFER R/M
MARKUPPER5LOEWR6,NO.2,REFER R/M
MARKUPPER6LOWER6,NO.2,REFER R/M
MARKUPPER6LOWER7,NO.2,REFER R/M
MARKUPPER7LOWER7,NO.2,REFER R/M
MARKUPPER7LOWER8,NO.2,REFER R/M
MARKUPPER8LOWER8,NO.2,REFER R/M
MARK UPPER 3 LOWER 4,NO.2,REFER R/M
MARK UPPER 4 LOWER 4,NO.2,REFER R/M
MARK UPPER 4 LOWER 5,NO.2,REFER R/M
MARK UPPER 5 LOWER 5,NO.2,REFER R/M
MARK UPPER 5 LOWER 6,NO.2,REFER R/M
MARK UPPER 6 LOWER 6,NO.2,REFER R/M
MARK UPPER 6 LOWER 7,NO.2,REFER R/M
MARK UPPER 7 LOWER 7,NO.2,REFER R/M
MARK UPPER 7 LOWER 8,NO.2,REFER R/M
MARK UPPER 8 LOWER 8,NO.2,REFER R/M
MARKUPPER4LOWER5,NO.1,3 *RRM
MARKUPPER5LOWER5,NO.1,3 *RRM
MARKUPPER5LOWER6,NO.1,3 *RRM
MARKUPPER6LOWER6,NO.1,3 *RRM
MARKUPPER6LOWER7,NO.1,3 *RRM
MARKUPPER7LOWER7,NO.1,3 *RRM
MARKUPPER7LOWER8,NO.1,3 *RRM
MARKUPPER8LOWER8,NO.1,3 *RRM
MARKUPPWE8LOWER9,NO.1,3 *RRM
MARKUPPER9LOWER9,NO.1,3 *RRM
MARK UPPER 4 LOWER 5,NO.1,3 *RRM
MARK UPPER 5 LOWER 5,NO.1,3 *RRM
MARK UPPER 5 LOWER 6,NO.1,3 *RRM
MARK UPPER 6 LOWER 6,NO.1,3 *RRM
MARK UPPER 6 LOWER 7,NO.1,3 *RRM
MARK UPPER 7 LOWER 7,NO.1,3 *RRM
MARK UPPER 7 LOWER 8,NO.1,3 *RRM
MARK UPPER 8 LOWER 8,NO.1,3 *RRM
MARK UPPER 8 LOWER 9,NO.1,3 *RRM
MARK UPPER 9 LOWER 9,NO.1,3 *RRM
13011RING SET, PISTON
STD
13041BEARING, CONNECTING ROD
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
MARK6,REFER REPAIR MANUAL
MARK7,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13265BOLT, CONNECTING ROD
13411CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13522SSPROCKET, CRANKSHAFT TIMING, LH
14 parts on this diagram · 1 diagram in section
