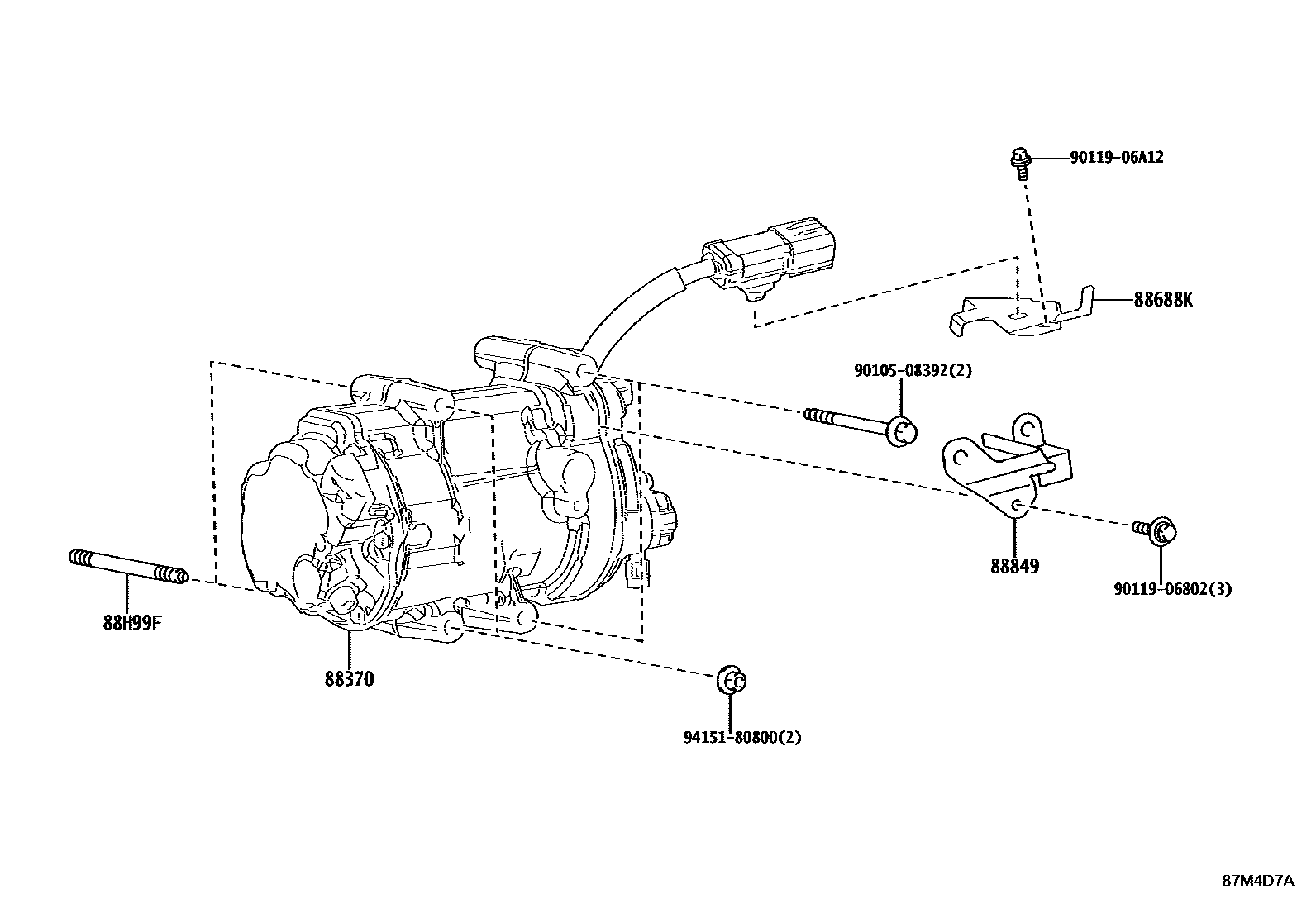

HEATING & AIR CONDITIONING - COMPRESSOR

88370COMPRESSOR ASSY, W/MOTOR

main88370-60010supersedes 88370-60020iTJH250202402

REAR AIR CONDITIONER-WITH

88688KBRACKET, COOLER COMPRESSOR

main88688-60D90iTJH250202402

88849BRACKET, COOLER COMPRESSOR, NO.2

main88688-60F10iTJH250202402

88H99FBOLT, STUD

main88899-44010×2iTJH250202402

9010508392

main90105-08392

9011906802

main90119-06802

9011906A12

main90119-06A12

9415180800

main94151-80800

8 parts on this diagram · 1 diagram in section
