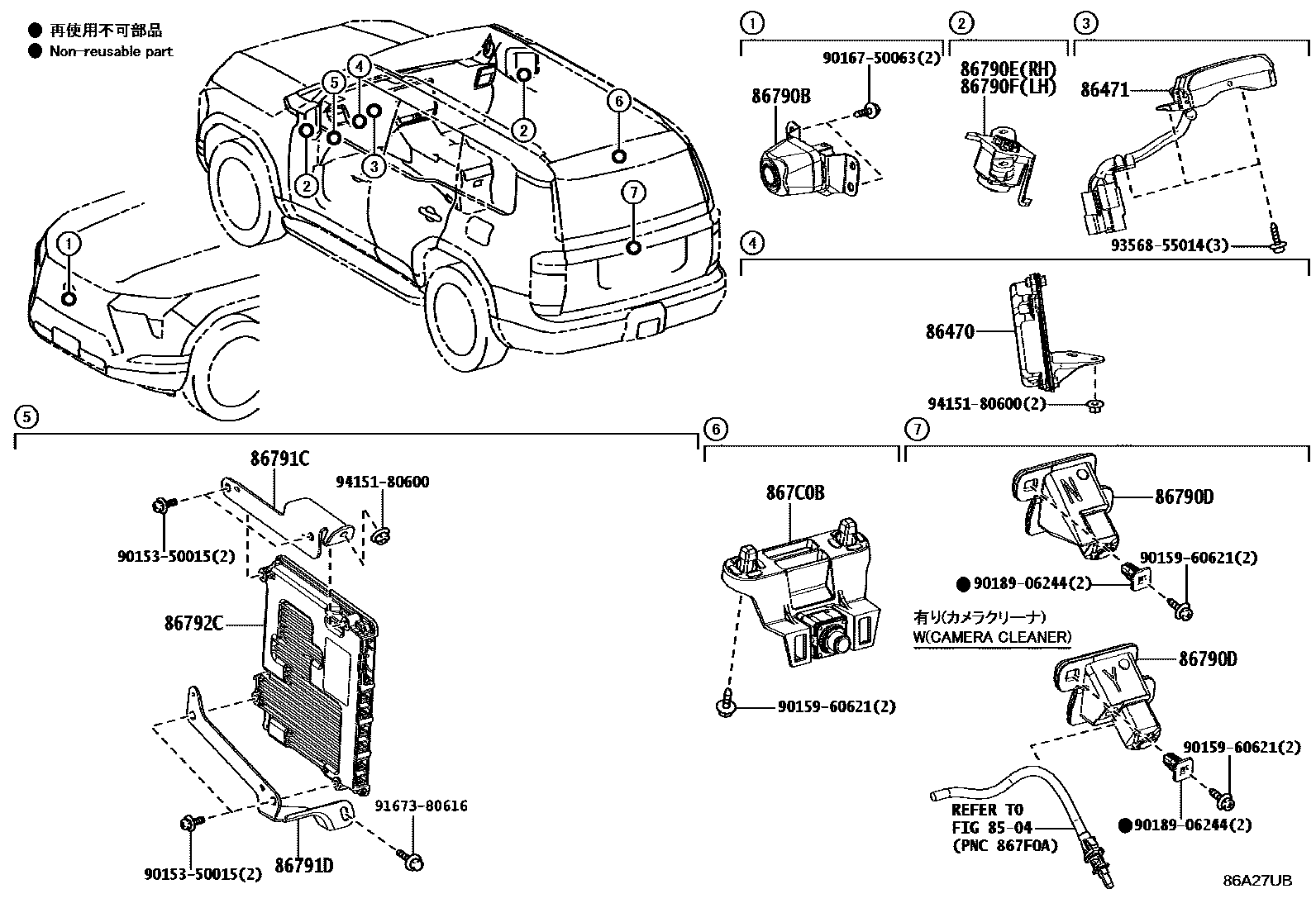

CAMERA & REAR MONITOR DISPLAY

8504

86470COMPUTER ASSY, DRIVER MONITOR

main86470-60030iTJH250..A202402

PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR CAMERA)

86471CAMERA, DRIVER MONITOR

main86471-30040iTJH250..A202402

PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR CAMERA)

86790BCAMERA ASSY, TELEVISION, FR

main86790-60540iTJH250..A202402

86790DCAMERA ASSY, TELEVISION, RR

main86790-60520iTJH250..A202402

main86790-60560iTJH250..U202402

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-60531iTJH250..A202402

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-60581iTJH250..A202402

86791CBRACKET, COMPUTER PARKING ASSIST, NO.1

main86791-60250iTJH250..A202402

86791DBRACKET, COMPUTER PARKING ASSIST, NO.2

main86791-60260iTJH250..A202402

86792CCOMPUTER, PARKING ASSIST

main86792-60A00iTJH250..A202402-202508

867C0BCAMERA ASSY, INNER MIRROR, RR

main867C0-60050iTJH250..A202402

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

9015350015

main90153-50015

9015960621

main90159-60621

9016750063

main90167-50063

9018906244

main90189-06244

9356855014

main93568-55014

9415180600

main94151-80600

17 parts on this diagram · 1 diagram in section
