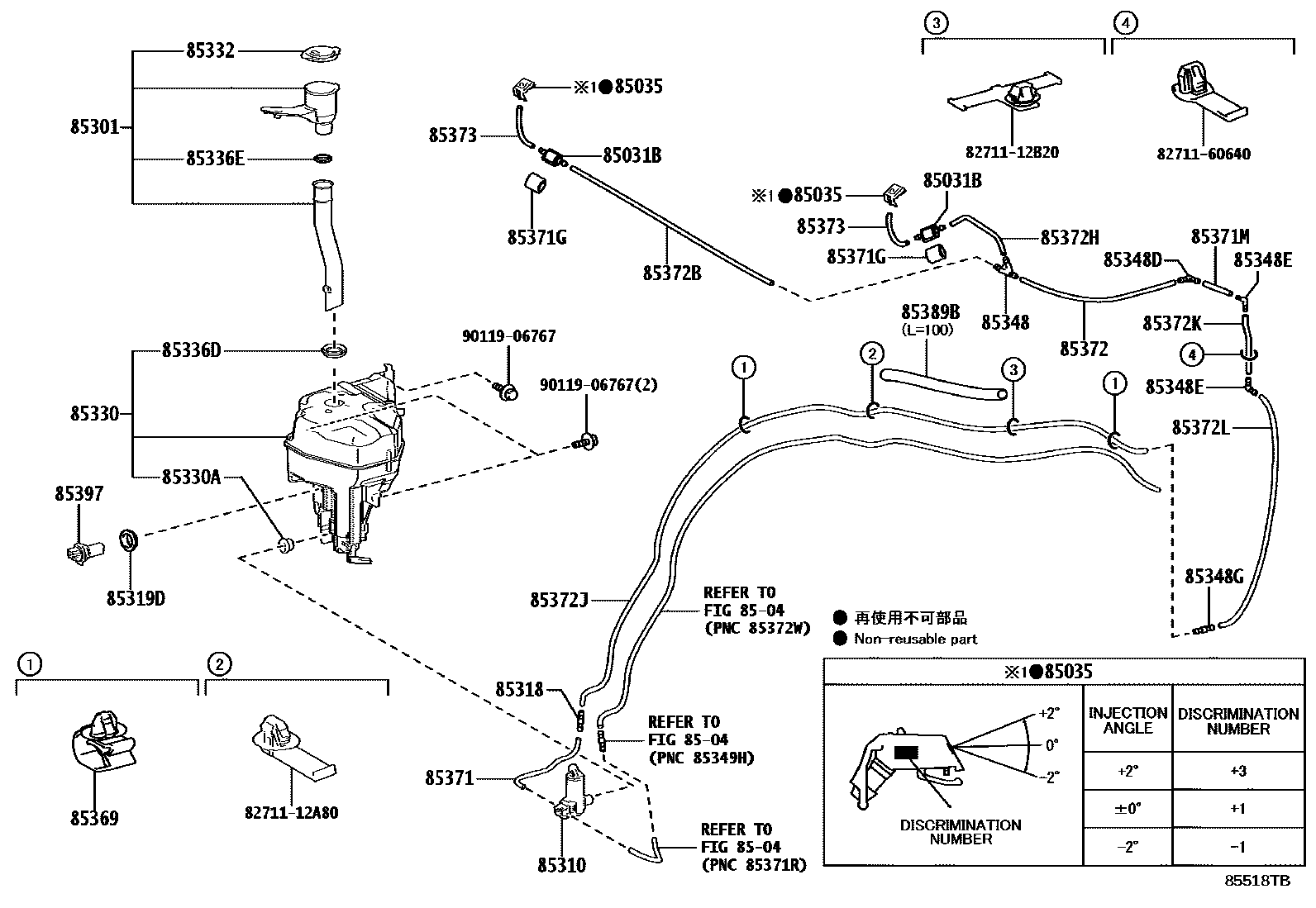

WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85321-26020×2iTJH250202402

85035NOZZLE SUB-ASSY, WASHER

main85381-28220×2iTJH250202402

ANGLE 0

main85381-28230×2iTJH250202402

ANGLE +2

main85381-28240×2iTJH250202402

ANGLE -2

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-60120iTJH250202402

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47100iTJH250202402

85318JOINT, WINDSHIELD WASHER MOTOR

main85349-89122iTJH250202402

85319DPACKING, FRONT WASHER

main85319-33230iTJH250202402

85330JAR ASSY, WINDSHIELD WASHER

main85315-60500iTJH250202402

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iTJH250202402

85332CAP, WINDSHIELD WASHER JAR

main85316-24130iTJH250202402

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160iTJH250202402

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320iTJH250202402

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85378-33410iTJH250202402

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200iTJH250202402

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200×2iTJH250202402

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iTJH250202402

85369CLAMP

main82711-16790×2iTJH250202402

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iTJH250202402

L=1450(*H,L=200)

85371GPROTECTOR, FRONT WASHER

main85389-26080×2iTJH250202402

85371MHOSE, WINDSHIELD WASHER (FROM JOINT TO TANK)

main90099-33080iTJH250202402

L=1450(*H,L=60)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iTJH250202402

L=1450(*H,L=310)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iTJH250202402

L=1450(*H,L=610)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iTJH250202402

L=1450(*H,L=170)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33902iTJH250202402

L=1160

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90099-33080iTJH250202402

L=1450(*H,L=110)

85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6

main90099-33080iTJH250202402

L=1450(*H,L=410)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iTJH250202402

L=1450(*H,L=80)

85389BPROTECTOR, WINDSHIELD WASHER

main85389-60830iTJH250202402

85397SWITCH ASSY,LEVEL WARNING

main85397-52100iTJH250202402

8271112A80WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12A80

8271112B20WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12B20

8271160640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60640

9011906767

main90119-06767

33 parts on this diagram · 1 diagram in section
