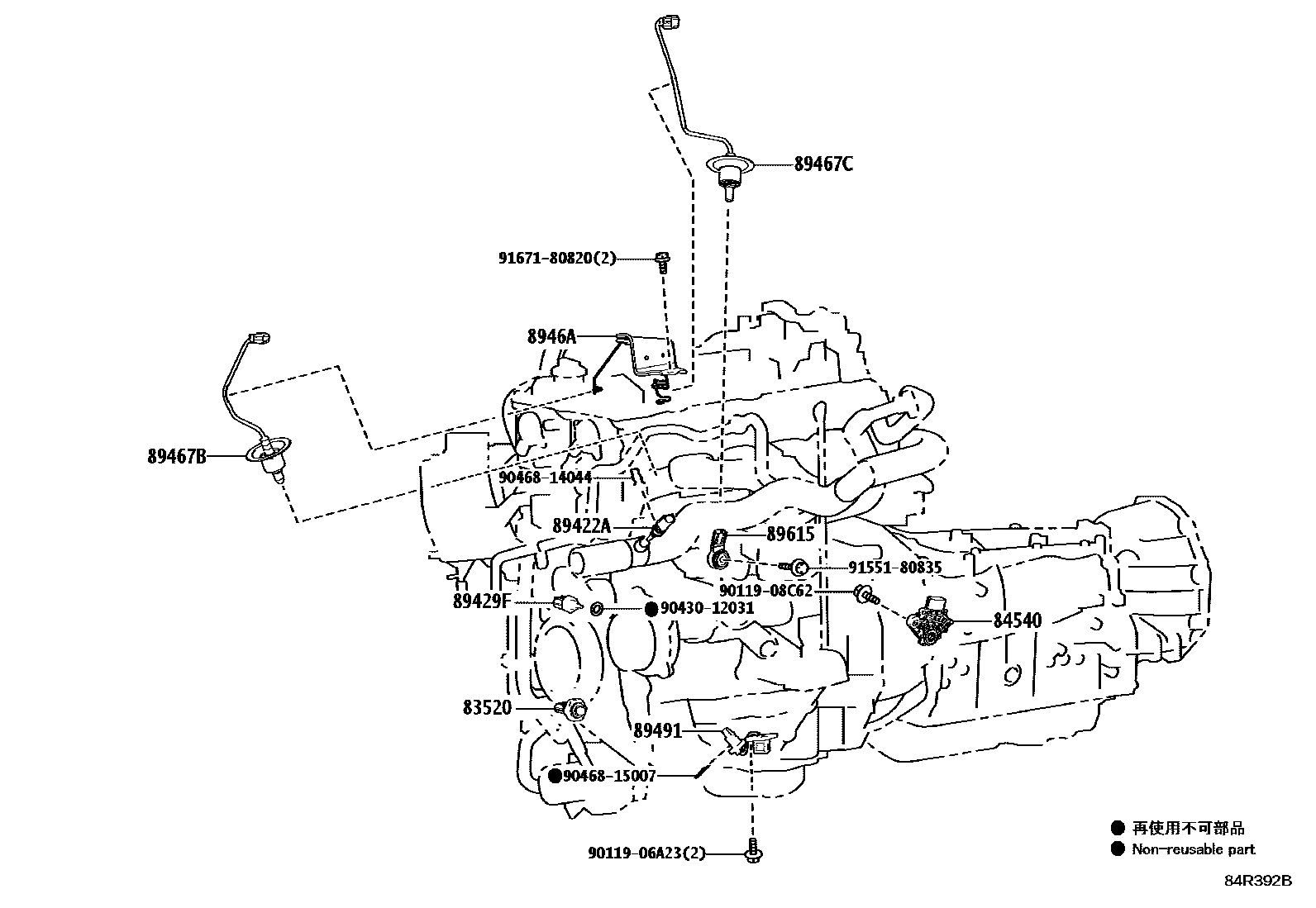

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1CONSOLE BOX 0007 1STEERING 0008 1FRONT SEAT 0009 1REAR NO.1 SEAT 0010 1DOOR & ROOF 0011 1FLOOR & BACK DOOR

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60070iTJH250202402

84540SWITCH ASSY, NEUTRAL START

main84540-60080iTJH250202402

89422ASENSOR, WATER TEMPERATURE

main89422-33040iTJH250202402

89429FSENSOR, TEMPERATURE

main89429-12010iTJH250202402

89467BSENSOR, AIR FUEL RATIO

main89467-60270iTJH250202402

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-60280iTJH250202402

8946ABRACKET, EXHAUST SENSOR CLAMP

main8946A-35010iTJH250202402

89491SENSOR, ENGINE OIL LEVEL

main89491-33052iTJH250202402

89615SENSOR, KNOCK CONTROL

main89615-78010iTJH250202402

9011906A23

main90119-06A23

9011908C62

main90119-08C62

9043012031

main90430-12031

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

9167180820

main91671-80820

16 parts on this diagram · 11 diagrams in section
