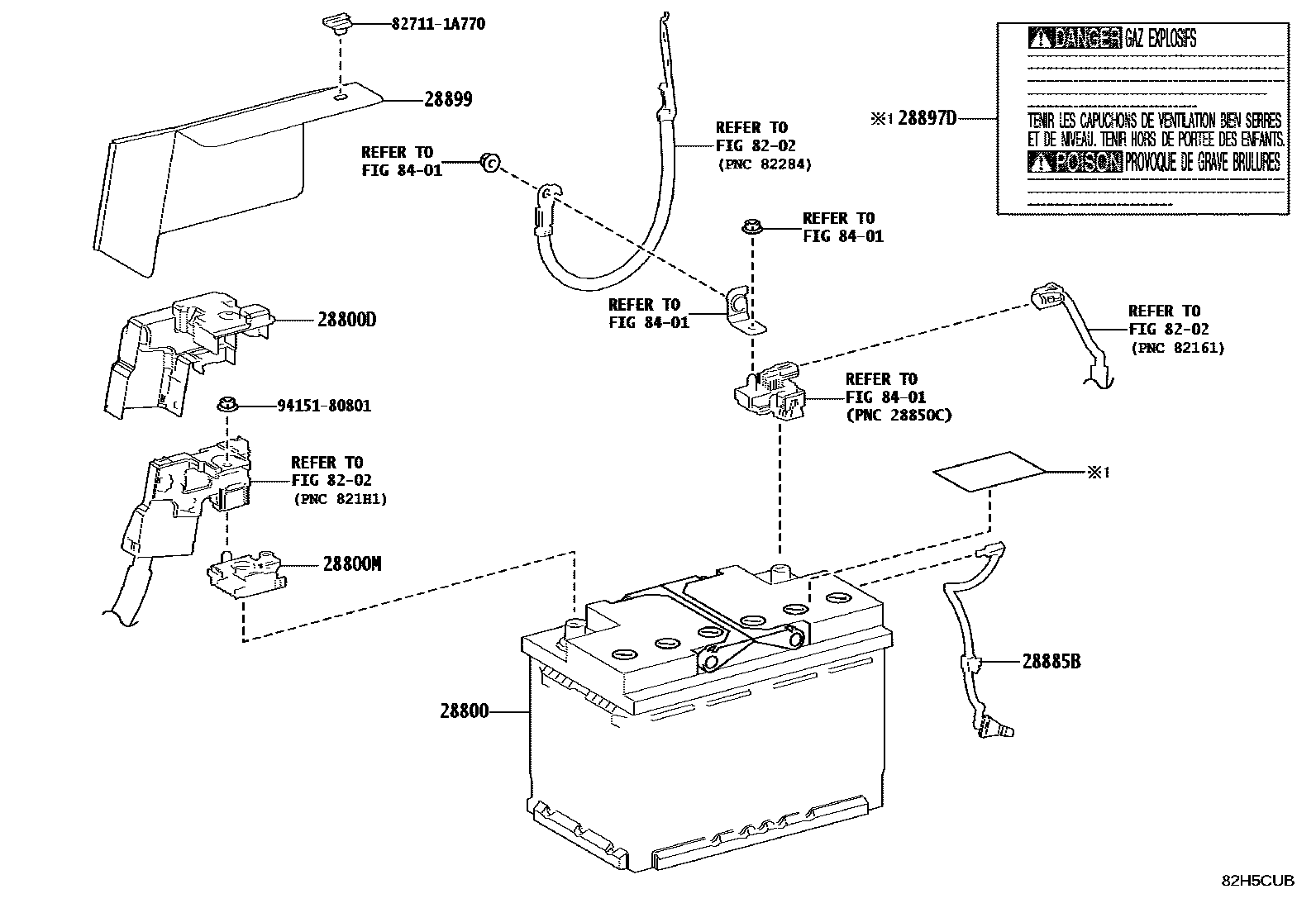

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY 0003 1HV BATTERY 0004 1HV BATTERY

28800BATTERY

main28800-31452iT24..TJH250202402-202403

LN3

main28800-31453iT24..TJH250202403

LN3

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-60090iT24..TJH250202402

28800MTERMINAL, BATTERY POSITIVE

main82675-60300iT24..TJH250202402

28885BHOSE, BATTERY

main28885-11010iT24..TJH250202402

28897DLABEL, BATTERY CAUTION

main28897-24020iT24..TJH250202412

DESTINATION PACKAGE(OTHER-CANADA SPEC

main28897-46020iT24..TJH250202402-202411

DESTINATION PACKAGE(OTHER-CANADA SPEC

28899INSULATOR, BATTERY

main28877-25010iT24..TJH250202402

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

9415180801

main94151-80801

10 parts on this diagram · 4 diagrams in section
