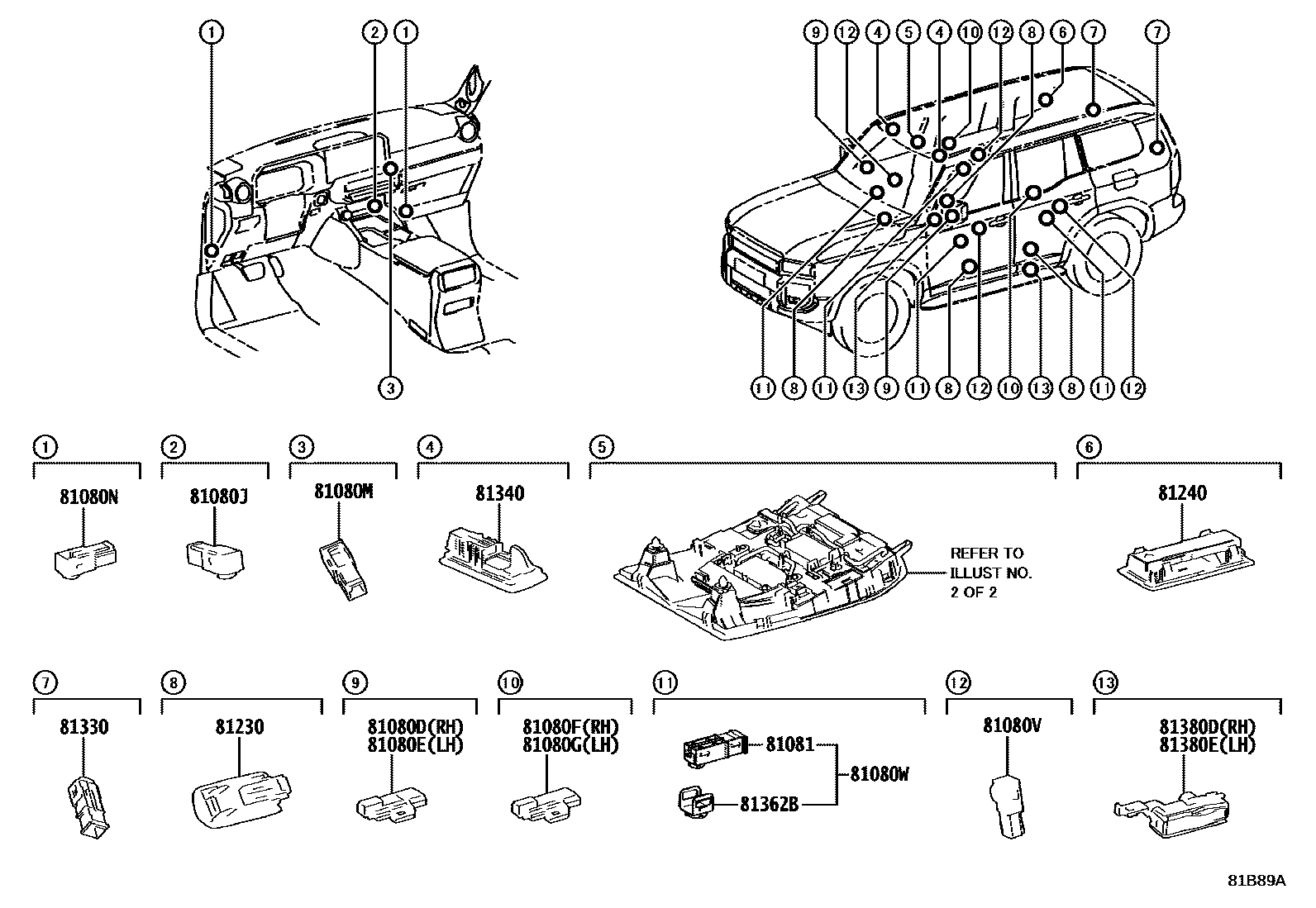

INTERIOR LAMP

0001 1 0002 1

81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH

81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH

81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH

81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33290iTJH250202402

81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1

81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81080-46020iTJH250..A202402

81080WLAMP ASSY, INTERIOR ILLUMINATION, NO.3

81081LAMP SUB-ASSY, INTERIOR ILLUMINATION

main81081-60050

81230LAMP ASSY, COURTESY

main81230-11030iTJH250202402

81240LAMP ASSY, ROOM, NO.1

main81240-28090-C0iTJH250..U202402

BLACK,TRIM2#

main81240-28090-C0iTJH250..U202402

BLACK,TRIM2#,4#

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-78011iTJH250202402

81340LAMP ASSY, VANITY

main81340-33170iTJH250202402

81362BLENS, INTERIOR ILLUMINATION LAMP

81380DLAMP ASSY, STEP

81380EBULB (FOR STEP LAMP)

17 parts on this diagram · 2 diagrams in section
