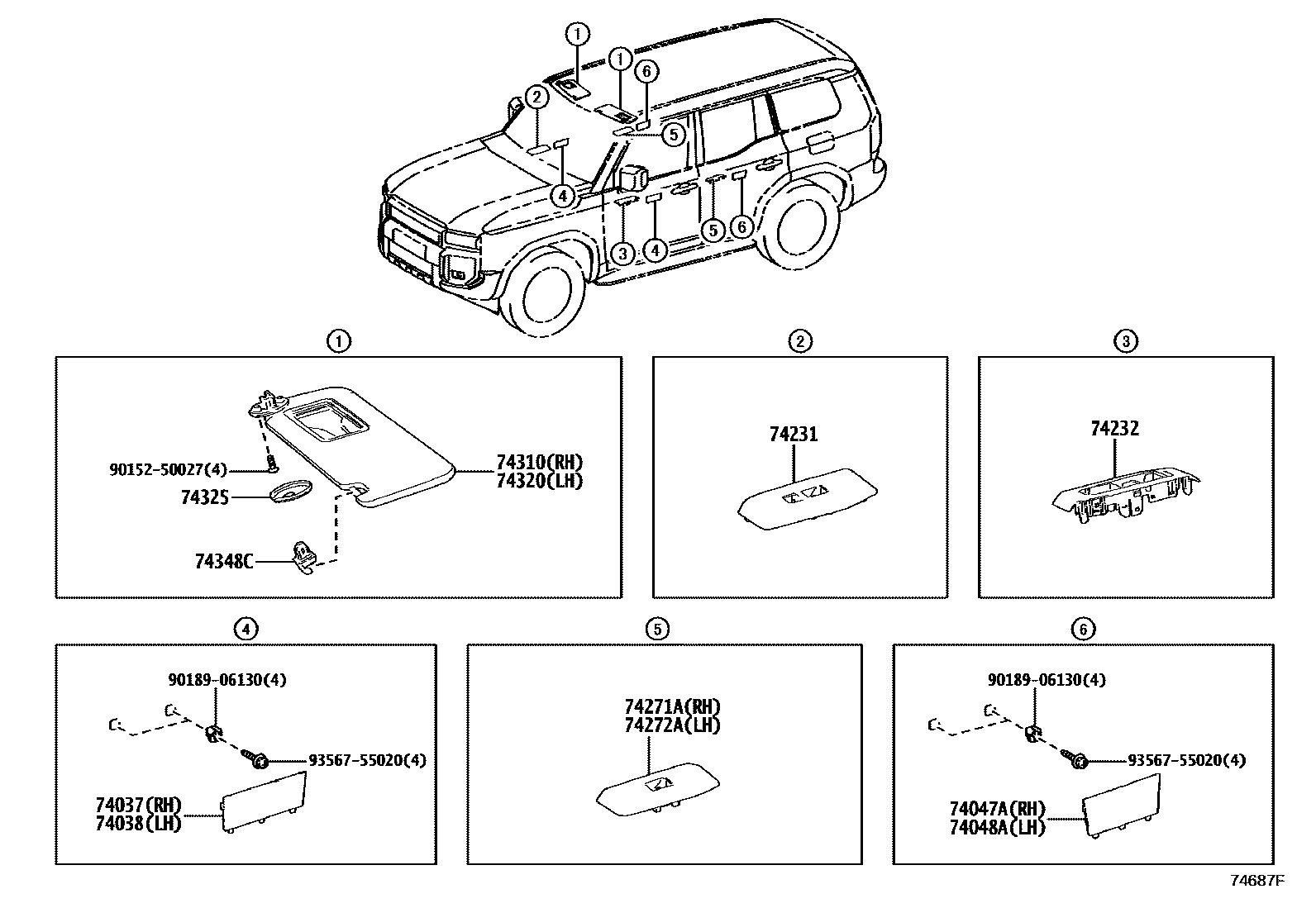

ARMREST & VISOR
74037COVER SUB-ASSY, FRONT DOOR ARMREST, RH
74038COVER SUB-ASSY, FRONT DOOR ARMREST, LH
74047ACOVER SUB-ASSY, REAR DOOR ARMREST, RH
74048ACOVER SUB-ASSY, REAR DOOR ARMREST, LH
74231PANEL, FRONT ARMREST BASE, UPPER RH
74232PANEL, FRONT ARMREST BASE, UPPER LH
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
74310VISOR ASSY, RH
BLACK,TRIM2#
BLACK,TRIM2#,4#
74320VISOR ASSY, LH
BLACK,TRIM2#
BLACK,TRIM2#,4#
74325COVER, VISOR BRACKET
BLACK,TRIM2#
BLACK,TRIM2#,4#
74348CHOLDER, VISOR, LH
BLACK,TRIM2#
BLACK,TRIM2#,4#
9015250027
main90152-50027
9018906130
main90189-06130
9356755020
main93567-55020
15 parts on this diagram · 3 diagrams in section
