71077COVER SUB-ASSY, REAR NO.1 SEATBACK, RH

main71077-60X60-C6i202402

BLACK,TRIM2#

main71077-60Y00-C6supersedes 71077-60X80-C7i202402

HIGH GRADE PACKAGE FOR ADV&FIRST EDITION PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER(FOR SPECIAL EDITION),BLACK,TRIM2#; HIGH GRADE PACKAGE FOR ADV&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71077-60Y00-E4supersedes 71077-60X80-E7i202402

HIGH GRADE PACKAGE FOR ADV&FIRST EDITION PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER(FOR SPECIAL EDITION),DK.CHESTNUT,TRIM4#; HIGH GRADE PACKAGE FOR ADV&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER,DK.CHESTNUT,TRIM4#

main71077-60Y20-C6supersedes 71077-60X80-C7i202402

HIGH GRADE PACKAGE FOR ADV&FIRST EDITION PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&REAR SEAT-6:4 TUMBLE & 5:5&SEAT COVER MATERIAL-LEATHER(FOR SPECIAL EDITION)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM2#; HIGH GRADE PACKAGE FOR ADV&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&REAR SEAT-6:4 TUMBLE & 5:5&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(FRONT SEAT &REAR SEAT),BLACK,TRIM2#

main71077-60Y20-E4supersedes 71077-60X80-E7i202402

HIGH GRADE PACKAGE FOR ADV&FIRST EDITION PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&REAR SEAT-6:4 TUMBLE & 5:5&SEAT COVER MATERIAL-LEATHER(FOR SPECIAL EDITION)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),DK.CHESTNUT,TRIM4#; HIGH GRADE PACKAGE FOR ADV&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&REAR SEAT-6:4 TUMBLE & 5:5&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(FRONT SEAT &REAR SEAT),DK.CHESTNUT,TRIM4#

71485ECOVER, REAR SEAT HINGE

main71485-60130-C0i202402

BLACK,TRIM2#; BLACK,TRIM2#,4#

71486FCOVER, REAR SEAT HINGE, LH

main71486-60110-C0i202402

BLACK,TRIM2#; BLACK,TRIM2#,4#

7152SEAT BELT

→ Go to FIG 71-52

71701ABOARD SUB-ASSY, REAR SEATBACK, RH

main71701-60350i202402

71833SCOVER, REAR SEAT RECLINING, NO.1 RH

main71833-60360-C0i202402

BLACK,TRIM2#; BLACK,TRIM2#,4#

71844MCOVER, REAR SEAT RECLINING, NO.2 LH

main71834-60360-C0i202402

BLACK,TRIM2#; BLACK,TRIM2#,4#

71845FCAP, REAR SEAT COVER

main71845-60040-C0×2i202402

BLACK,TRIM2#; BLACK,TRIM2#,4#

71875XCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-60310i202402

71930QSUPPORT ASSY, REAR SEAT HEADREST

main71930-28050-C0×4i202402

W(LOCK),BLACK,TRIM2#; W(LOCK),BLACK,TRIM2#,4#

main71931-28060-C0×2i202402

W/O(LOCK),BLACK,TRIM2#; W/O(LOCK),BLACK,TRIM2#,4#

71940MHEADREST ASSY, REAR SEAT

main71940-60D10-C4×2i202402

BLACK,TRIM2#

main71940-60D20-C5×2i202402

BLACK,TRIM2#

main71940-60D20-E3×2i202402

DK.CHESTNUT,TRIM4#

71960GHEADREST ASSY, REAR NO.1 SEAT, CENTER

main71960-60A00-C5i202402

BLACK,TRIM2#

main71960-60A10-C4i202402

BLACK,TRIM2#

main71960-60A10-E3i202402

DK.CHESTNUT,TRIM4#

71T76BCOVER, RECLINING ADJUSTER INSIDE, LH

main71876-60380i202402

72057ELEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.1

main72057-60230-C0×2i202402

BLACK,TRIM2#; BLACK,TRIM2#,4#

72329FCOVER, REAR SEAT ADJUSTER BOLT

main72329-60140-C0i202402

BLACK,TRIM2#; BLACK,TRIM2#,4#

72525RHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-60160-C0i202402

BLACK,TRIM2#; BLACK,TRIM2#,4#

72551FCOVER, RECLINING LINK, RH NO.1

main72551-60190-C0i202402

BLACK,TRIM2#; BLACK,TRIM2#,4#

72552FCOVER, RECLINING LINK, LH NO.1

main72552-60170-C0i202402

BLACK,TRIM2#; BLACK,TRIM2#,4#

72806EHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-78010-C0i202402

BLACK,TRIM2#; BLACK,TRIM2#,4#

72830XARMREST ASSY, REAR SEAT, CENTER

main72830-60E00-C8i202402

BLACK/BLACK,TRIM2#

main72830-60G20-C4supersedes 72830-60G10-C7i202402

HIGH GRADE PACKAGE FOR ADV&FIRST EDITION PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&REAR SEAT-6:4 TUMBLE & 5:5&SEAT COVER MATERIAL-LEATHER(FOR SPECIAL EDITION)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),BLACK/BLACK,TRIM2#; HIGH GRADE PACKAGE FOR ADV&FIRST EDITION PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER(FOR SPECIAL EDITION),BLACK/BLACK,TRIM2#; HIGH GRADE PACKAGE FOR ADV&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&REAR SEAT-6:4 TUMBLE & 5:5&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(FRONT SEAT &REAR SEAT),BLACK/BLACK,TRIM2#; HIGH GRADE PACKAGE FOR ADV&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER,BLACK/BLACK,TRIM2#

main72830-60G20-C6supersedes 72830-60G10-C8i202402

HIGH GRADE PACKAGE FOR ADV&FIRST EDITION PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&REAR SEAT-6:4 TUMBLE & 5:5&SEAT COVER MATERIAL-LEATHER(FOR SPECIAL EDITION)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),BLACK/DK.CHESTNUT,TRIM4#; HIGH GRADE PACKAGE FOR ADV&FIRST EDITION PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER(FOR SPECIAL EDITION),BLACK/DK.CHESTNUT,TRIM4#; HIGH GRADE PACKAGE FOR ADV&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&REAR SEAT-6:4 TUMBLE & 5:5&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(FRONT SEAT &REAR SEAT),BLACK/DK.CHESTNUT,TRIM4#; HIGH GRADE PACKAGE FOR ADV&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER,BLACK/DK.CHESTNUT,TRIM4#

72868ACOVER, CENTER ARMREST HINGE

main72868-60030-C0i202402

BLACK,TRIM2#; BLACK,TRIM2#,4#

72996HCOVER, REAR SEATBACK

main72996-60280-C0×2i202402

BLACK,TRIM2#; BLACK,TRIM2#,4#

72996JCOVER, REAR SEATBACK, NO.2

main72996-60290-C0i202402

BLACK,TRIM2#; BLACK,TRIM2#,4#

79103BFRAME SUB-ASSY, NO.1 SEATBACK, RH

main71017-60B70i202402

79175FPAD, NO.1 SEATBACK, RH

main71651-60750i202402

main71507-60350i202402

HIGH GRADE PACKAGE FOR ADV&FIRST EDITION PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER(FOR SPECIAL EDITION); HIGH GRADE PACKAGE FOR ADV&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER

main71507-60360i202402

HIGH GRADE PACKAGE FOR ADV&FIRST EDITION PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&REAR SEAT-6:4 TUMBLE & 5:5&SEAT COVER MATERIAL-LEATHER(FOR SPECIAL EDITION)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT); HIGH GRADE PACKAGE FOR ADV&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&REAR SEAT-6:4 TUMBLE & 5:5&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(FRONT SEAT &REAR SEAT)

85867DBLOWER, NO.1 SEATBACK CLIMATE CONTROL(FOR RH SEAT)

main85867-60090i202402

HIGH GRADE PACKAGE FOR ADV&FIRST EDITION PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&REAR SEAT-6:4 TUMBLE & 5:5&SEAT COVER MATERIAL-LEATHER(FOR SPECIAL EDITION)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT); HIGH GRADE PACKAGE FOR ADV&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&REAR SEAT-6:4 TUMBLE & 5:5&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(FRONT SEAT &REAR SEAT)

87530HEATER ASSY, REAR NO.1 SEATBACK, LH

main87530-60090i202402

HIGH GRADE PACKAGE FOR ADV&FIRST EDITION PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&REAR SEAT-6:4 TUMBLE & 5:5&SEAT COVER MATERIAL-LEATHER(FOR SPECIAL EDITION)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT); HIGH GRADE PACKAGE FOR ADV&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&REAR SEAT-6:4 TUMBLE & 5:5&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(FRONT SEAT &REAR SEAT)

87530AHEATER ASSY, REAR NO.1 SEATBACK, RH

main87530-60090i202402

HIGH GRADE PACKAGE FOR ADV&FIRST EDITION PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&REAR SEAT-6:4 TUMBLE & 5:5&SEAT COVER MATERIAL-LEATHER(FOR SPECIAL EDITION)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT); HIGH GRADE PACKAGE FOR ADV&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&REAR SEAT-6:4 TUMBLE & 5:5&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(FRONT SEAT &REAR SEAT)

7889960070BOLT, FRONT SEAT

main78899-60070

9010506352

main90105-06352

9010510361

main90105-10361

9020612064

main90206-12064

9046710167

main90467-10167

9155201225

main91552-01225

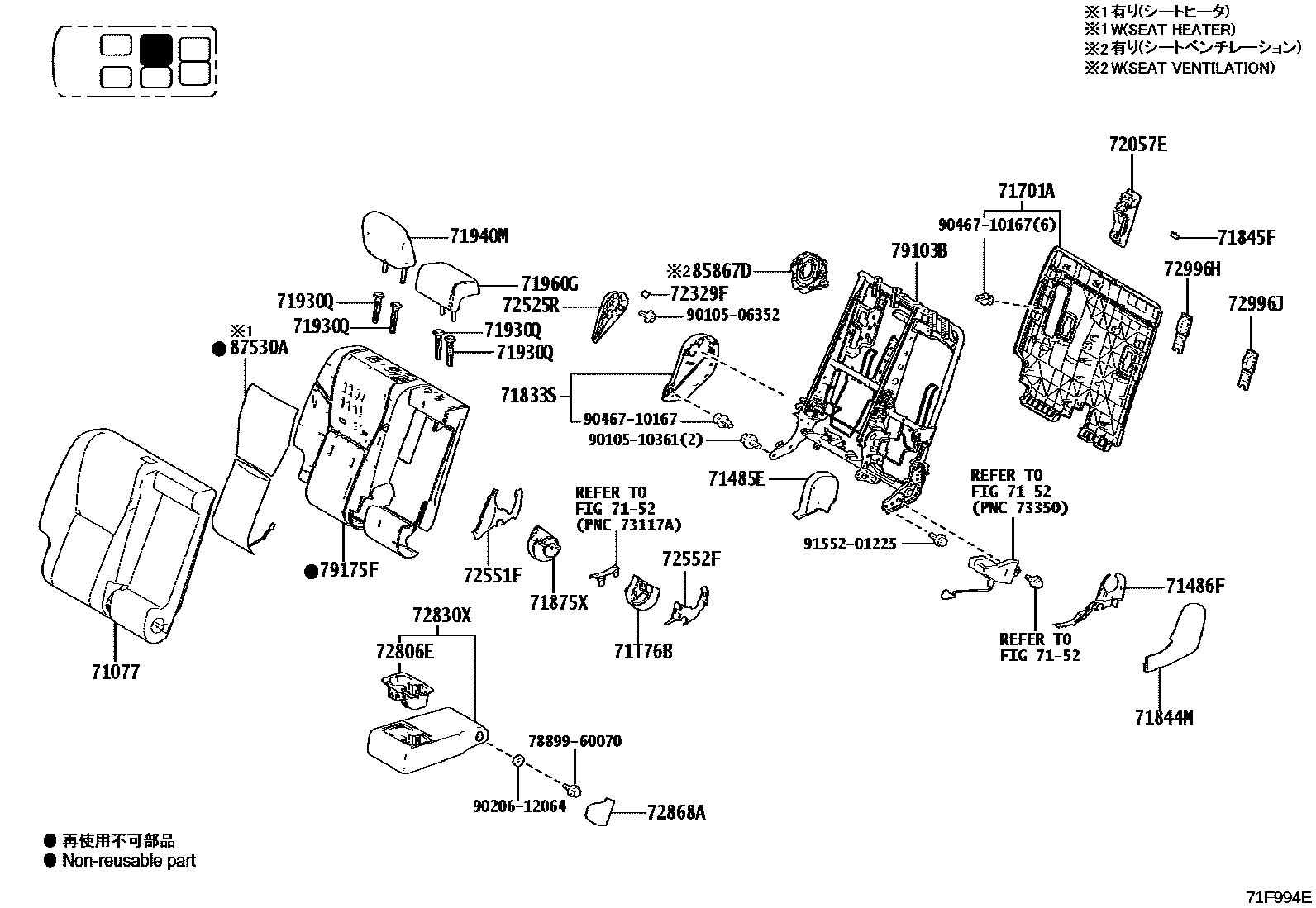

REAR SEAT & SEAT TRACK
