71051DSPRING SUB-ASSY, FRONT SEAT CUSHION

main71051-47090×2i202402

71071COVER SUB-ASSY, FRONT SEAT CUSHION, RH

main71071-60U90-C1supersedes 71071-60U80-C4i202402

SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM2#

main71071-60V50-C5supersedes 71071-60V00-C4i202402

HIGH GRADE PACKAGE FOR ADV&FIRST EDITION PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER(FOR SPECIAL EDITION),BLACK,TRIM2#; HIGH GRADE PACKAGE FOR ADV&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71071-60V50-E4supersedes 71071-60V00-E4i202402

HIGH GRADE PACKAGE FOR ADV&FIRST EDITION PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER(FOR SPECIAL EDITION),DK.CHESTNUT,TRIM4#; HIGH GRADE PACKAGE FOR ADV&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER,DK.CHESTNUT,TRIM4#

71511APAD, FRONT SEAT CUSHION, RH

main71511-60870i202402

main71501-60B80supersedes 71511-60890i202402

HIGH GRADE PACKAGE FOR ADV&FIRST EDITION PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER(FOR SPECIAL EDITION); HIGH GRADE PACKAGE FOR ADV&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER

7152SEAT BELT

→ Go to FIG 71-52

71811TSHIELD, FRONT SEAT CUSHION, RH

main71811-26510-C0i202402

BLACK,TRIM2#; BLACK,TRIM2#,4#

main71811-26500-C0supersedes 71811-26510-C0i202402

HIGH GRADE PACKAGE FOR ADV&FIRST EDITION PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER(FOR SPECIAL EDITION),BLACK,TRIM2#,4#; HIGH GRADE PACKAGE FOR ADV&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,4#

7181AAHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

main7181A-47010i202402

main7181A-42010i202402

HIGH GRADE PACKAGE FOR ADV&FIRST EDITION PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER(FOR SPECIAL EDITION); HIGH GRADE PACKAGE FOR ADV&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER

71848NCAP, FRONT SEAT ADJUSTER COVER, RH NO.1

main71848-42020-C0i202402

BLACK,TRIM2#; BLACK,TRIM2#,4#

71861KSHIELD, FRONT SEAT CUSHION, INNER RH

main71861-47070-C1i202402

BLACK,TRIM2#; BLACK,TRIM2#,4#

71873VSHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-42060i202402

71873WSHIELD, FRONT SEAT CUSHION, LOWER RH, OUTER

main71873-60220i202402

71877FCOVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT)

main71875-60330-C0i202402

BLACK,TRIM2#; BLACK,TRIM2#,4#

71877GCOVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)

main71875-42100-C0i202402

BLACK,TRIM2#; BLACK,TRIM2#,4#

72010AADJUSTER ASSY, FRONT SEAT, RH

main72010-60840i202402

main72010-60A00i202402

HIGH GRADE PACKAGE FOR ADV&FIRST EDITION PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER(FOR SPECIAL EDITION); HIGH GRADE PACKAGE FOR ADV&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER

72123JCOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-10100i202402

72125RCOVER, SEAT TRACK, UPPER REAR NO.1

main72125-47010×4i202402

main72125-47020×4i202402

HIGH GRADE PACKAGE FOR ADV&FIRST EDITION PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER(FOR SPECIAL EDITION); HIGH GRADE PACKAGE FOR ADV&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER

72127GCOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72127-60150i202402

72137SCOVER, SEAT TRACK BRACKET, OUTER REAR RH

main72137-47060i202402

72157GCOVER, SEAT TRACK BRACKET, INNER REAR RH

main72157-47080i202402

72211KHANDLE, SEAT TRACK ADJUSTING

main72211-60240i202402

72265TCOVER, SEAT TRACK UPPER RAIL

main72265-47010×4i202402

main72265-47020×4i202402

HIGH GRADE PACKAGE FOR ADV&FIRST EDITION PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER(FOR SPECIAL EDITION); HIGH GRADE PACKAGE FOR ADV&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER

72494AHANDLE, FRONT SEAT VERTICAL ADJUSTER, RH

main72494-26020-C0i202402

BLACK,TRIM2#; BLACK,TRIM2#,4#

72498ECOVER, VERTICAL ADJUSTER BRACKET

main72498-42010i202402

72525MHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-26160-C0i202402

BLACK,TRIM2#; BLACK,TRIM2#,4#

72551WCOVER, RECLINING HINGE

main72551-47030-C1i202402

BLACK,TRIM2#; BLACK,TRIM2#,4#

739F0AAIRBAG ASSY, FRONT SEAT CUSHION, RH

main739F0-12030i202402

main739F0-78040supersedes 739F0-42010i202402

HIGH GRADE PACKAGE FOR ADV&FIRST EDITION PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER(FOR SPECIAL EDITION); HIGH GRADE PACKAGE FOR ADV&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85801HBLOWER SUB-ASSY, SEAT CUSHION CLIMATE, RH

main85801-42040supersedes 85801-42030i202402

HIGH GRADE PACKAGE FOR ADV&FIRST EDITION PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER(FOR SPECIAL EDITION); HIGH GRADE PACKAGE FOR ADV&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER

87511CHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-60790supersedes 87510-60840i202402

HIGH GRADE PACKAGE FOR ADV&FIRST EDITION PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER(FOR SPECIAL EDITION); HIGH GRADE PACKAGE FOR ADV&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT COVER MATERIAL-LEATHER

main87510-60830i202402

SEAT HEATER-WITH(FRONT SEAT)

9014810007

main90148-10007

9098012373

main90980-12373

9155380514

main91553-80514

9356054012

main93560-54012

9418560600

main94185-60600

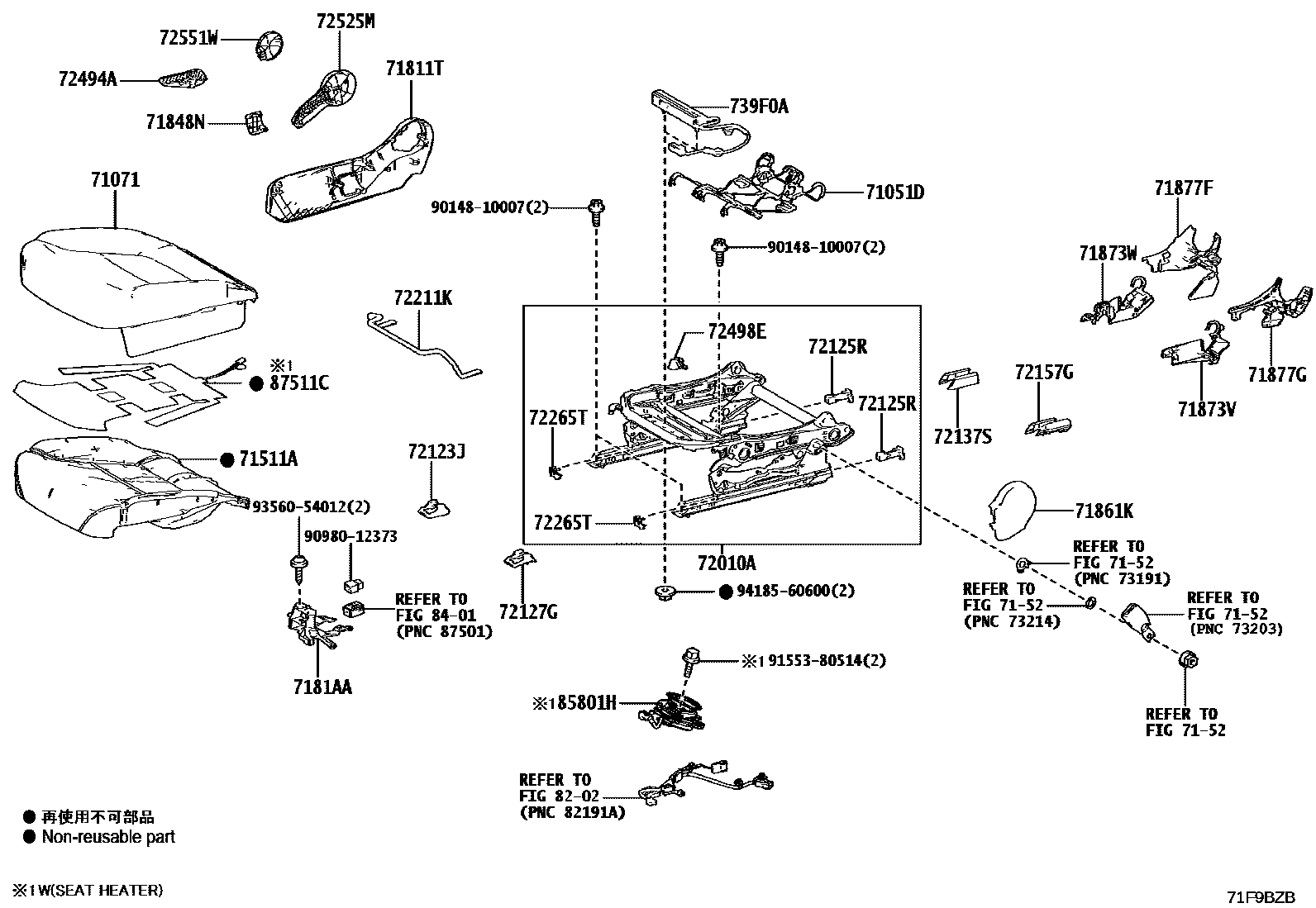

FRONT SEAT & SEAT TRACK
