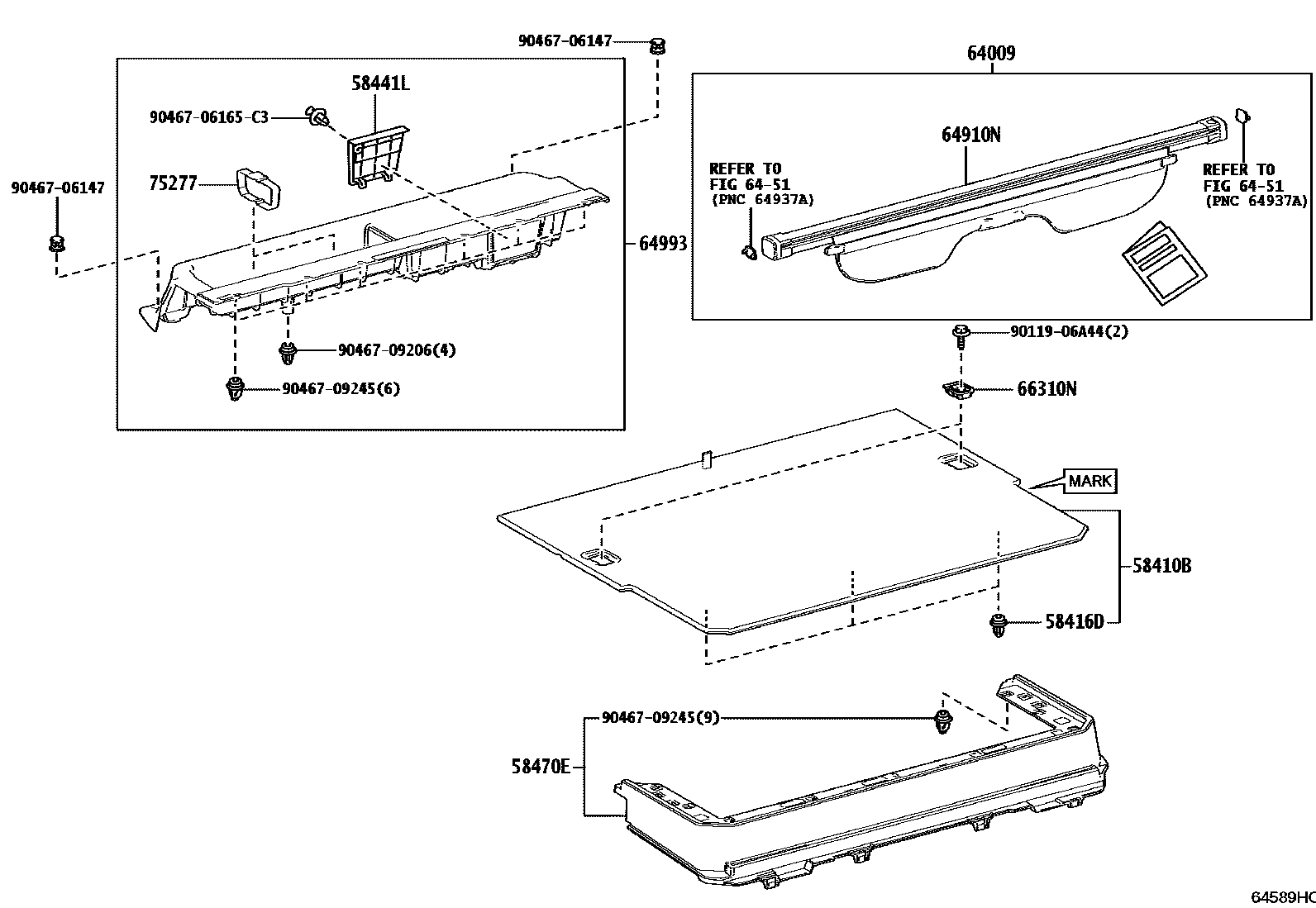

DECK BOARD & DECK TRIM COVER

0001 1REAR SEAT(6:4 TUMBLE SEAT) 0002 1REAR SEAT(6:4 TUMBLE & 5:5)

58410BBOARD ASSY, DECK

main58410-60080-C2iTJH250..A; TJH250..U202402

BLACK,TRIM2#,4#,MARK=58410-60080; BLACK,TRIM2#,MARK=58410-60080

main58410-60120-C2iTJH250..A; TJH250..U202402

BLACK,TRIM2#,4#,MARK=58410-60120; BLACK,TRIM2#,MARK=58410-60120

main58410-60070-C2supersedes 58410-60120-C2iTJH250..A202402

REAR SEAT-6:4 TUMBLE & 5:5,BLACK,TRIM2#,4#,MARK=58410-60070

main58410-60110-C2supersedes 58410-60120-C2iTJH250..A202402

REAR SEAT-6:4 TUMBLE & 5:5,BLACK,TRIM2#,4#,MARK=58410-60110

58416DCLIP, REAR FLOOR BOARD

main90467-10161×3iTJH250202402

58441LCOVER, BATTERY SERVICE HOLE

main58441-60120-C0iTJH250202402

BLACK

58470EBOARD ASSY, REAR FLOOR, NO.1

main58470-60020-C0iTJH250..A; TJH250..U202402

BLACK,TRIM2#; BLACK,TRIM2#,4#

main58470-60010-C0supersedes 58470-60020-C0iTJH250..A202402

REAR SEAT-6:4 TUMBLE & 5:5,BLACK,TRIM2#,4#

64009TONNEAU COVER SET

main64009-60010-C0iTJH250..A; TJH250..U202402-202509

TONNEAU COVER-WITH,BLACK,TRIM2#; TONNEAU COVER-WITH,BLACK,TRIM2#,4#

6451INSIDE TRIM BOARD

→ Go to FIG 64-51

64910NCOVER ASSY, TONNEAU

main64910-60290iTJH250202402-202509

TONNEAU COVER-WITH

64993BOX, DECK FLOOR, REAR

main64991-60040-C0iTJH250202402

BLACK

main64993-60010iTJH250..A202402

REAR SEAT-6:4 TUMBLE & 5:5

66310NHOOK ASSY, ROPE

main66310-30011-C1×2iTJH250..A; TJH250..U202402

BLACK,TRIM2#; BLACK,TRIM2#,4#

75277BAND, TOOL, NO.1

main64279-60030×2iTJH250; TJH250..A202402

REAR SEAT-6:4 TUMBLE & 5:5

9011906A44

main90119-06A44

9046706147

main90467-06147

9046706165C3

main90467-06165C3

9046709206

main90467-09206

9046709245

main90467-09245

15 parts on this diagram · 2 diagrams in section
