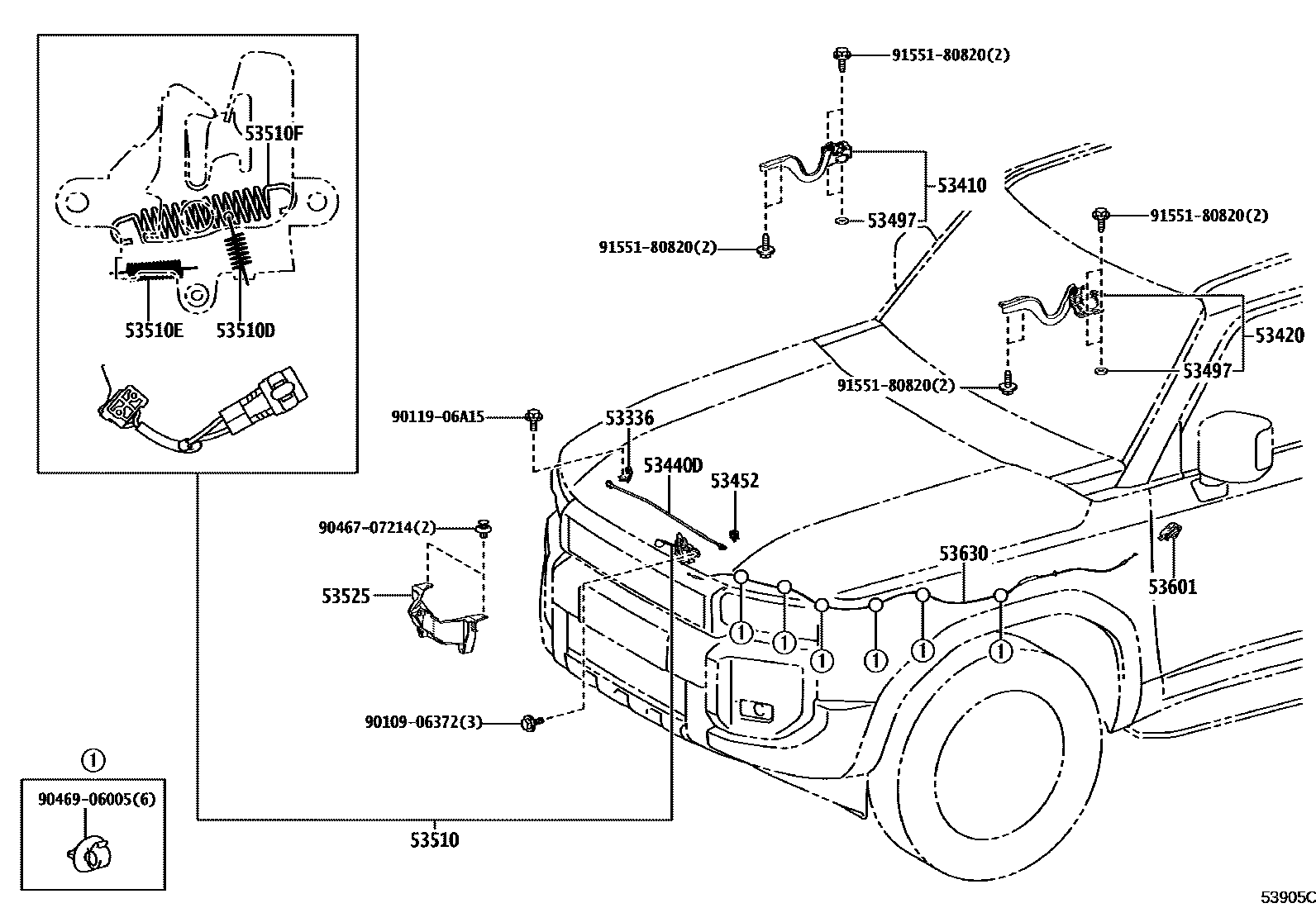

HOOD LOCK & HINGE

53336BRACKET, HOOD STAY, RH

main53336-60050iTJH250202402

53410HINGE ASSY, HOOD, RH

main53410-60270iTJH250202402

53420HINGE ASSY, HOOD, LH

main53420-60210iTJH250202402

53440DSUPPORT ASSY, HOOD

main53440-60100iTJH250202402

53452HOLDER, HOOD STAY

main53452-12130iTJH250202402

53497PAD, HOOD HINGE, NO.1

main53497-50020×4iTJH250202402

T=1.0

53510LOCK ASSY, HOOD

main53510-60540iTJH250202402

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iTJH250202402

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-09055iTJH250202402

WD=0.9,CW=21

53510FSPRING, TENSION(FOR HOOD LOCK)

main90506-16077iTJH250202402

WD=1.6,CW=12

53525PROTECTOR, HOOD LOCK RELEASE LEVER

main53525-60100iTJH250202402

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-62010-C0iTJH250..A; TJH250..U202402

BLACK,TRIM2#; BLACK,TRIM2#,4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-60250iTJH250202402

9010906372

main90109-06372

9011906A15

main90119-06A15

9046707214

main90467-07214

9046906005

main90469-06005

9155180820

main91551-80820

18 parts on this diagram · 1 diagram in section
