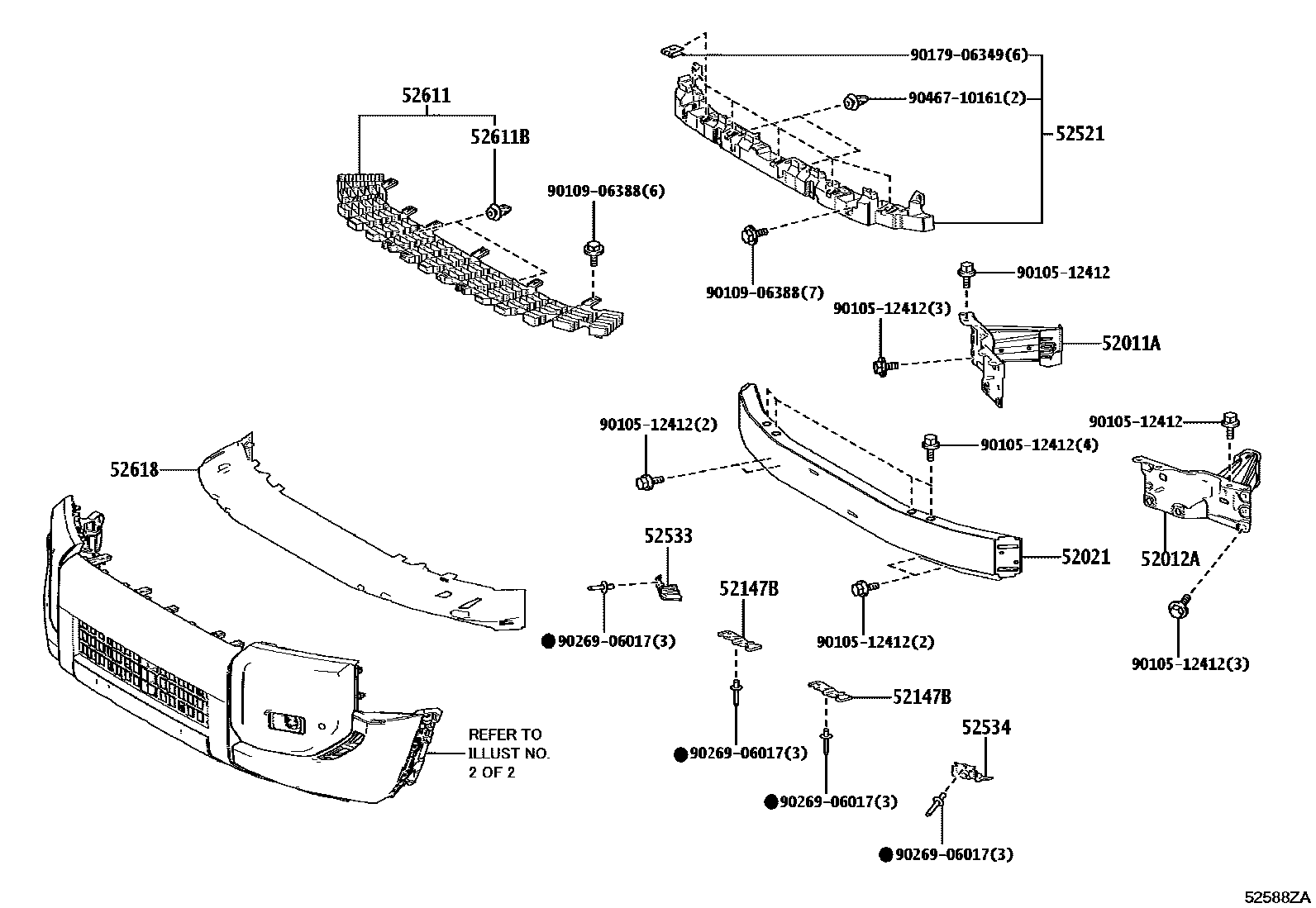

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-60040iTJH250202402

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-60040iTJH250202402

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-60250iTJH250202402

52147BBRACKET, FRONT BUMPER MOUNTING

main52147-60140×2iTJH250202402

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-60240iTJH250202402

52533BRACKET, FRONT BUMPER RETAINER, NO.1

main52533-60070iTJH250202402

52534BRACKET, FRONT BUMPER RETAINER, NO.2

main52534-60070iTJH250202402

52611ABSORBER, FRONT BUMPER ENERGY

main52611-60190iTJH250202402

52611BCLIP, FRONT BUMPER ENERGY ABSORBER

main90467-09232×2iTJH250202402

52618ABSORBER, FRONT BUMPER, LOWER

main52618-60080iTJH250202402

9010512412

main90105-12412

9010906388

main90109-06388

9017906349

main90179-06349

9026906017

main90269-06017

9046710161

main90467-10161

15 parts on this diagram · 2 diagrams in section
