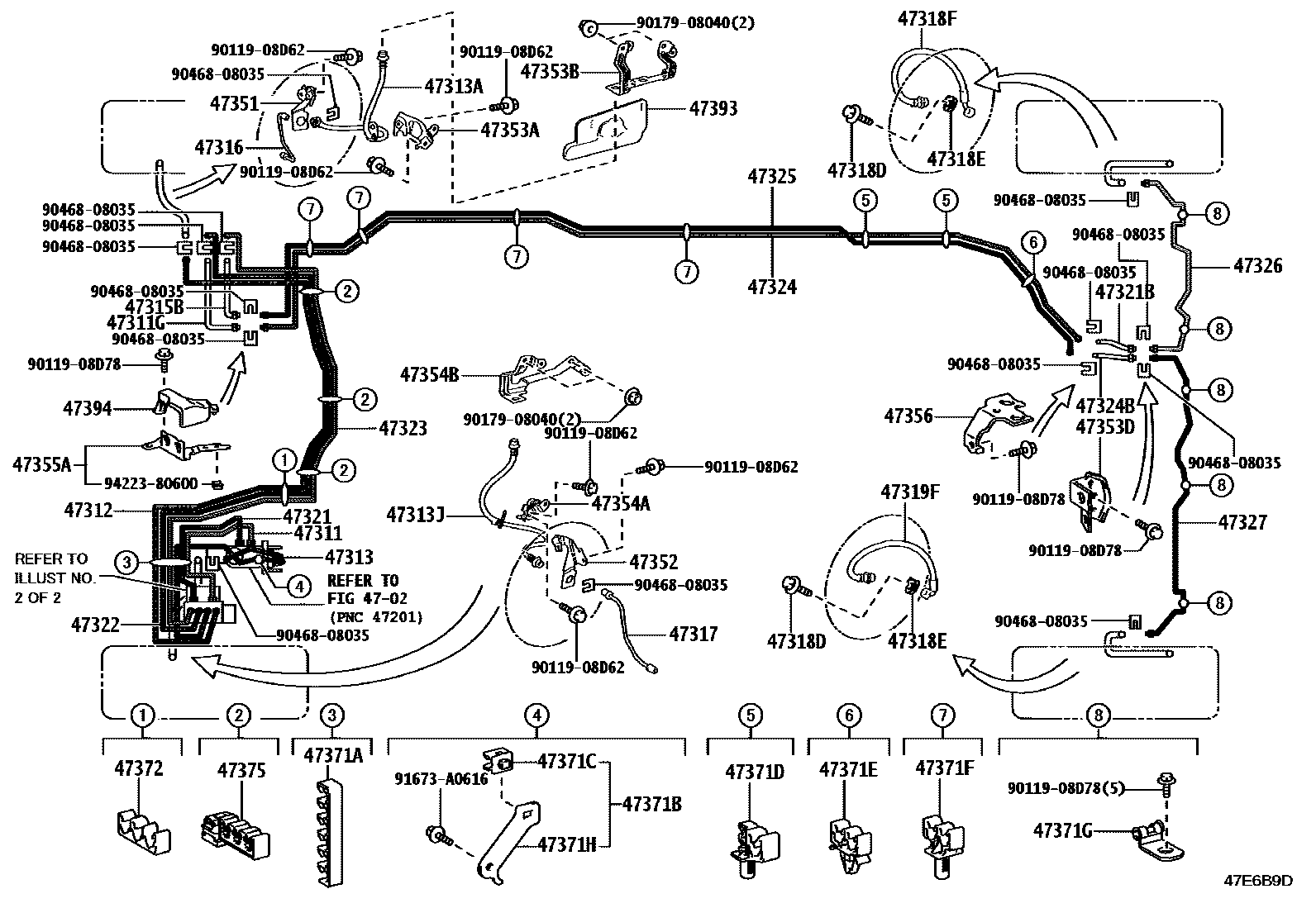

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE ACTUATOR

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-60780iTJH250202402

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main90947-02K60iTJH250202402

47312TUBE, FRONT BRAKE, NO.2

main47312-60C30iTJH250202402

47313TUBE, FRONT BRAKE, NO.3

main47313-60610iTJH250202402

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02K45iTJH250202402

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02K46iTJH250202402

47315BHOSE, FLEXIBLE(FOR BRAKE TUBE)

main90947-02K61iTJH250202402

47316TUBE, FRONT BRAKE, NO.6

main47316-60730iTJH250202402

47317TUBE, FRONT BRAKE, NO.7

main47317-60230iTJH250202402

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iTJH250202402

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iTJH250202402

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02J69iTJH250202402

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02J70iTJH250202402

47321TUBE, REAR BRAKE, NO.1

main47321-60510iTJH250202402

47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02J73iTJH250202402

47322TUBE, REAR BRAKE, NO.2

main47322-60E30iTJH250202402

47323TUBE, REAR BRAKE, NO.3

main47323-60D60iTJH250202402

47324TUBE, REAR BRAKE, NO.4

main47324-60540iTJH250202402

47324BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)

main90947-02J81iTJH250202402

47325TUBE, REAR BRAKE, NO.5

main47325-60500iTJH250202402

47326TUBE, REAR BRAKE, NO.6

main47326-60420iTJH250202402

47327TUBE, REAR BRAKE, NO.7

main47327-60260iTJH250202402

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-60400iTJH250202402

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-60250iTJH250202402

47353ABRACKET, FLEXIBLE HOSE, FRONT RH NO.2

main47358-60020iTJH250202402

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47353-60170iTJH250202402

47353DBRACKET, FLEXIBLE HOSE, NO.7

main47357-60010iTJH250202402

47354ABRACKET, FLEXIBLE HOSE, FRONT LH NO.2

main47359-60020iTJH250202402

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47354-60200iTJH250202402

47355ABRACKET, FLEXIBLE HOSE, NO.5

main47355-60280iTJH250202402

47356BRACKET, FLEXIBLE HOSE, NO.6

main47356-60050iTJH250202402

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01E76iTJH250202402

47371BCLAMP, BRAKE TUBE, NO.6

main90949-04078iTJH250202402

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01D56iTJH250202402

47371DCLAMP, BRAKE TUBE, NO.8

main77285-60J40×2iTJH250202402

47371ECLAMP, BRAKE TUBE, NO.9

main90469-07019iTJH250202402

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01E73×4iTJH250202402

47371GCLAMP, BRAKE TUBE, NO.11

main90461-08639×5iTJH250202402

47371HCLAMP, BRAKE TUBE, NO.12

main90949-02181iTJH250202402

47372CLAMP, BRAKE TUBE, NO.2

main90464-00857iTJH250202402

47375CLAMP, BRAKE TUBE, NO.5

main90949-01E71×3iTJH250202402

47393INSULATOR, BRAKE TUBE HEAT

main47393-60080iTJH250202402

47394INSULATOR, BRAKE TUBE HEAT, NO.2

main47394-60040iTJH250202402

9011908D62

main90119-08D62

9011908D78

main90119-08D78

9017908040

main90179-08040

9046808035

main90468-08035

91673A0616

main91673-A0616

9422380600

main94223-80600

50 parts on this diagram · 2 diagrams in section
