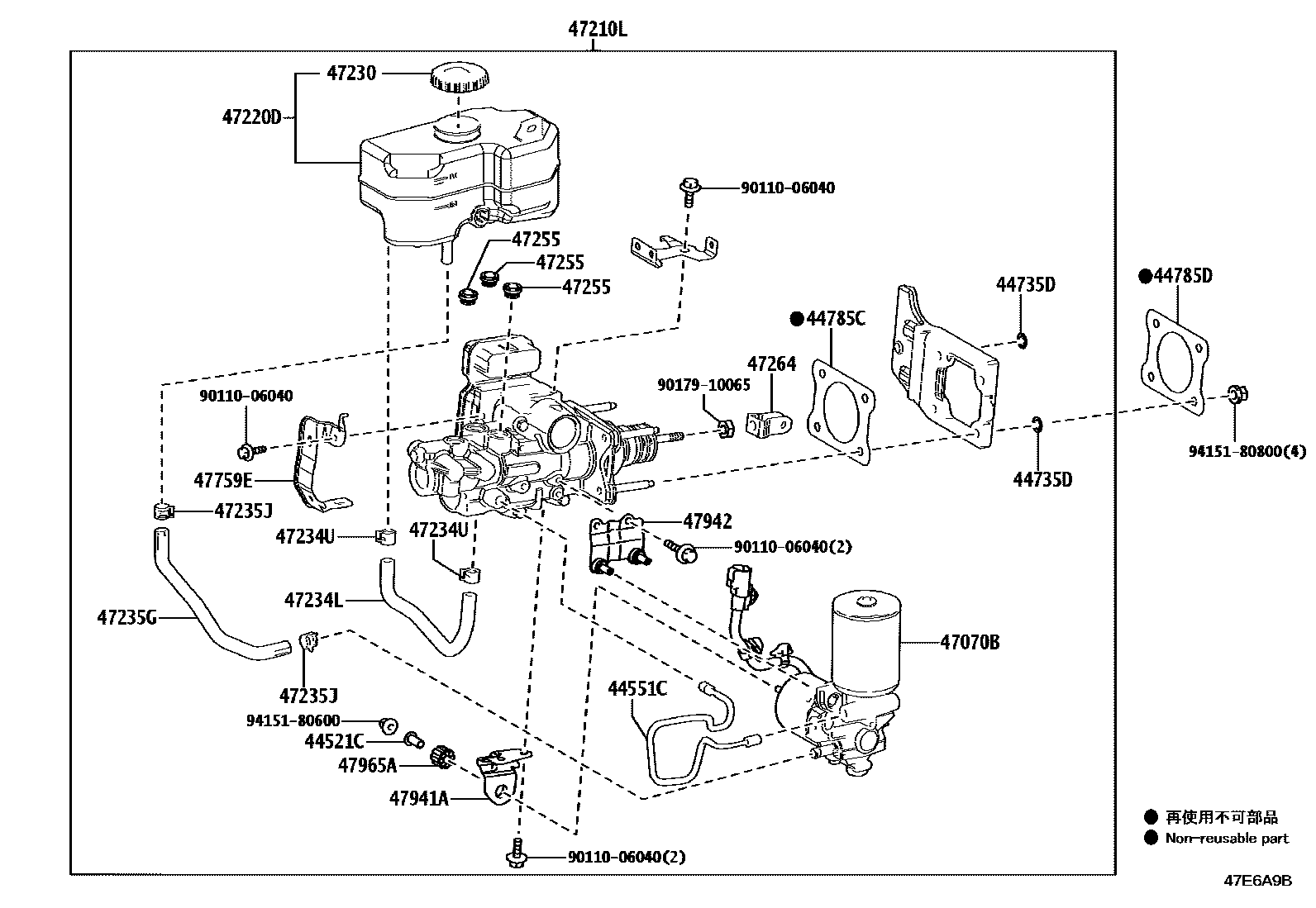

BRAKE MASTER CYLINDER
44521CCOLLAR, BRAKE ACTUATOR CASE
44551CTUBE, BRAKE ACTUATOR, NO.1
44735DRING, BOOSTER BRACKET STOPPER
44785CGASKET, BRAKE BOOSTER
44785DGASKET, BRAKE MASTER CYLINDER
47070BPUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR
47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER
47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47234LHOSE, RESERVOIR, NO.1
47234UCLIP(FOR RESERVOIR HOSE NO.1)
47235GHOSE, RESERVOIR, NO.2
47235JCLIP(FOR RESERVOIR HOSE NO.2)
47255GROMMET, MASTER CYLINDER RESERVOIR
47264CLEVIS, MASTER CYLINDER PUSH ROD
47759EBRACKET, WIRE CLAMP, NO.2
47941ABRACKET, BRAKE POWER SUPPLY, NO.1
47942BRACKET, BRAKE POWER SUPPLY, NO.2
47965ABUSH, BRAKE BOOSTER PUMP
9011006040
main90110-06040
9017910065
main90179-10065
9415180600
main94151-80600
9415180800
main94151-80800
23 parts on this diagram · 1 diagram in section
