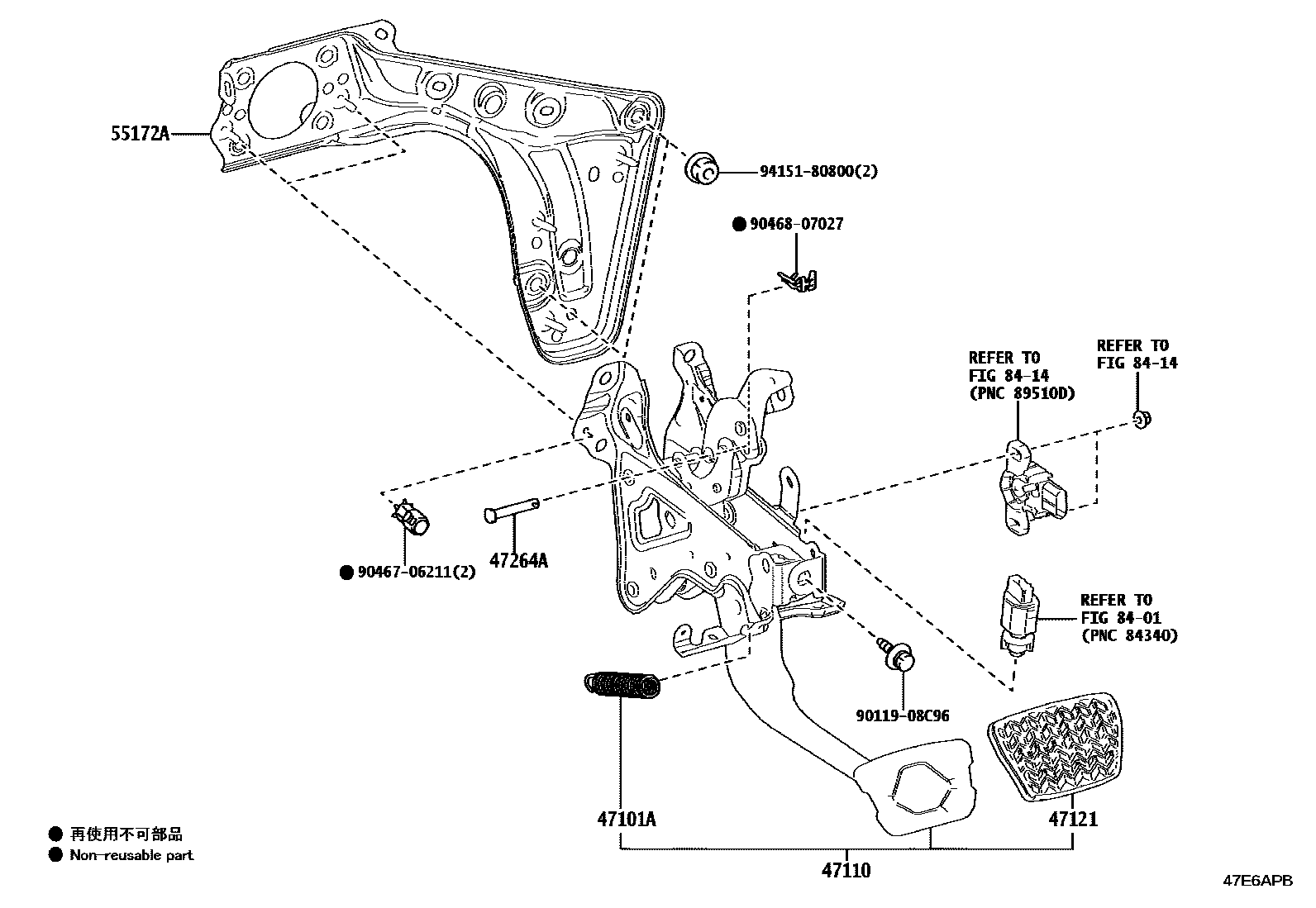

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-23028iTJH250202402

47110SUPPORT ASSY, BRAKE PEDAL

main47110-60821iTJH250202402

47121PAD, BRAKE PEDAL

main47121-62010iTJH250202402

47264APIN(FOR PUSH ROD)

main90240-08082iTJH250202402

55172ABASE, BRAKE PEDAL SUPPORT

main55172-60070iTJH250202402

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9011908C96

main90119-08C96

9046706211

main90467-06211

9046807027

main90468-07027

9415180800

main94151-80800

11 parts on this diagram · 1 diagram in section
