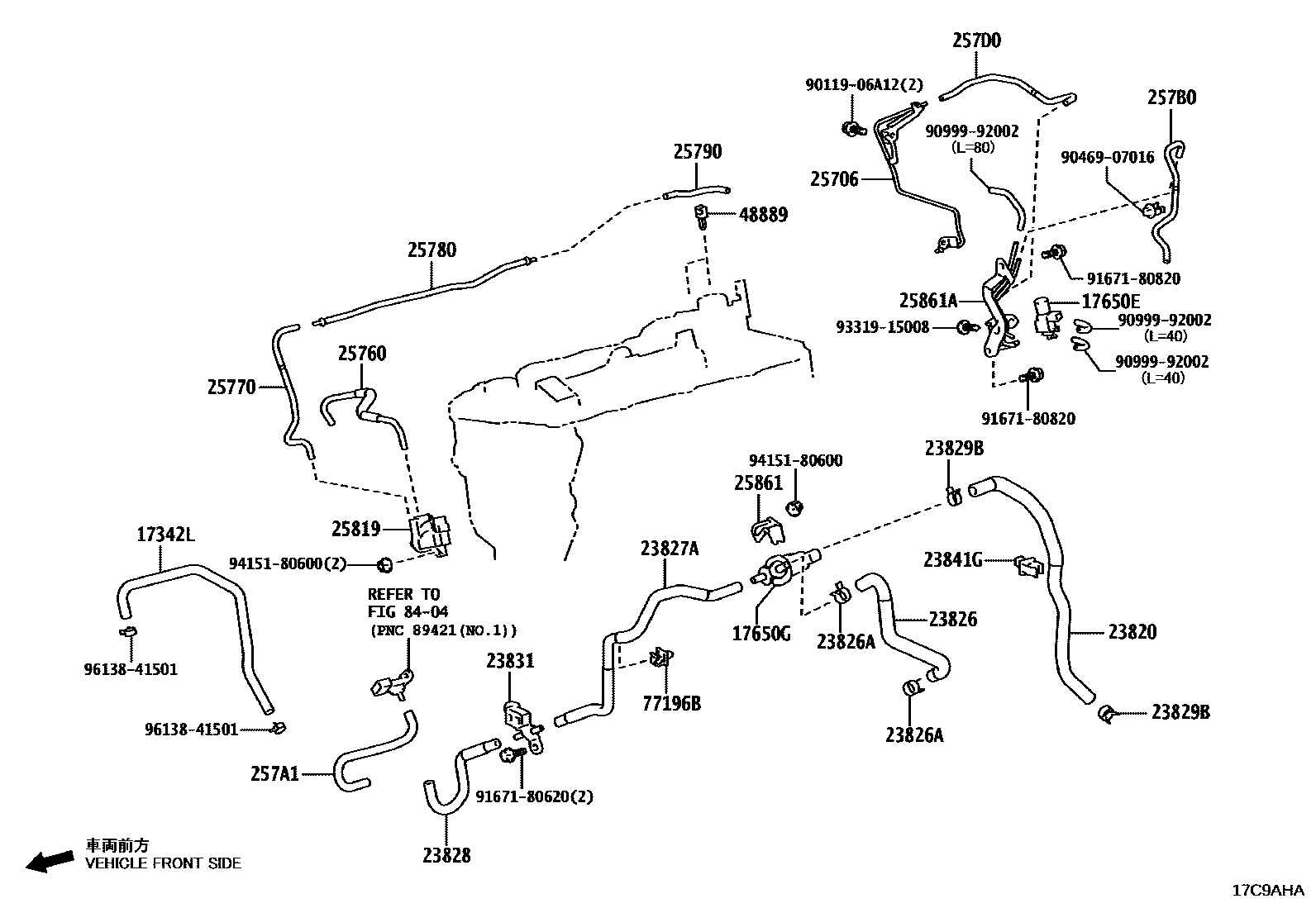

VACUUM PIPING
17342LHOSE, AIR, NO.2
17650EVALVE, VACUUM SWITCHING
17650GVALVE, DUTY VACUUM SWITCHING
23820HOSE ASSY, FUEL VAPOR FEED
23826HOSE, FUEL VAPOR FEED, NO.1
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
23827AHOSE, FUEL VAPOR FEED, NO.2
23828HOSE, FUEL VAPOR FEED, NO.3
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
23831CONNECTOR, FUEL VAPOR FEED, NO.1
23841GCLAMP, FUEL HOSE
25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25760HOSE ASSY, VACUUM TRANSMITTING
25770HOSE ASSY, VACUUM TRANSMITTING, NO.2
25780HOSE ASSY, VACUUM TRANSMITTING, NO.3
25790HOSE ASSY, VACUUM TRANSMITTING, NO.4
257A1HOSE, VACUUM TRANSMITTING, NO.5
257B0HOSE ASSY, VACUUM TRANSMITTING, NO.6
257D0HOSE ASSY, VACUUM TRANSMITTING, NO.8
25819VALVE ASSY, VACUUM REGULATING
25861BRACKET, VACUUM SWITCHING VALVE
25861ABRACKET, VACUUM SWITCHING VALVE, NO.2
48889CLAMP, STABILIZER CONTROL TUBE
77196BCLAMP, EVAPORATION VENT TUBE, NO.1
8404ELECTRONIC FUEL INJECTION SYSTEM
9011906A12
main90119-06A12
9046907016
main90469-07016
9099992002
main90999-92002
9167180620
main91671-80620
9167180820
main91671-80820
9331915008
main93319-15008
9415180600
main94151-80600
9613841501
main96138-41501
33 parts on this diagram · 1 diagram in section
