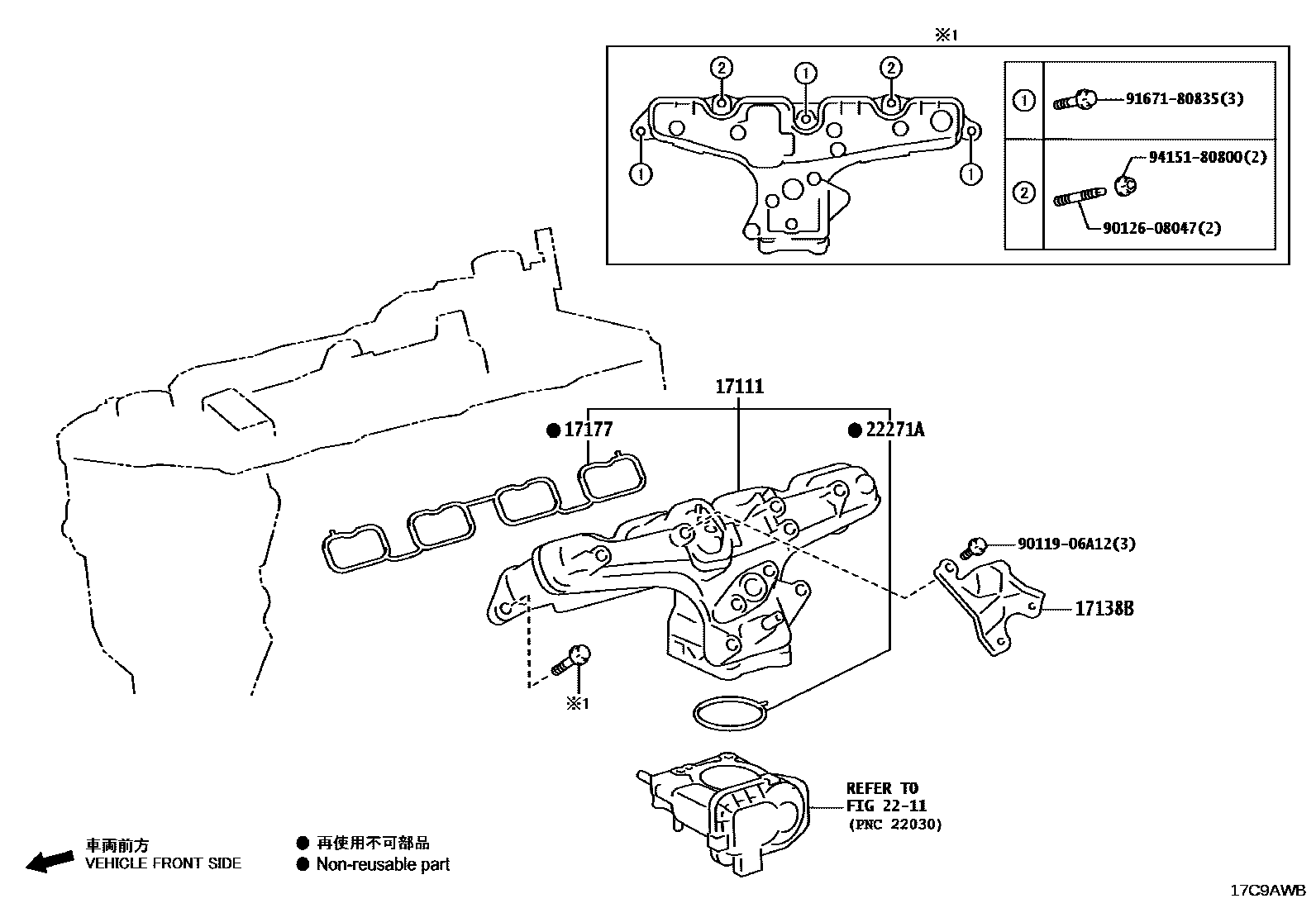

MANIFOLD

0001 1 0002 1 0003 1

17111MANIFOLD, INTAKE

main17120-25100iT24..TJH250202402

17138BSTAY, INTAKE MANIFOLD

main17138-25020iT24..TJH250202402

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-25040iT24..TJH250202402

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

22271AGASKET, THROTTLE BODY

main22271-25030iT24..TJH250202402

9011906A12

main90119-06A12

9012608047

main90126-08047

9167180835

main91671-80835

9415180800

main94151-80800

9 parts on this diagram · 3 diagrams in section
