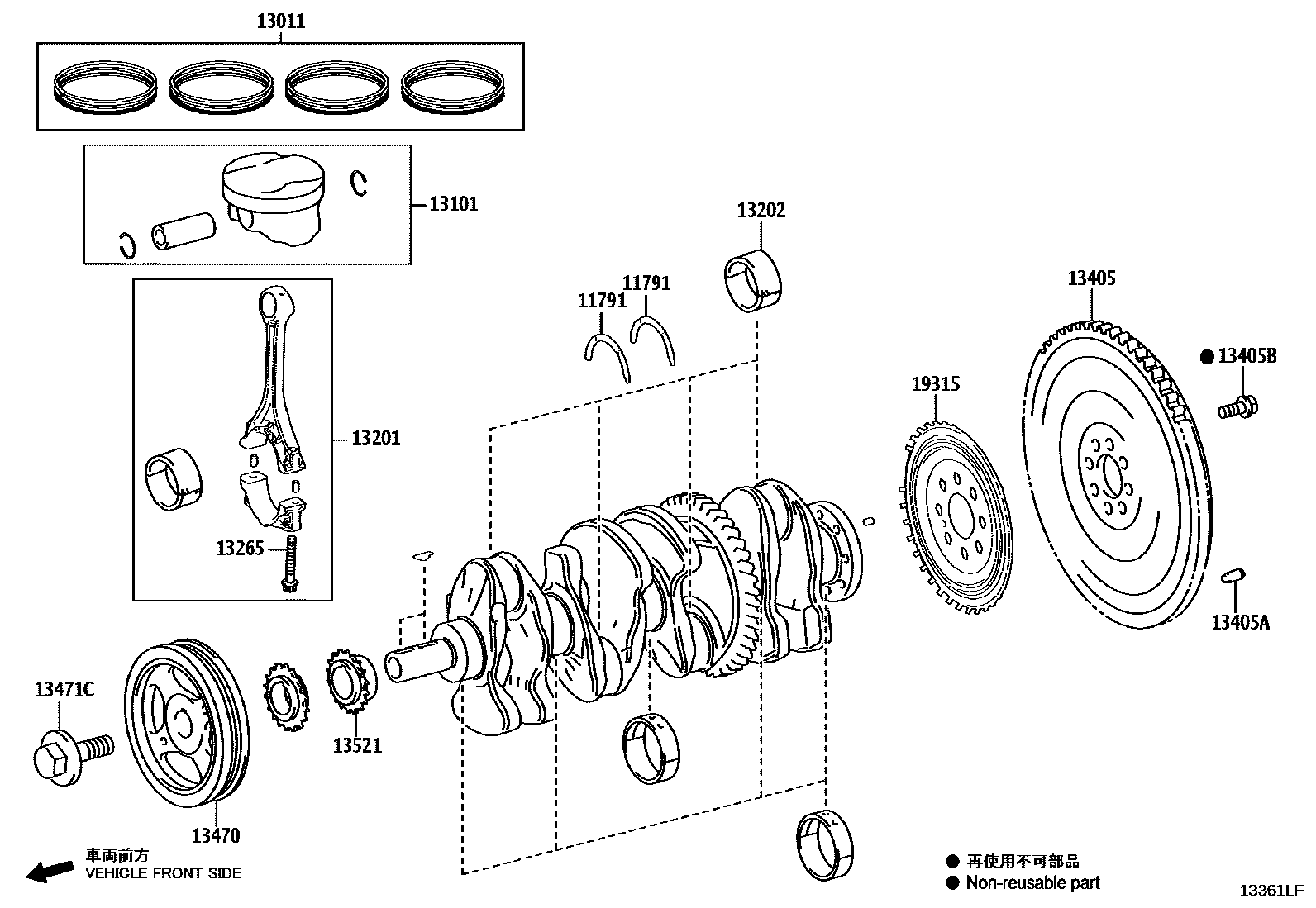

CRANKSHAFT & PISTON

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-25040×2iT24..TJH250202402

STD

13011RING SET, PISTON

main13011-15140iT24..TJH250202402

STD

13101PISTON SUB-ASSY, W/PIN

main13101-25050×4iT24..TJH250202402

STD

13201ROD SUB-ASSY, CONNECTING

main13201-29875-A0×4iT24..TJH250202402

MARK A,REFER REPAIR MANUAL

main13201-29875-B0×4iT24..TJH250202402

MARK B,REFER REPAIR MANUAL

main13201-29875-C0×4iT24..TJH250202402

MARK C,REFER REPAIR MANUAL

13202BEARING SET, CONNECTING ROD

main13041-25040-01×4iT24..TJH250202402

MARK 1,REFER REPAIR MANUAL

main13041-25040-02×4iT24..TJH250202402

MARK 2,REFER REPAIR MANUAL

main13041-25040-03×4iT24..TJH250202402

MARK 3,REFER REPAIR MANUAL

13265BOLT, CONNECTING ROD

main13265-25020×8iT24..TJH250202402

13405FLYWHEEL SUB-ASSY

main13405-25030iT24..TJH250202402

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120×3iT24..TJH250202402

L=18,OD=8

13405BBOLT, FLYWHEEL SETTING

main90105-12404×8iT24..TJH250202402

13470PULLEY ASSY, CRANKSHAFT

main13470-25070iT24..TJH250202402

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020iT24..TJH250202402

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-25030iT24..TJH250202402

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-25031iT24..TJH250202402

13 parts on this diagram · 1 diagram in section
