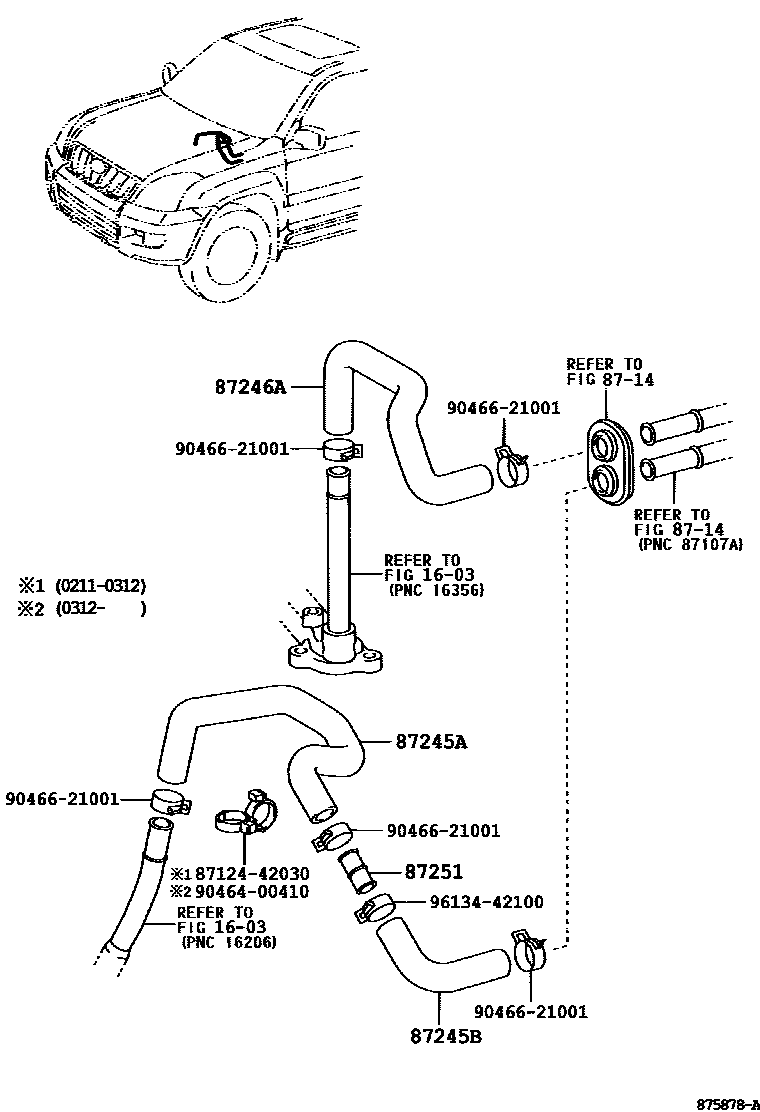

HEATING & AIR CONDITIONING - WATER PIPING

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87245-35A20iUZJ120200312-200410

main87245-35A21iUZJ120200411

main87245-3D510iUZJ120200211-200312

87245BHOSE, HEATER WATER, INLET B

main87245-3D520iUZJ120200211

87246AHOSE, HEATER WATER, OUTLET A

main87245-35A10iUZJ120200312-200410

main87245-35A11iUZJ120200411

main87245-3D420iUZJ120200211-200312

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-35020iUZJ120200211

8712442030CLAMP, HEATER

main87124-42030

9046400410

main90464-00410

9046621001

main90466-21001

9613442100

main96134-42100

10 parts on this diagram · 1 diagram in section
