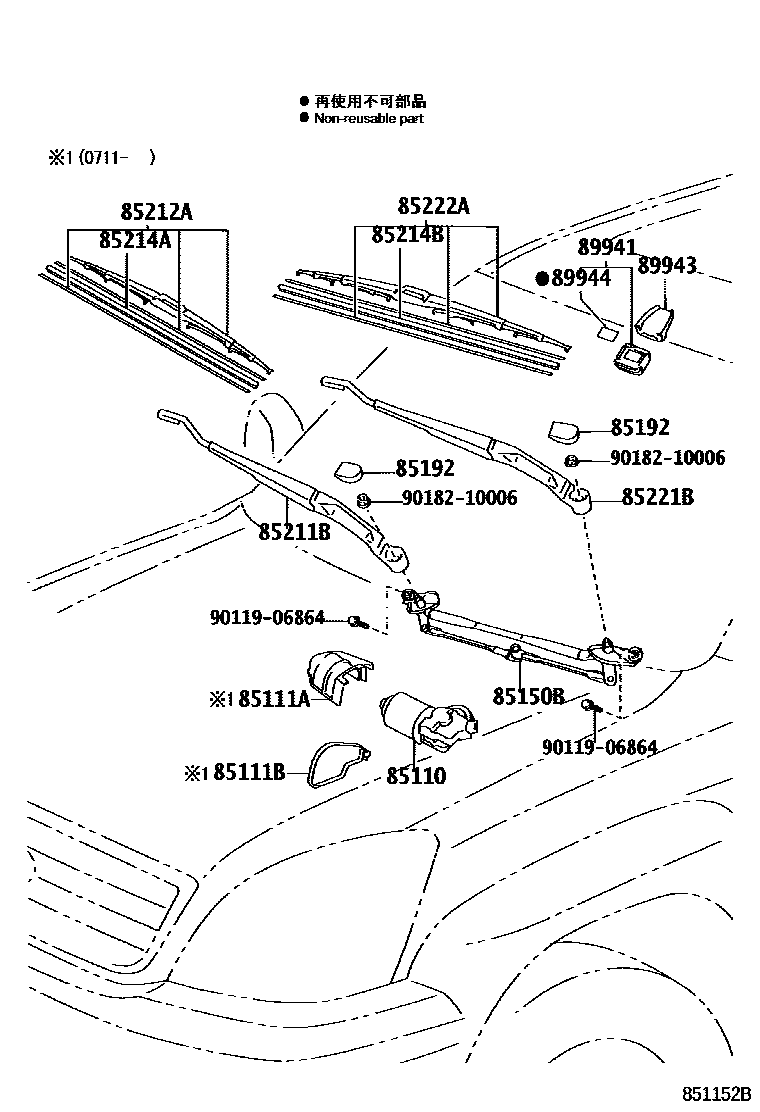

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-60360iUZJ120200211

85111ACOVER, FRONT WIPER MOTOR

main85111-60140iUZJ120200711

85111BCLAMP, FRONT WIPER MOTOR COVER

main85371-60040iUZJ120200711

85150BLINK ASSY, WIPER

main85150-60270iUZJ120200211

85192COVER, WINDSHIELD WIPER ARM

main85292-13010×2iUZJ120200211

85211BARM, FRONT WIPER, RH

main85211-60230iUZJ120200211

85212ABLADE, FR WIPER, RH

main85212-60190iUZJ120200211-200605

main85212-60191iUZJ120200606

85214ARUBBER, WIPER, RH

main85214-48030iUZJ120200211-200605

main85214-48031iUZJ120200606

85214BRUBBER, WIPER, LH

main85214-48010iUZJ120200211

85221BARM, FRONT WIPER, LH

main85221-60260iUZJ120200211

85222ABLADE, FR WIPER, LH

main85222-48040iUZJ120200211

89941SENSOR, RAIN

main89941-60050iUZJ120200211-200407

INTERMITTENT WIPER-WITH(RAIN SENSOR)

main89941-60051iUZJ120200408-200808

INTERMITTENT WIPER-WITH(RAIN SENSOR)

main89941-60052iUZJ120200809

INTERMITTENT WIPER-WITH(RAIN SENSOR)

89943COVER, RAIN SENSOR

main89943-60010iUZJ120200211

INTERMITTENT WIPER-WITH(RAIN SENSOR)

89944TAPE, RAIN SENSOR

main89944-50010iUZJ120200211

INTERMITTENT WIPER-WITH(RAIN SENSOR)

9011906864

main90119-06864

9018210006

main90182-10006

16 parts on this diagram · 1 diagram in section
