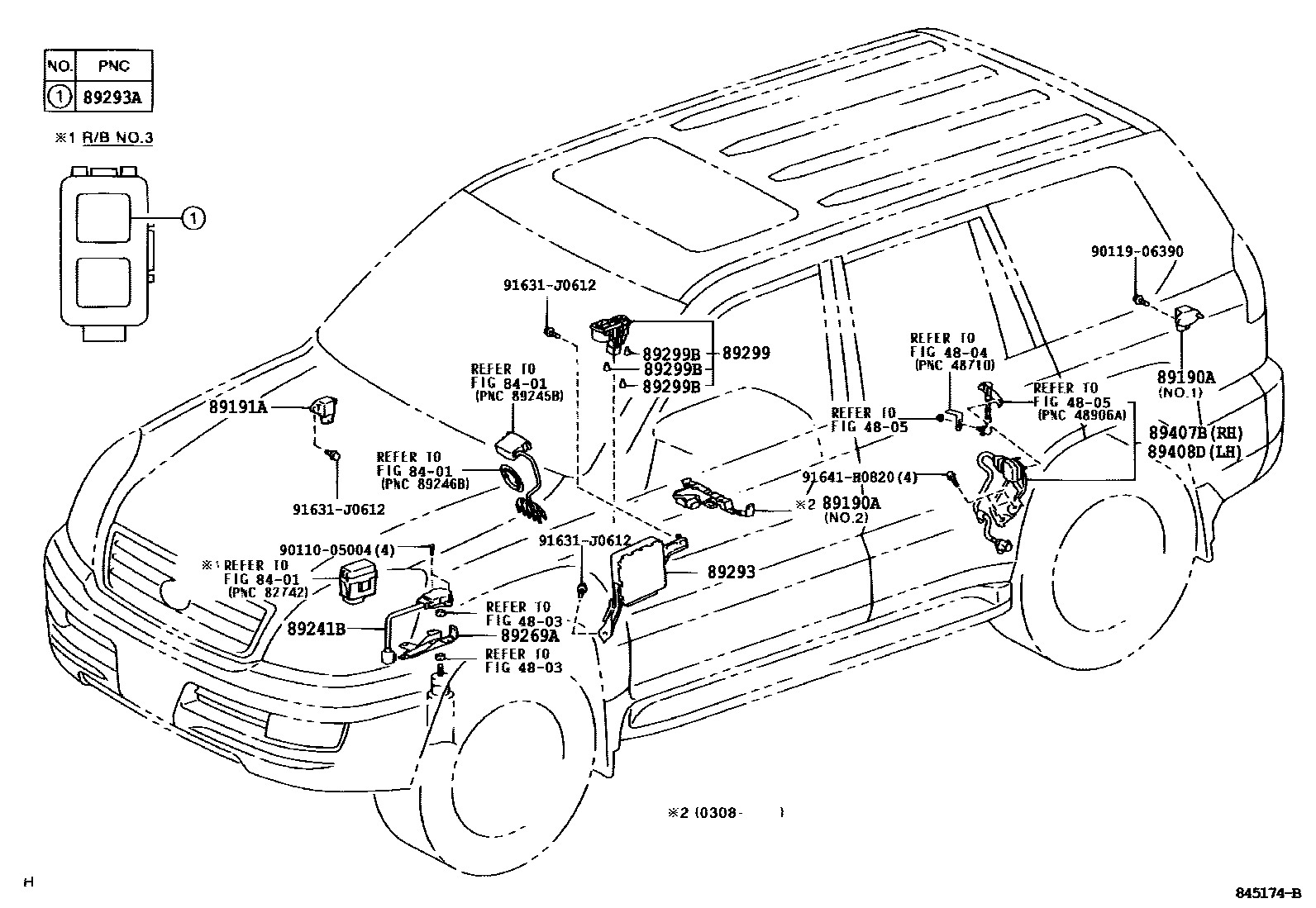

ELECTRONIC MODULATED SUSPENSION

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

4805HEIGHT CONTROL (AUTO-LEVELER)

→ Go to FIG 48-05

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89190ASENSOR ASSY, ACCELERATION

main89190-44010iUZJ120200211-200707

main89190-60030iUZJ120200707

main89190-60010iUZJ120200308

REAR SUSPENSION-W(AIR SUSPENSION & KINETIC SUSPENSION),NO.2

89191ASENSOR, ACCELERATION

main89191-30020iUZJ120200211-200707

main89191-50020iUZJ120200707

89241BACTUATOR, ABSORBER CONTROL

main89241-60010×2iUZJ120200211

89269ABRACKET, SUSPENSION CONTROL

main89269-60010iUZJ120200211

RH

main89269-60020iUZJ120200211

LH

89293COMPUTER, SUSPENSION CONTROL

main89293-60030iUZJ120200211-200311

main89293-60031iUZJ120200311-200409

main89293-60032iUZJ120200410-200706

main89293-60033iUZJ120200707

89293ARELAY, SUSPENSION CONTROL

main90987-02025iUZJ120200211-200508

89299SWITCH, SUSPENSION CONTROL

main89299-60020iUZJ120200211

89299BBULB(FOR SUSPENSION CONTROL SWITCH)

main90010-01039×3iUZJ120200211

89407BSENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH

main89407-60022iUZJ120200211

89408DSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

main89408-60011iUZJ120200211

9011005004

main90110-05004

9011906390

main90119-06390

91631J0612

main91631-J0612

91641H0820

main91641-H0820

18 parts on this diagram · 1 diagram in section
