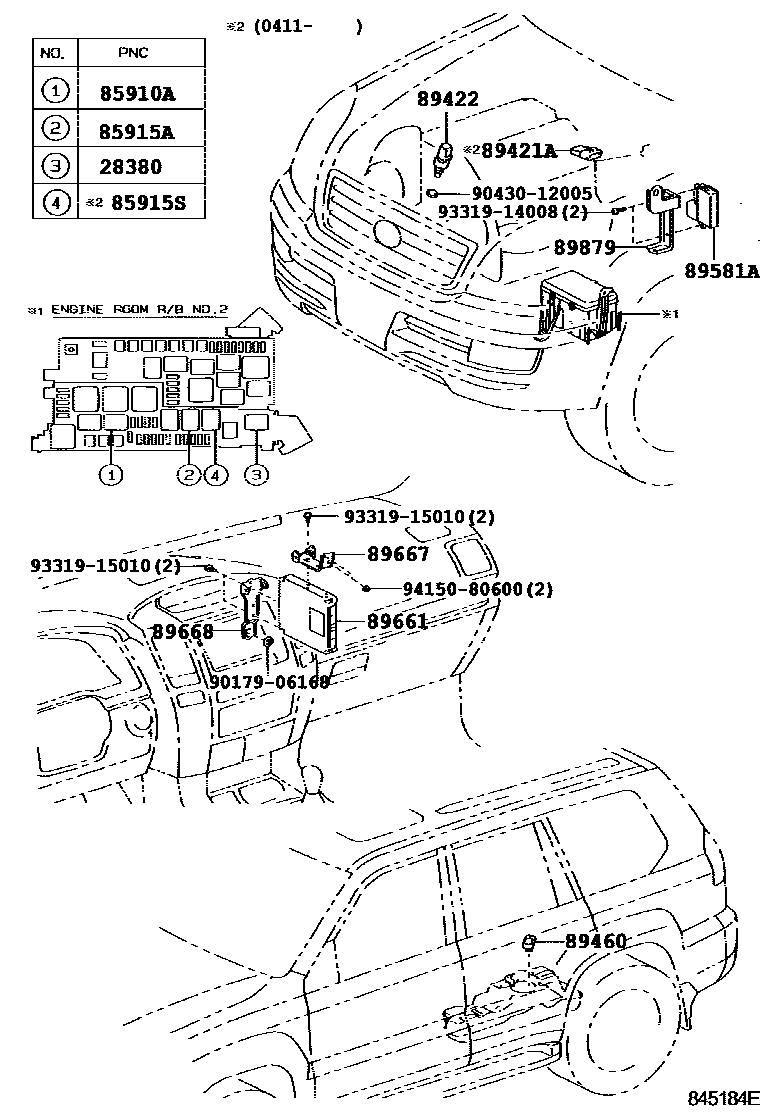

ELECTRONIC FUEL INJECTION SYSTEM
28380RELAY ASSY, FUEL PUMP
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
89421ASENSOR, TURBO PRESSURE
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89460SENSOR ASSY, VAPOR PRESSURE
89581ADRIVER, AIR INJECTION CONTROL
89661COMPUTER, ENGINE CONTROL
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89879BRACKET, INJECTOR DRIVER
9017906168
main90179-06168
9043012005
main90430-12005
9331914008
main93319-14008
9331915010
main93319-15010
9415080600
main94150-80600
17 parts on this diagram · 1 diagram in section
