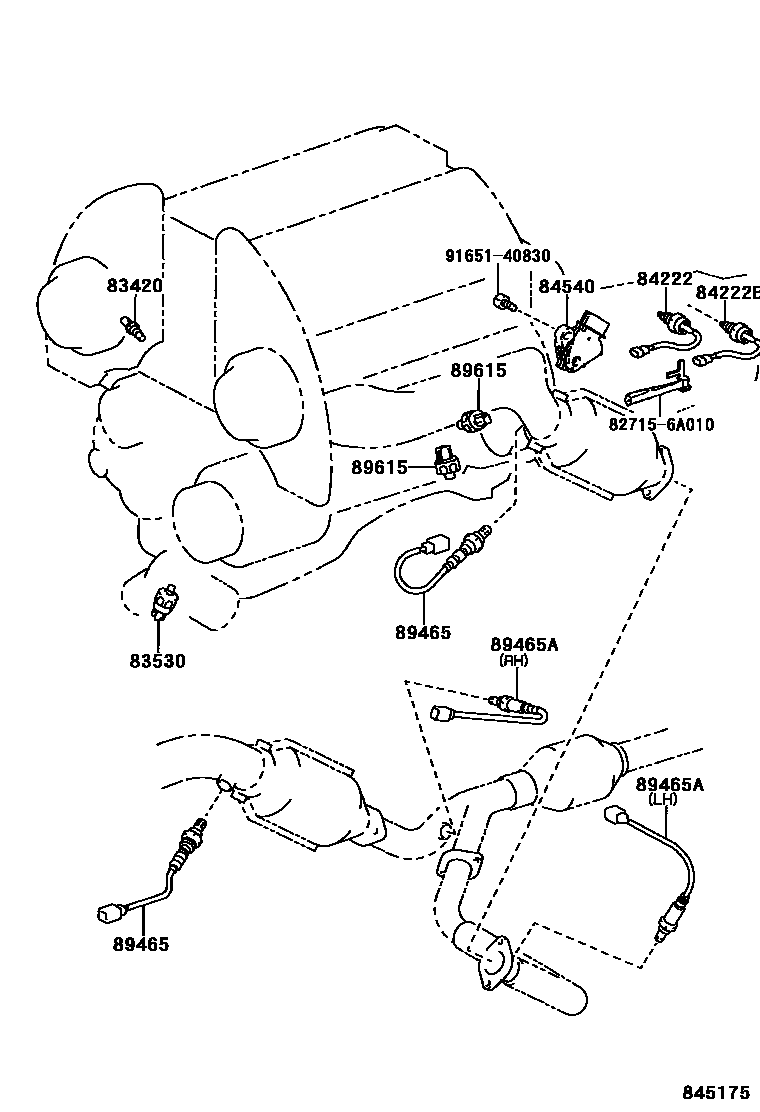

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM RELAY BLOCK 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1INSTRUMENT PANEL 0008 1IGNITION & COMBINATION SW 0009 1SEAT 0010 1DOOR,ROOF,FLOOR & BACK DOOR

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20040iUZJ120200211-200411

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iUZJ120200211-200908

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-35080iUZJ120200211-200908

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-35090iUZJ120200211-200908

84540SWITCH ASSY, NEUTRAL START

main84540-51010iUZJ120200211-200411

main84540-71010iUZJ120200411-200908

89465SENSOR, OXYGEN

main89465-60150iUZJ120200211-200411

89465ASENSOR, OXYGEN NO.2

main89465-35690iUZJ120200411-200908

RH & LH

main89465-60200iUZJ120200211-200411

LH

main89465-60250iUZJ120200211-200411

RH

89615SENSOR, KNOCK CONTROL

main89615-20090iUZJ120200411

main89615-52010iUZJ120200211-200411

827156A010BRACKET,WIRING HARNESS CLAMP

main82715-6A010

9165140830

main91651-40830

10 parts on this diagram · 10 diagrams in section
